EOS 46.U
Behind-the-bench sauna heater

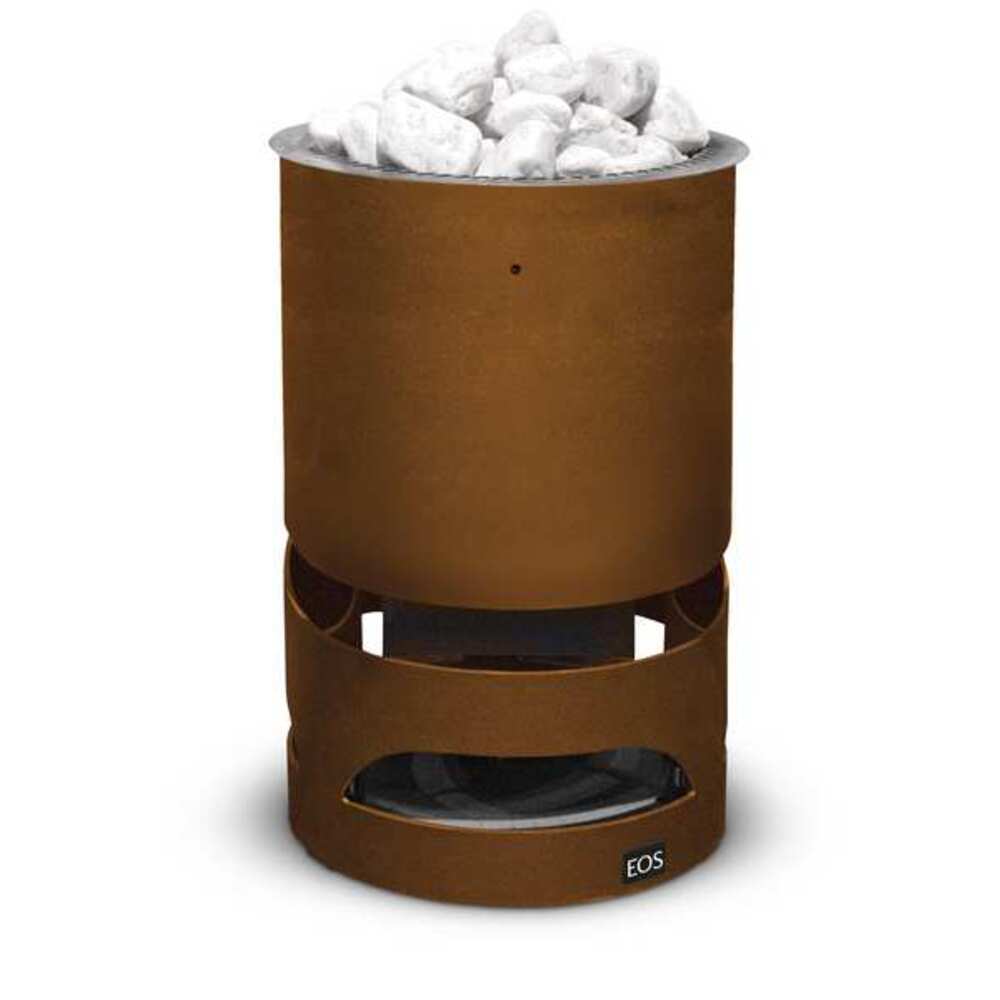

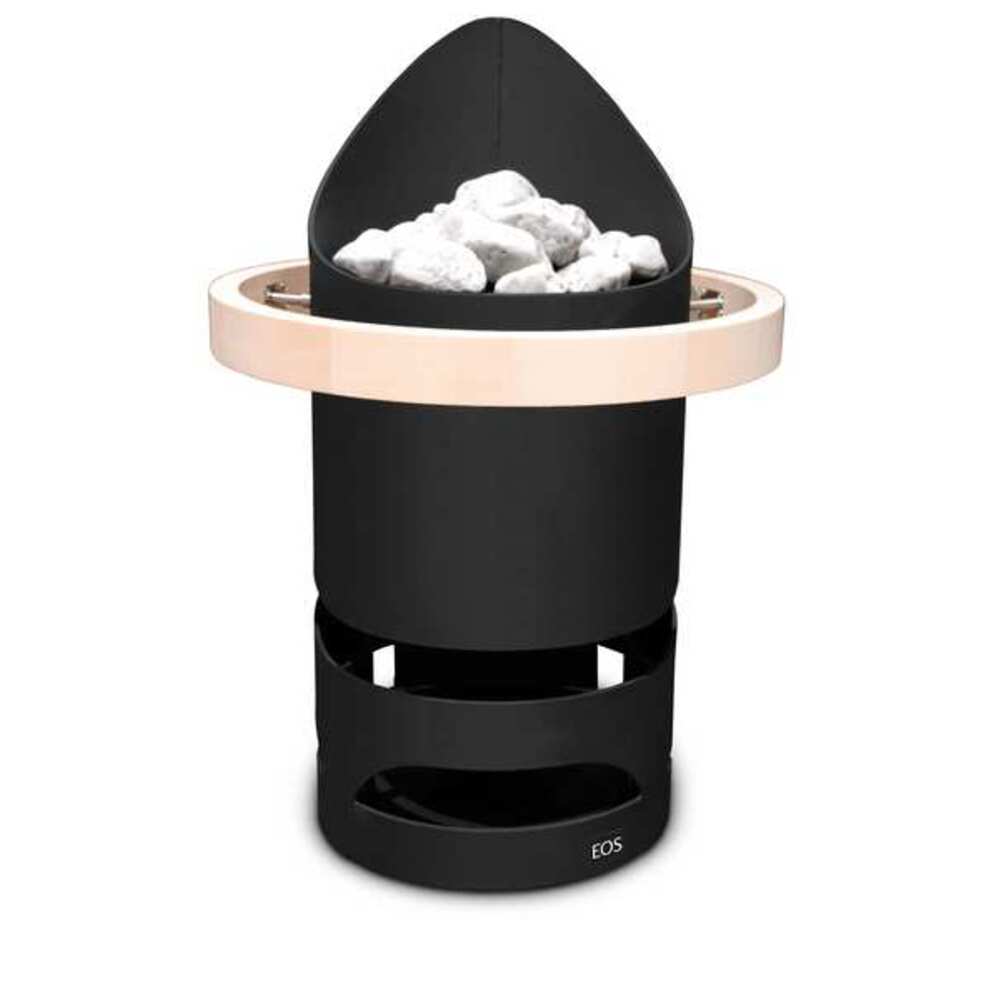

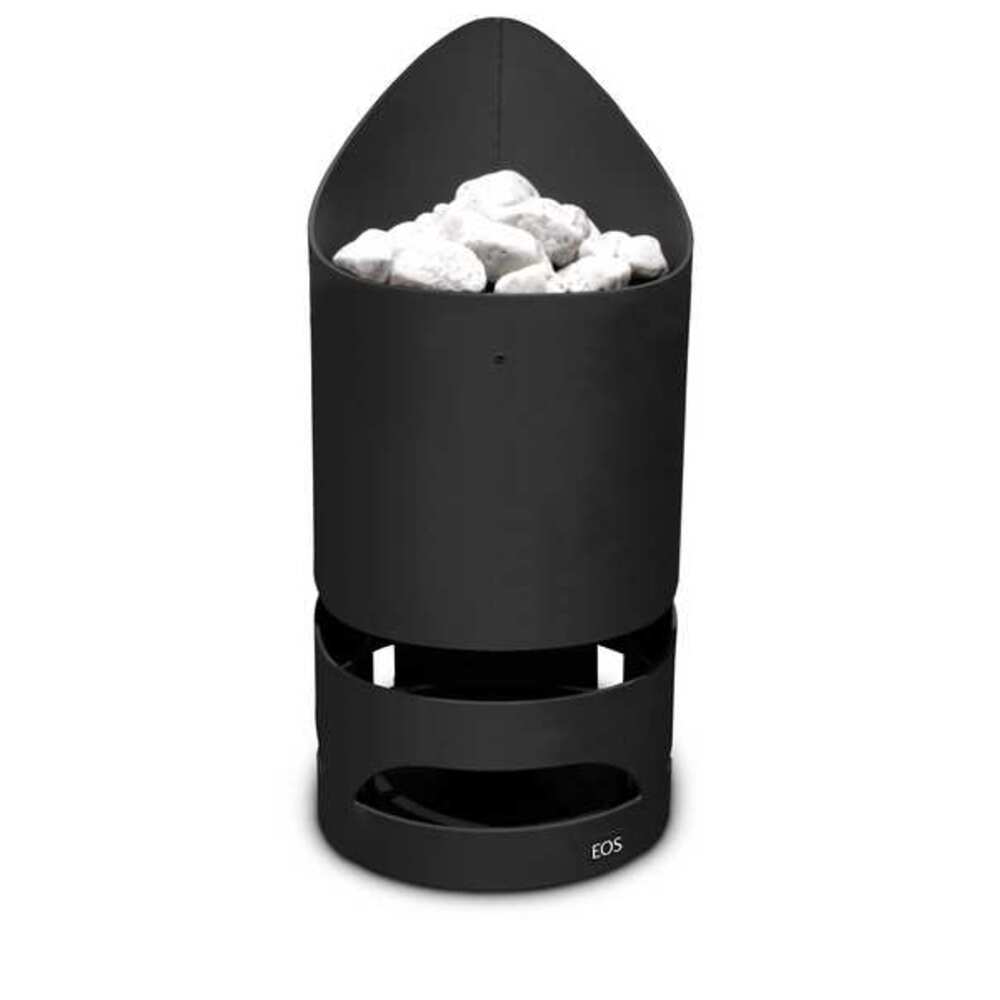

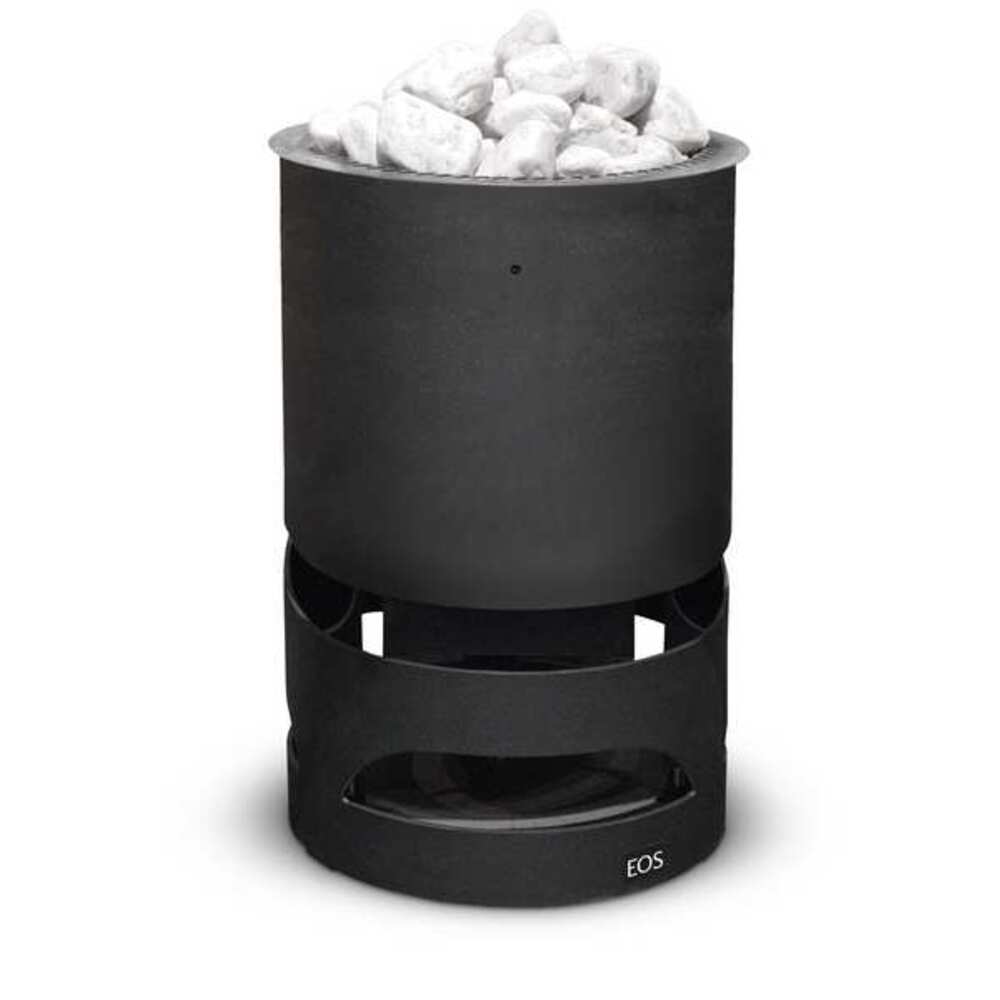

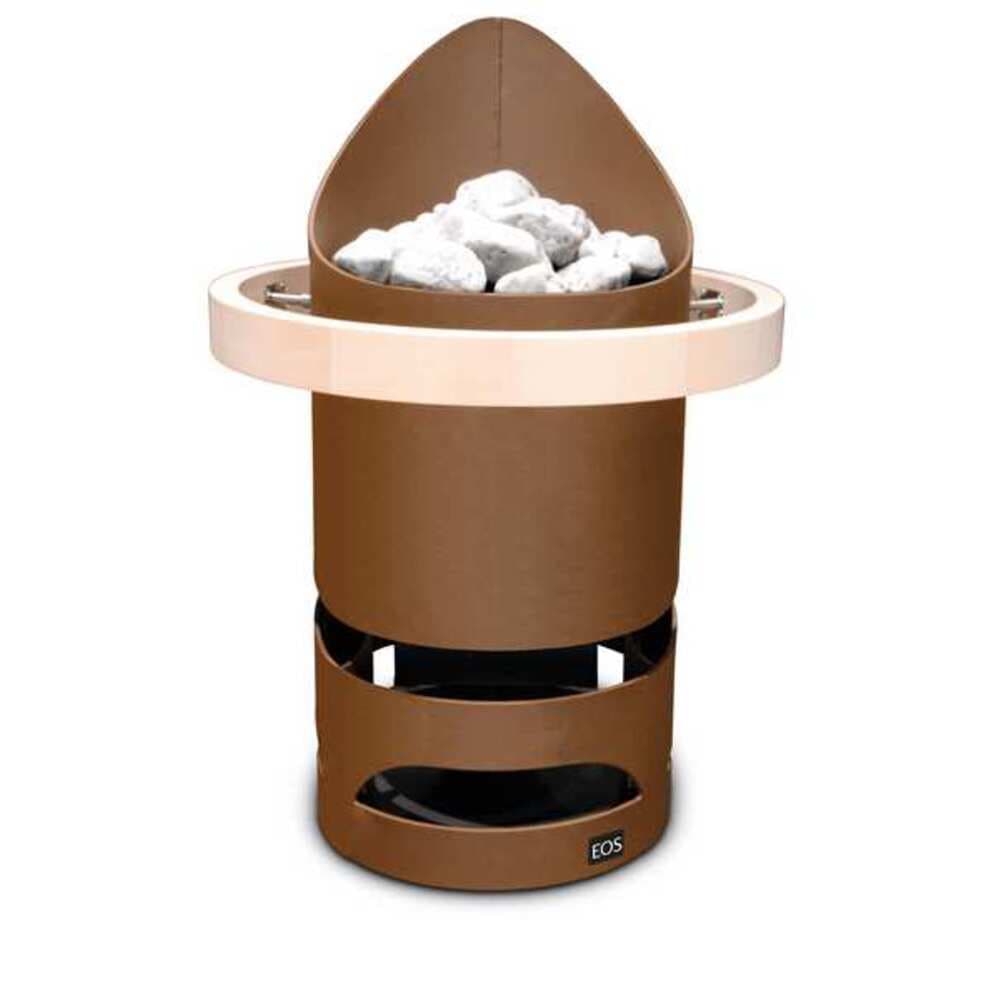

The EOS Zeus S supplements the Zeus family as a "little brother". For private and commercial sauna operation. With a diameter of only 45 cm, it also fits in compact to medium-sized saunas.
Exclusive luxury class floor-standing model in unique round design. For the (dry) Finnish sauna. The highlight of EOS Zeus S is the unique laser-cut solid steel housing. Finish – "Rust Marble" powder coating in red-brown (alternatively available in black and anthracite pearl effect finish).
Rock store fits approx. 25 - 30 kg stones.

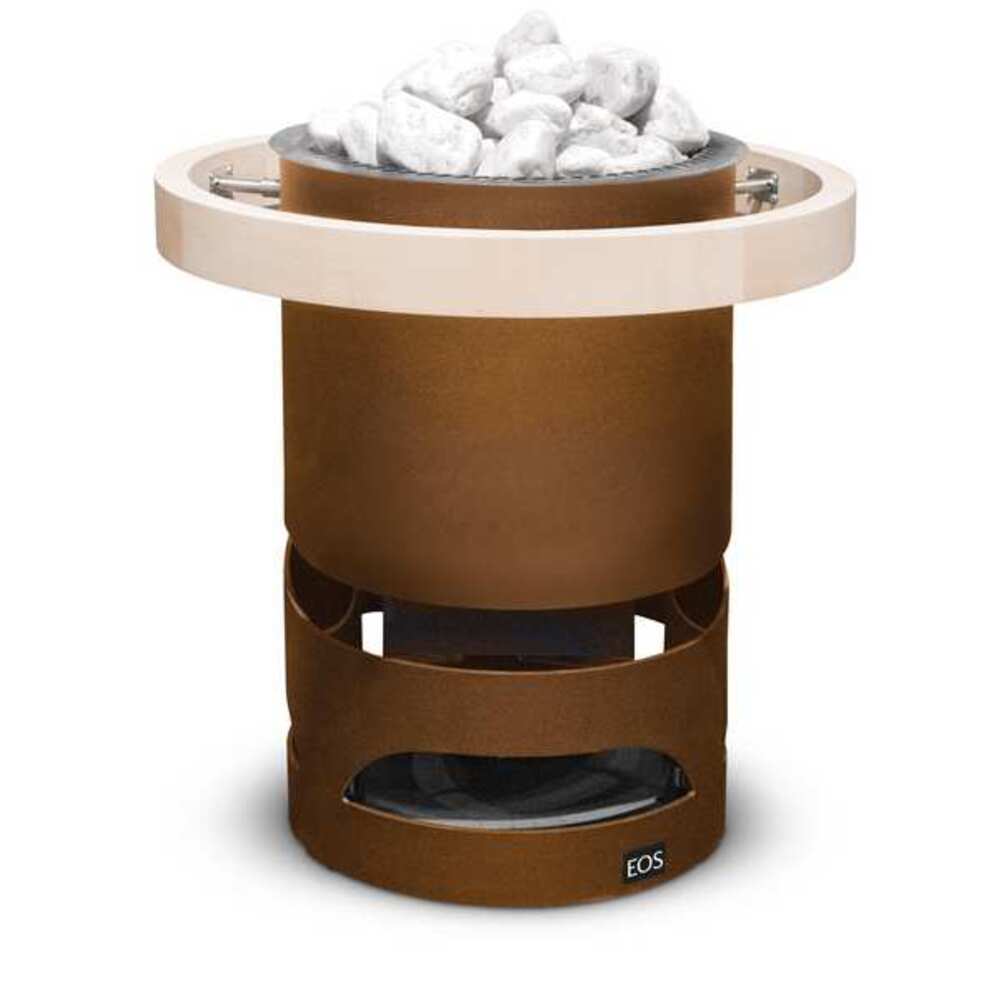

The optionally available matching round protective rail in 360° or 270° sets the crowning touch to the spectacular design of this model.
Power | Item no. | |
6,0 kW | 947010 | red-brown "Rust Marble" |
7,5 kW | 947011 | red-brown "Rust Marble" |
9,0 kW | 947012 | red-brown "Rust Marble" |
10,0 kW | 947892 | red-brown "Rust Marble" |
10,5 kW | 947013 | red-brown "Rust Marble" |
12,0 kW | 947014 | red-brown "Rust Marble" |
6,0 kW | 947020 | black |
7,5 kW | 947021 | black |
9,0 kW | 947022 | black |
10,0 kW | 947893 | black |
10,5 kW | 947023 | black |
12,0 kW | 947024 | black |
6,0 kW | 947030 | anthracite |
7,5 kW | 947031 | anthracite |
9,0 kW | 947032 | anthracite |
10,0 kW | 947894 | anthracite |
10,5 kW | 947033 | anthracite |
12,0 kW | 947034 | anthracite |
Power | Item no. | |
6,0 kW | 947015 | red-brown "Rust Marble" |
7,5 kW | 947016 | red-brown "Rust Marble" |
9,0 kW | 947017 | red-brown "Rust Marble" |
10,0 kW | 947901 | red-brown "Rust Marble" |
10,5 kW | 947018 | red-brown "Rust Marble" |
12,0 kW | 947019 | red-brown "Rust Marble" |
6,0 kW | 947025 | black |
7,5 kW | 947026 | black |
9,0 kW | 947027 | black |
10,0 kW | 947902 | black |
10,5 kW | 947028 | black |
12,0 kW | 947029 | black |
6,0 kW | 947035 | anthracite |
7,5 kW | 947036 | anthracite |
9,0 kW | 947037 | anthracite |
10,0 kW | 947903 | anthracite |
10,5 kW | 947038 | anthracite |
12,0 kW | 947039 | anthracite |
Power | for sauna cabin size | Min. size of air inlet and outlet |
6,0 kW | 6 - 8 m³ | 35 x 4 cm |
7,5 kW | 7 - 10 m³ | 35 x 5 cm |
9,0 kW | 9 - 14 m³ | 35 x 6 cm |
10,5 kW | 11 - 15 m³ | 35 x 6 cm |
12,0 kW | 14 - 18 m³ | 35 x 7 cm |
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse protection control unit | 3 x 16 A |
Fuse protection LSG unit | no / 3 x 16 A (only 10,5 and 12,0 kW) |

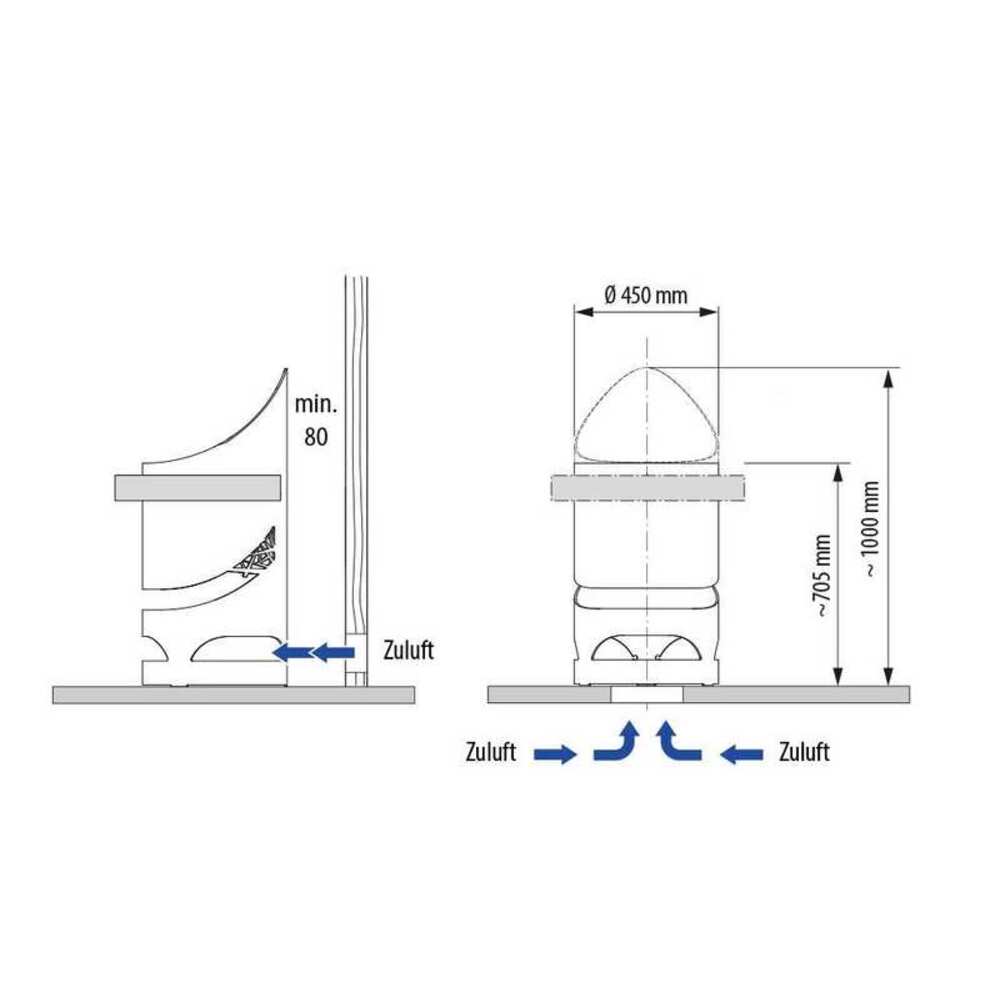

Dimensions in cm | EOS Zeus S: Ø 45 x 100 cm EOS Zeus SL: Ø 45 x 70 cm |
Weight withouth rocks | EOS Zeus S: 67 kg EOS Zeus SL: 62 kg |
Stone filling | 25 kg |
Power extension required | no / LSG 10 (only 10,5 and 12,0 kW) |
