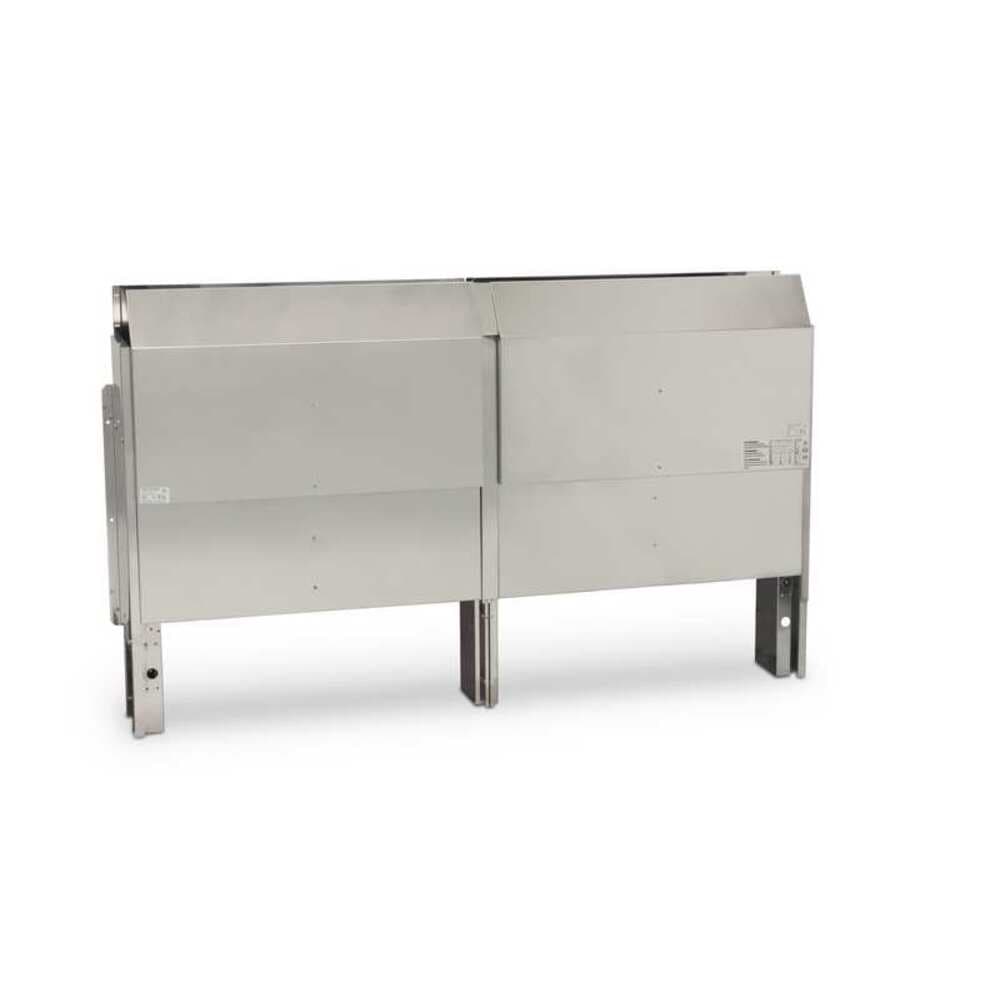

EOS 46.U
Behind-the-bench sauna heater
EOS 46.U XL
Description
Description
Concealed installation - Behind-the-bench model for the (dry) Finnish sauna
Special extra slim construction for place-saving hidden installation. Only 22 cm depth required for installation!
Saves valuable place and increases safety in use thanks to the hidden installation.
Very robust and reliable. Inner and outer shell of stainless steel. Dust and water collecting tray at the bottom.
Rock store with water distribution gutter across the entire heater width.

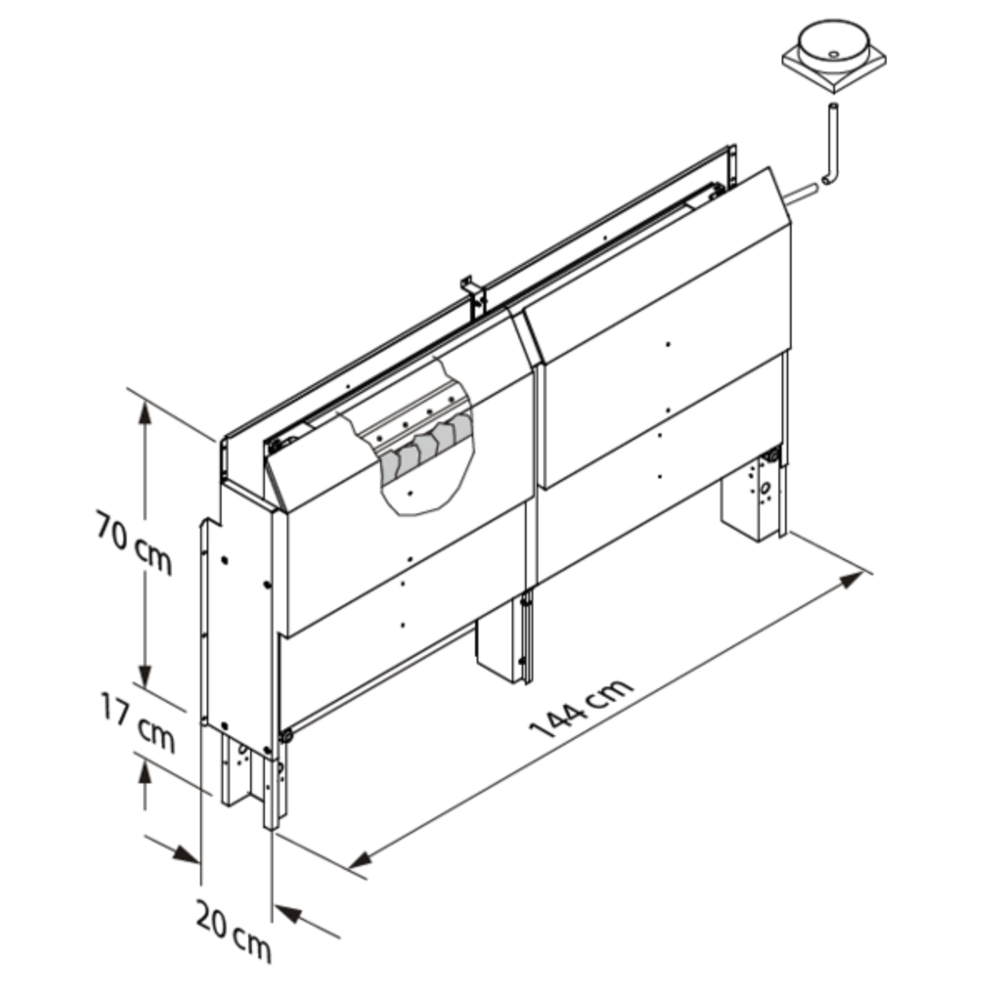

Dimensions HWD: 870 x 1440 x 200 mm
Rock store with approx. 20 kg stone volume.
Delivery scope includes:
- Water splash funnel with 1 m hose
- Cover protection safety grill 1600 mm
Your Advantages
- Very slim and place-saving - only 20 cm installation depth.
- XL-size power - 15 or 18 kW for saunas from 18 to 30 m³.
- High safety thanks to the hidden installation.
- Robust, durable construction, all made of stainless steel.
- Includes safety grill (prevents objects from falling down on the heater)
- Includes water infusion kit (funnel)
Model Overview
| Power | Item no. |
|---|---|
| 15,0 kW | 94.7219 |
| 18,0 kW | 94.7222 |
Technical Specifications
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse protection (control unit) | 3 x 16 A |
Dimensions H/W/D, in cm | 87 / 144 / 20 |
For sauna cabin size (15,0 / 18,0 kW) | 18 - 25 m³ / 24 - 30 m³ |
Min. size of air intake and outlet (15,0 / 18,0 kW) | 2x 60 x 5 cm |
Weight without stones and packing (15,0 / 18,0 kW) | 44 kg / 45 kg |
Stone filling | 20 kg |
Power extension needed | PEB 10 |
