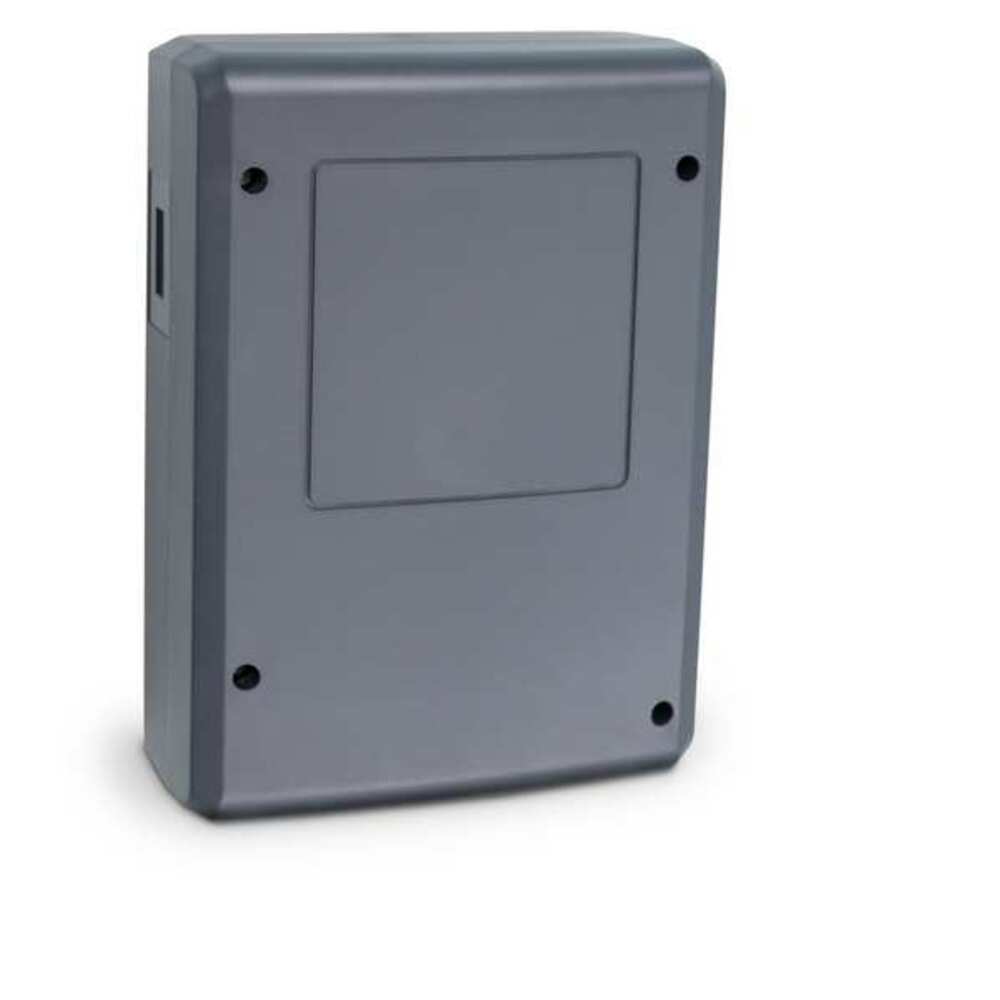

PEB 10 CA / CW
Power extension
EOS U-Command
Description
Description
Intuitive control. Relaxed sauna experience.
The control system that makes wellness simple.
With EOS U-Command, you can operate your wellness cabin easily, safely, and as individually as you wish.
Complete control – on the display or on the go.
Relaxation at your fingertips
With EOS U-Command, you see only what matters: start, temperature, humidity, and runtime – all clear, logical, and easy to access. A single tap launches your wellness experience, while personalized user profiles save your preferences for ultimate comfort and convenience.
Multi-Cabin Support
Manage up to two cabins from a single control panel – safely and effortlessly. Whether it’s for sauna, infrared, hybrid sauna, steam room, or hammam, one intuitive system handles it all.
Your Advantages
- Easy to use: Intuitive control for all sauna users, no complicated manuals required.
- Personalized experience: User profiles for tailored wellness experiences. Multi-level access rights with PIN protection, numerous smart features, and guided setup.
- Comfort from anywhere: Monitor and control your sauna anytime via the app.
- Future-proof: Combined with the EOS Cloud, your sauna stays connected and up to date. Software updates are applied automatically via the internet. Operators save on maintenance costs, and end users regularly benefit from new features and improvements.
- GDPR-compliant with European server location: Full data protection compliance according to EU standards. Sauna builders and operators gain legal security, and end users enjoy maximum transparency and data safety.

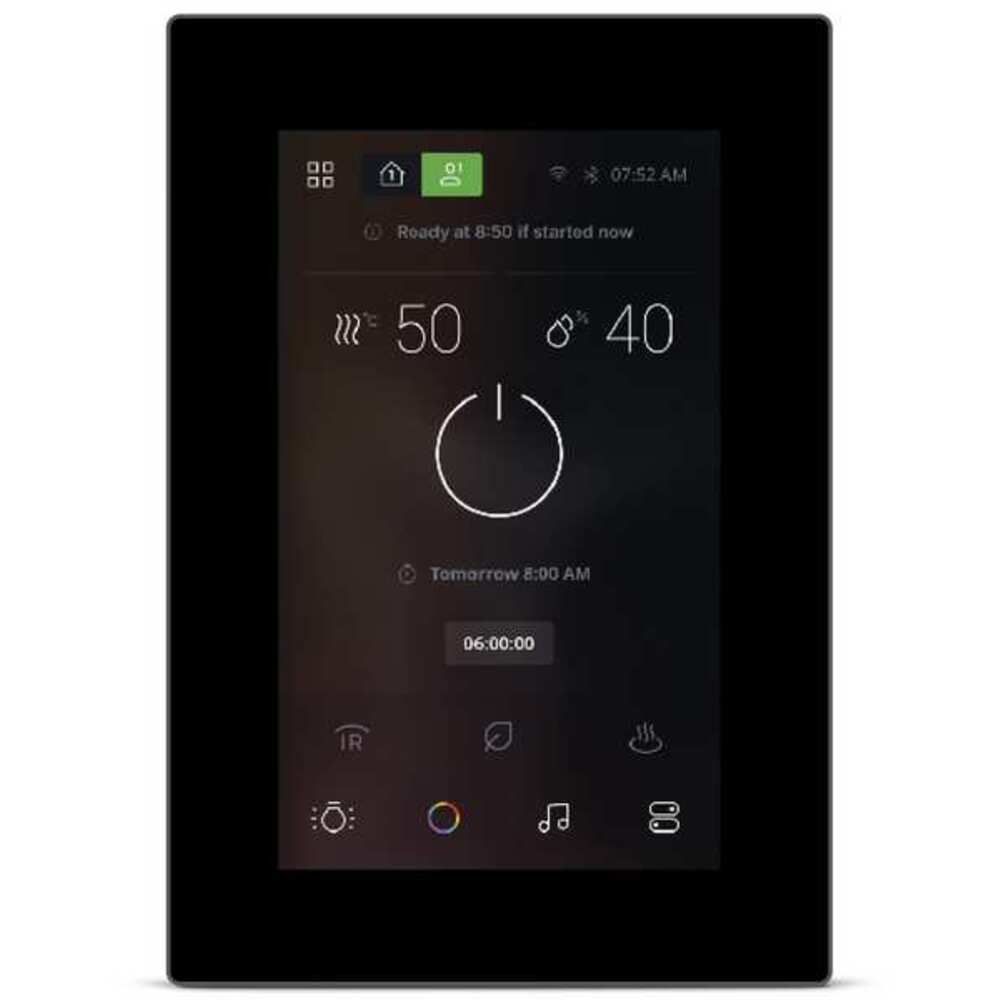

- Capacitive 5” colour touchscreen: 800 × 480 px, approx. 110 × 68 mm pop-out mechanism, concealed USB-C port, reboot button
- Flexible installation: Vertical or horizontal installation possible. Flush-mounted or surface-mounted installation.
- Coloured light control: RGB+W for LED, 40 W (expandable), 24 VDC.
- Sound control: Bluetooth, stereo amplifier, max. 40 W.

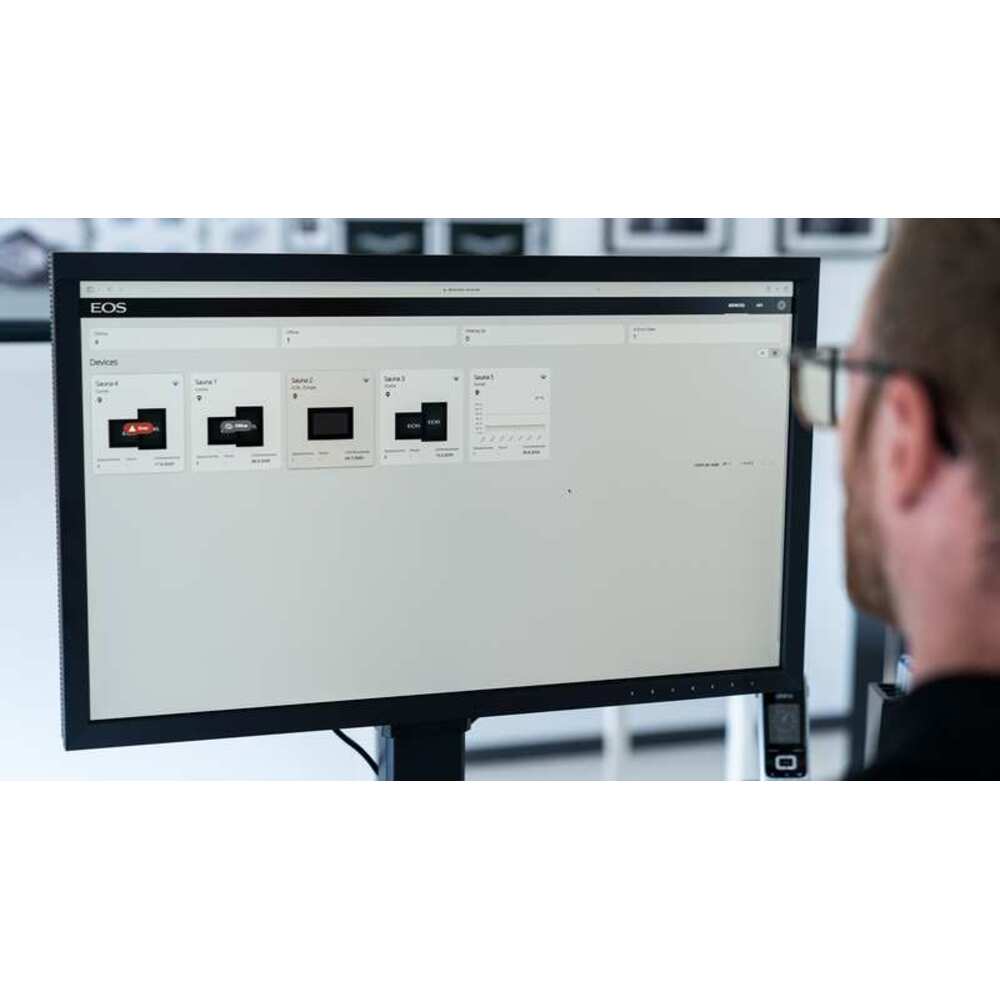

- Connectivity & IoT: Wi-Fi with EOS App (smartphone required), connection to EOS Cloud. Remote control and monitoring via app or browser.
- Integration & expansion: Remote control modules: KNX or Modbus for BMS integration, module for remote start button
- Multifunctional: Controls up to two separate cabins. Supports sauna, infrared, steam room, and hammam (separate power units required per cabin).
- Compatibility: Backward compatible with older “Sauna-Bus” expansion modules.
Model Overview
EOS U-Command D10 – For dry (Finnish) sauna – 10 kW
EOS U-Command H10 – For dry and humid sauna – 10 kW
EOS U-Command D18 – For dry (Finnish) sauna – 18 kW
EOS U-Command H18 – For dry and humid sauna – 18 kW
Accessories
Item no. |
|
949217 | black |
949260 | white |
Item no. |
|
949218 | black |
949261 | white |
Item no. |
|
949219 | black |
949262 | white |
Item no. |
|
949220 | black |
949263 | white |
Item no. |
|
949333 | Colour light board RGBW 40 W |
949334 | Colour light board RGBW extended |
949335 | Sound board (stereo) |
Technical Specifications
Electrical connection | 400 V 3N ~ 50/60 Hz |

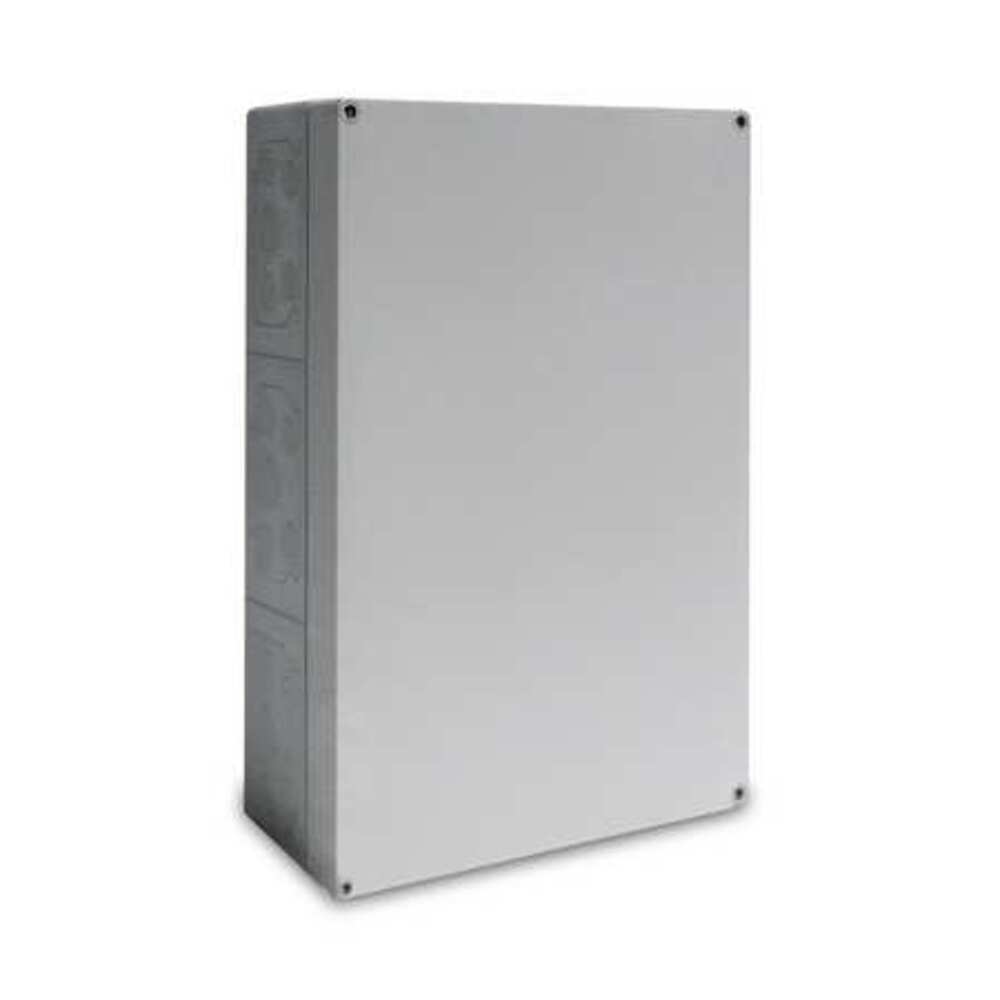

Power output | 10,0 kW (can be expanded with: PEB 10 / PEB 18 / PEB 36), 3,0 kW vaporizer (Bi-O) |
Temperature control range | 30° - 115 °C (Finnisch) 30° - 70° C (Bi-O) |
Start time pre-selection | 24 h real time or week timer with two programs per day |
Cabin light output | 230 V /max. 100 W, dimmable. ohmic, capacitive, inductive load. |
Fan output | 230 V / max. 100 W, adjustable |
Dimensions (H/W/D) | Control panel: 147 × 103 × 35 mm |
