PEB 36 / 36 H

Professional grade contactor box for power extension for control units.

Provides the additional 36 kW switching capacity.

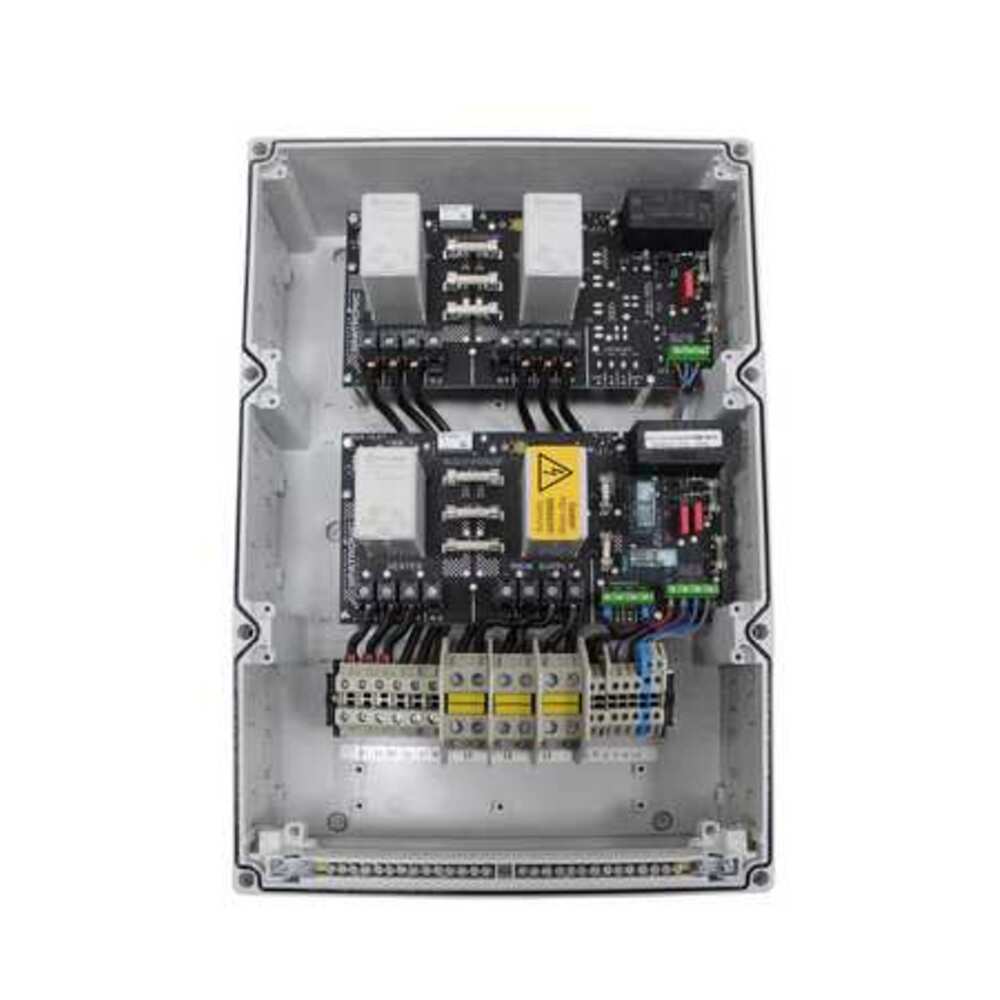

Professional wall-mounting housing. New improved design with extra large housing and built-in fuse box (front side, with a glass window). Very quiet in operation. Connection from all sides.

In combination with a 9 kW (10 kW) sauna control units suitable for twin-circuit sauna heaters up to 45 kW (46 kW) power (with EOS Compact D18/H18 – up to 54 kW).

• PEB 36: With 2 x 18 kW output.
• PEB 36 H: With 2 x 18 kW output for heater and 6 kW output for vaporizers. Ideal for Bi-O type sauna heaters.

Fuse links are included in the scope of delivery!

• Professional grade contactor box for power extension for sauna control units. Provides the additional 36 kW switching capacity.
• New improved design with extra large housing and built-in fuse box.
• Very low-noise operation.
• Durable, highly reliable construction.
• Fast and simple installation.
• Connection from all sides.
• With integrated fuses for individual protection of all three phases (replacement fuses included in delivery).
• PEB 36 H: With 2 × 18 kW output for heater and 6 kW output for vaporizer (for commercial Bi-O sauna heaters).
• In combination with a 9 kW (10 kW) sauna control units suitable for twin-circuit sauna heaters up to 45 kW (46 kW) power (with EOS Compact D18/H18 – up to 54 kW).
