EOS 46.U
Behind-the-bench sauna heater
EOS Thermat W
Description
Description
Universal sauna heater for private sauna cabins.
Sauna heater for the Finnisch (dry) sauna. EOS Thermat W features a timeless, elegant design, thanks to its aluminium die-cast top and scratch resistant anthracite pearl effect outer shell.
Wall-mounting model with durable construction for many years of reliable service. Rock store made of stainless steel ensures ideal air convection and high temperature reserves for powerful water splashes. Terminal box at the rear.
Rock store fits up to 15 kg stones.
Your Advantages
- Versatile sauna heater for dry Finnish sauna.
- Timeless, contemporary design.

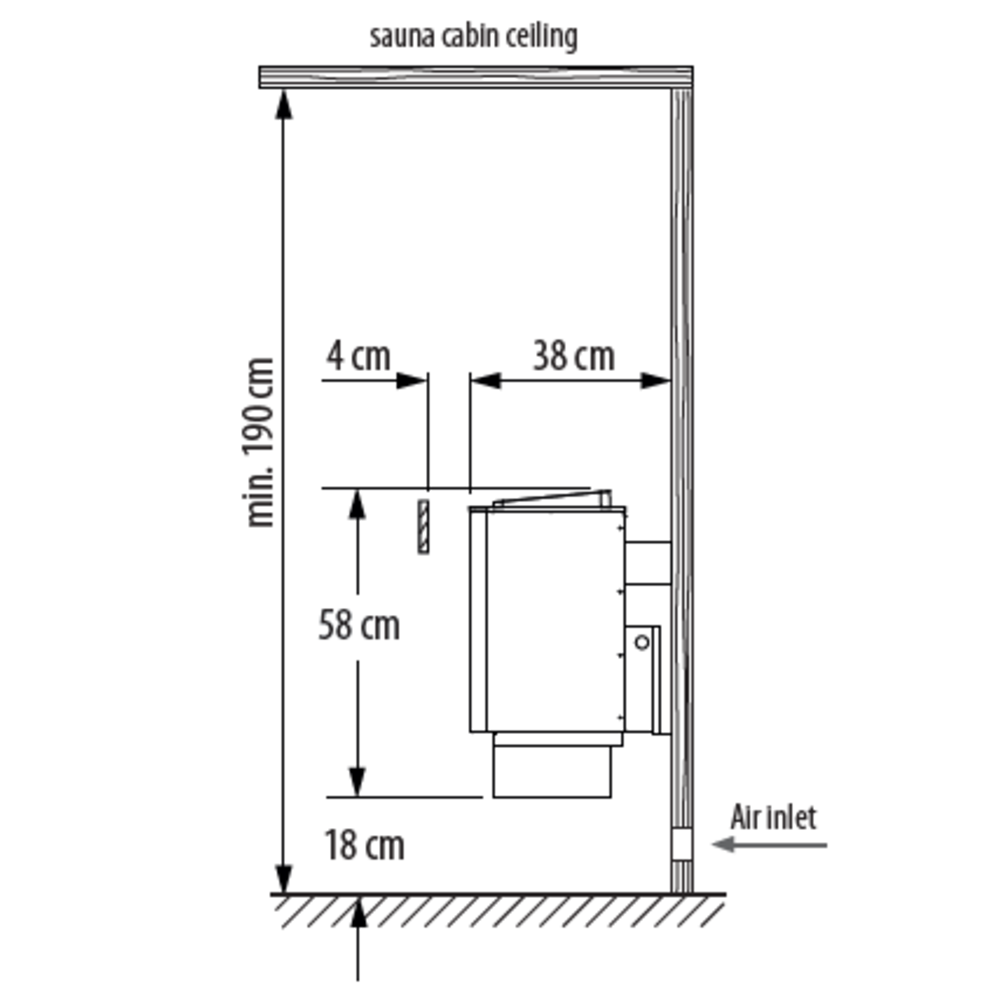

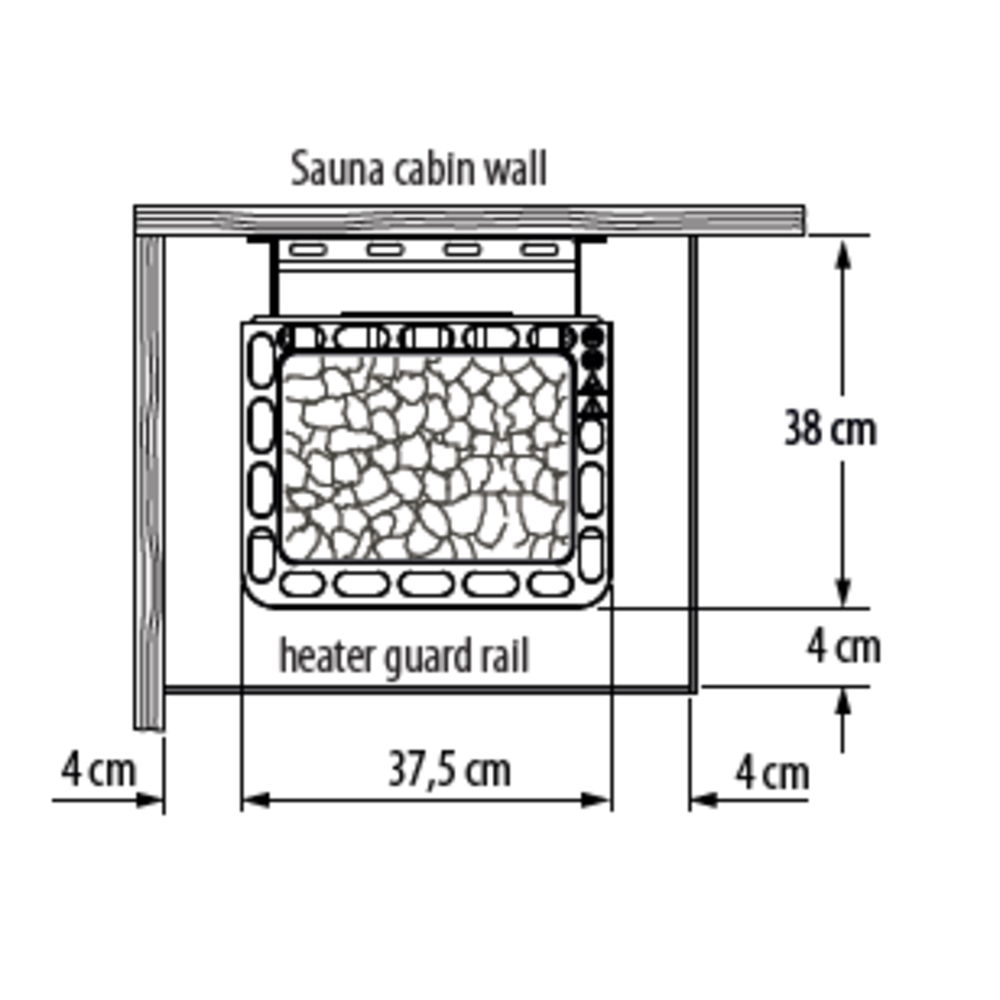

- Only 4 cm gaps to flammable materials on the sides.
- Elegant die-cast aluminium top.
- Scratch resistant anthracite pearl effect powder-coating.
- Proven, durable construction with long-life heating elements.
- Optimal relation between stone volume and air convection system for fast heat-up times and powerful water splashes.
- Rock store fits up to 15 kg stones.
Model Overview
Power | Item no. |
4,5 kW | 945862 |
6,0 kW | 945863 |
7,5 kW | 945735 |
9,0 kW | 945864 |
Technical Specifications
Electrical connection | 400 V 3N / 230 V 1N ~ 50/60 Hz |
Fuse protection (control unit) | 3 x 16 A |
Dimensions H/W/D, in cm | 58 / 37,5 / 38 |
For sauna cabin size (4,5 / 6,0 / 7,5 / 9,0 kW) | 4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ |
Min. size of air intake and outlet (4,5 / 6,0 / 7,5 / 9,0 kW) | 35 x 3 cm / 35 x 4 cm / 35 x 5 cm / 35 x 6 cm |
Weight without stones and packaging (4,5 / 6,0 / 7,5 / 9,0 kW) | 11,0 kg / 11,5 kg / 12,0 kg / 12,5 kg |
Power extension needed | no |
