EOS 46.U
Behind-the-bench sauna heater
EOS Picco W
Description
Description

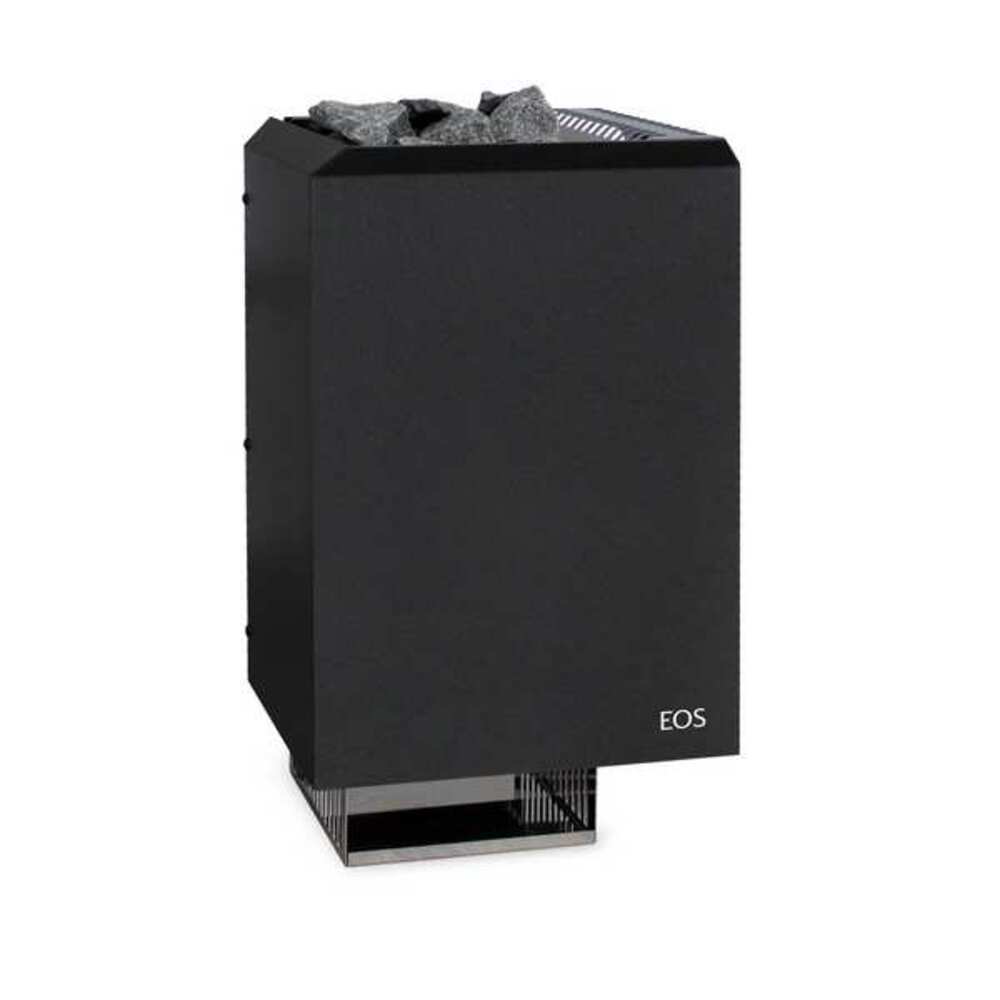

Sauna heater for small sauna cabins.
Very compact, space-saving design. For dry Finnish sauna, recommended for sauna size up to approx. 4,5 m³.

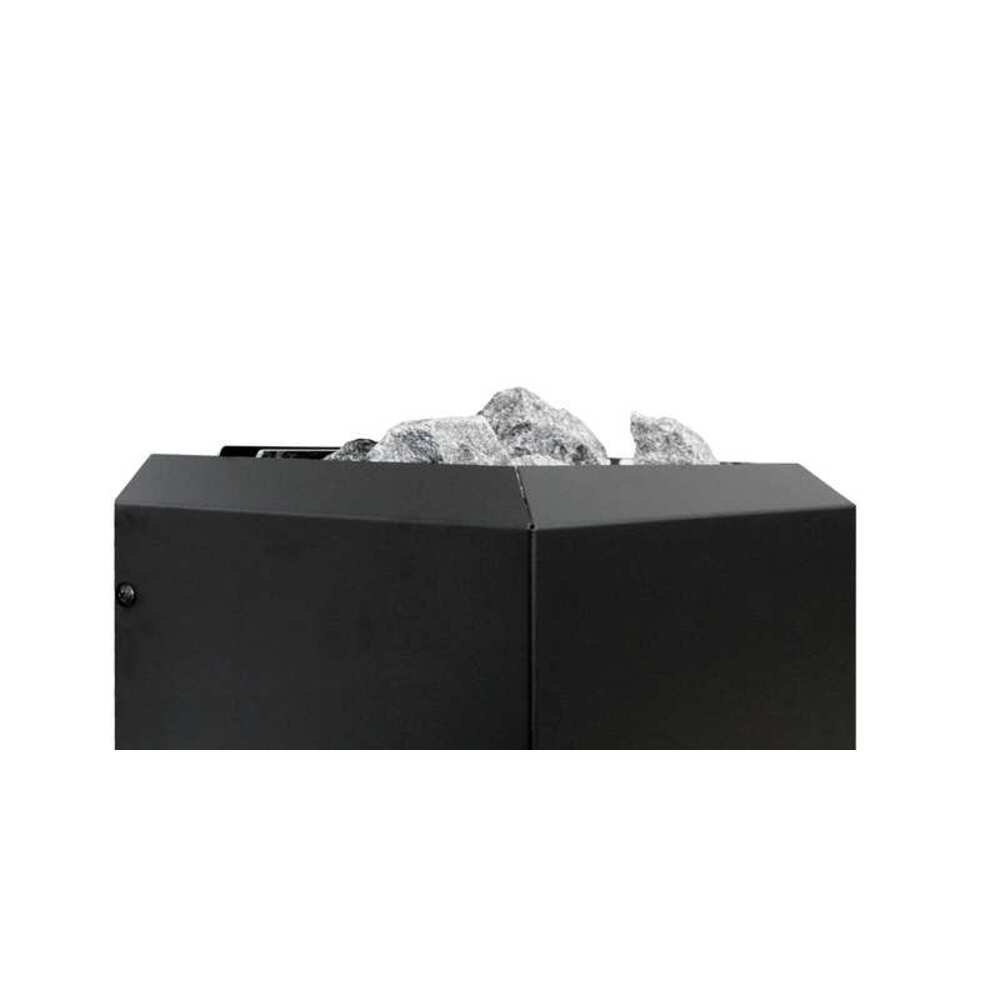

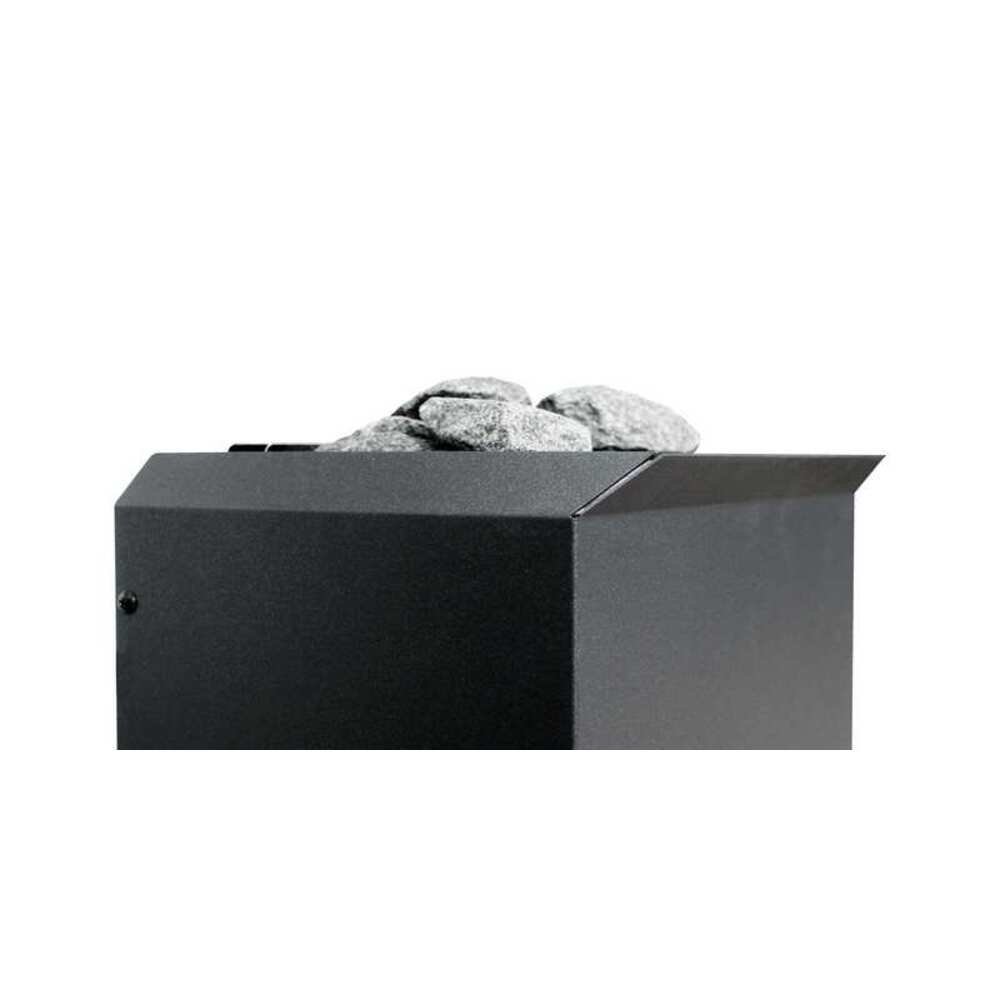

Inner and outer shell of chrome steel. 3 exterior designs: polished chrome steel, matt black or anthracite pearl effect finish. Wall-mounting. 3,5 m connection cable 4 x 1,5 mm² included.

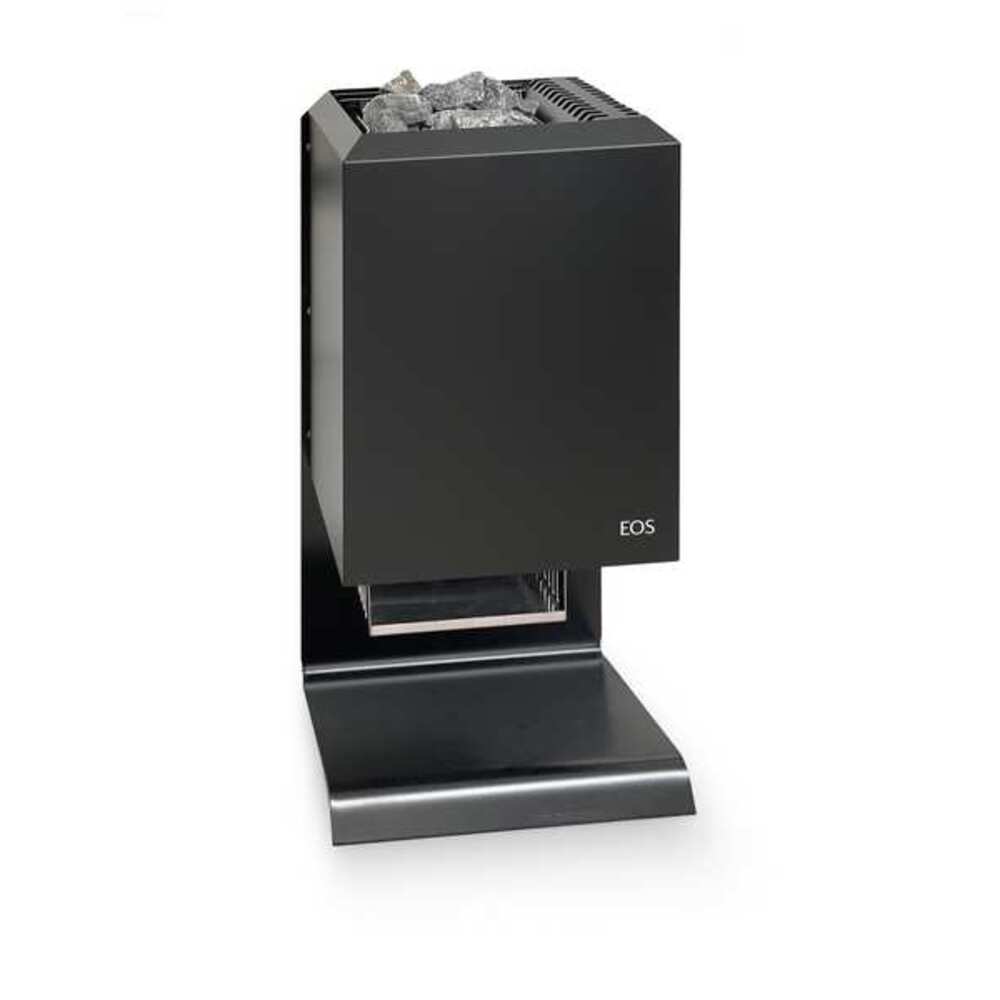

Available in two versions, with exterior design 1 and design 2. With optional feet allows floor-standing installation.
Rock store fits approx. 10 kg stones.
Your Advantages
- Very slim, space-saving design.
- Compact construction for saunas up to approx. 4,5 m³.
- Available in two versions with chrome steel, anthracite pearl effect or matt
black finish outer shell. - Optional feet allows floor-standing installation.
- Rock store fits up to approx. 10 kg stones.
Model Overview
EOS Picco W black
EOS Picco W anthracite
EOS Picco W stainless steel
Power | Model | Item no. |
3,0 kW | Model 1 | 947619 |
3,0 kW | Model 2 | 947625 |
3,5 kW | Model 1 | 947622 |
3,5 kW | Model 2 | 947628 |
Power | Model | Item no. |
3,0 kW | Model 1 | 947620 |
3,0 kW | Model 2 | 947626 |
3,5 kW | Model 1 | 947623 |
3,5 kW | Model 2 | 947629 |
Power | Model | Item no. |
3,0 kW | Model 1 | 947621 |
3,0 kW | Model 2 | 947627 |
3,5 kW | Model 1 | 947624 |
3,5 kW | Model 2 | 947630 |
Technical Specifications
Electrical connection | 230V N ~ 50/60 Hz |
Dimensions H/W/D, in cm |
|
For sauna cabin size (3,0 / 3,5 kW) | ~ 3 - 4 m³ / ~ 3 - 4,5 m³ |
Fuse protection (control unit) | 1 x 16 A |

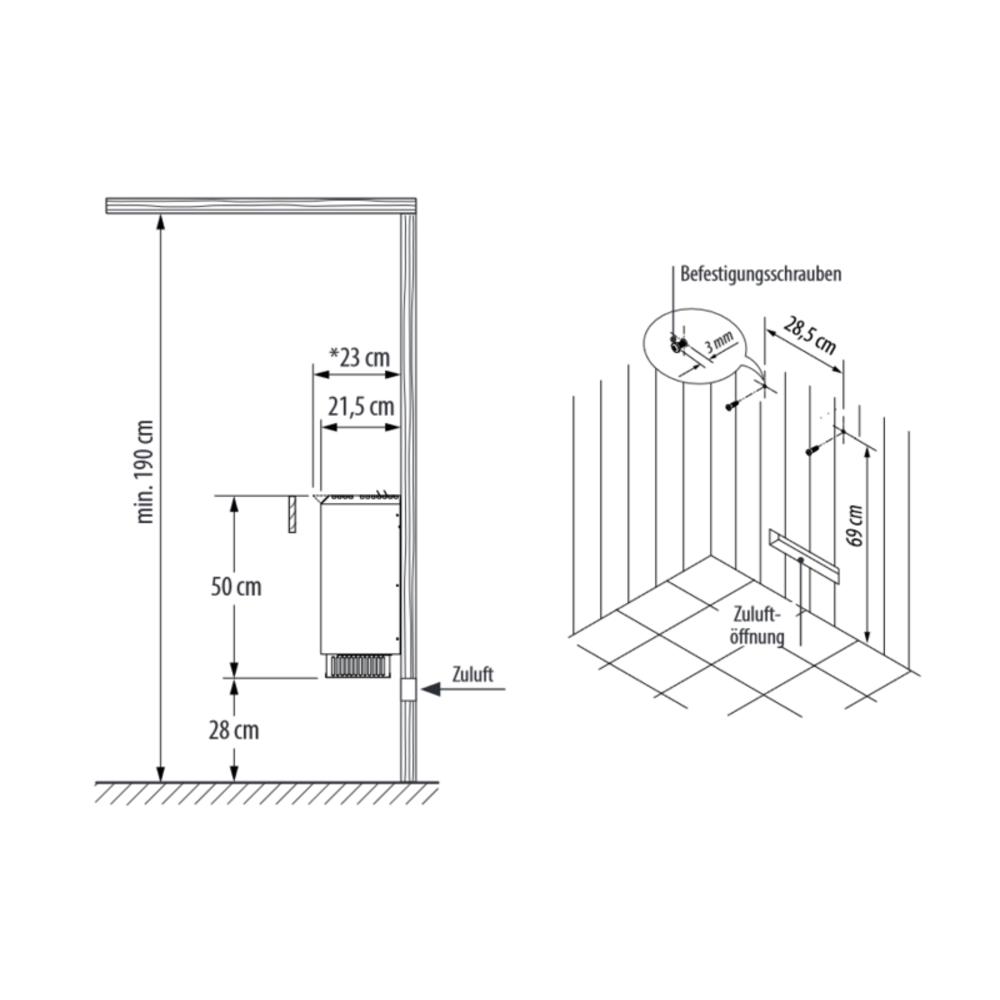

Min. size air inlet and outlet | 20 x 4 cm |
Stone filling | approx. 10 kg |
Power extension required | no |
