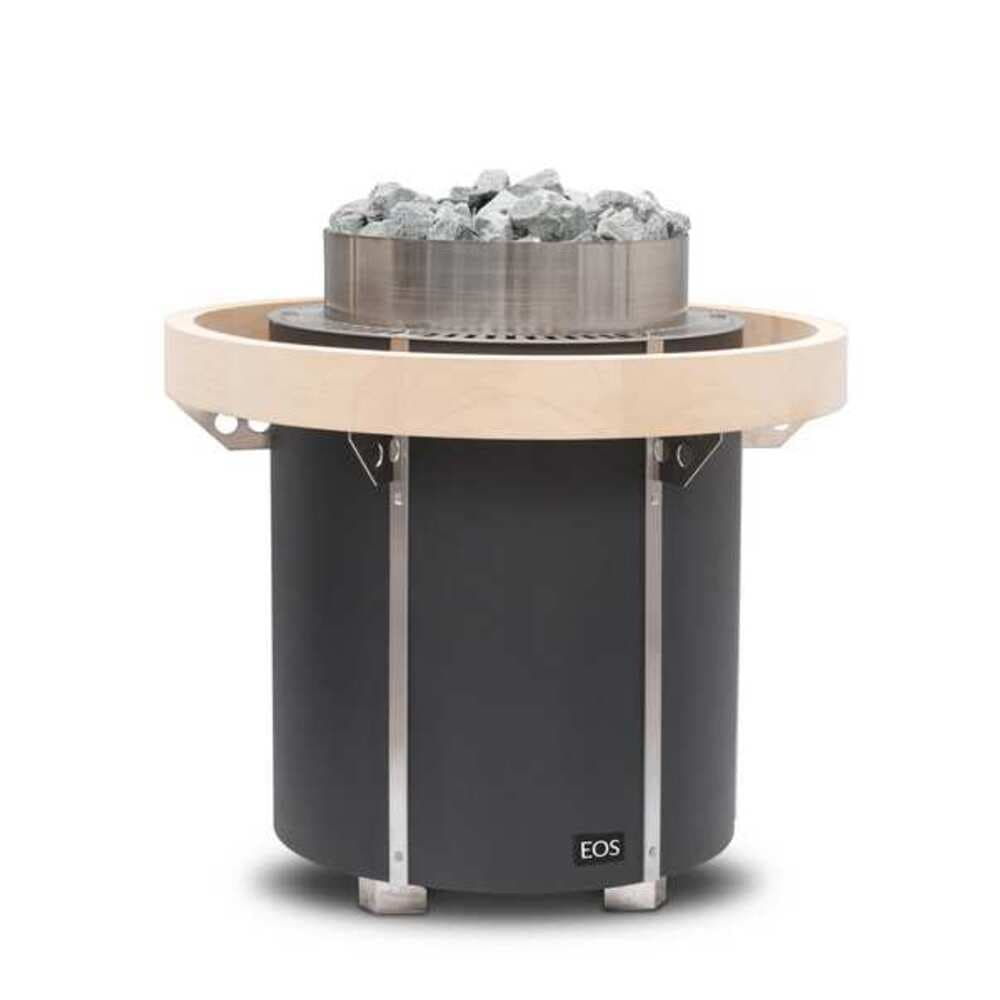

EOS 46.U
Behind-the-bench sauna heater

Floor-standing model for the dry Finnish sauna. Timeless, round design with powder coating in anthracite pearl effect. Durable stainless steel construction. Ideal for installations in front of glass panels or in the centre of the sauna, thanks to the invisible cable connection at the bottom side.
Optimized for stable air convection. Service-friendly – Stone compartment separated from the heating elements.
Upon request also available with red-brown powder coating in "Rust Marble".
Includes mounting brackets for the optional safety guard rail in 360° or 270° in abachi or walnut wood.
Rock store fits approx. 40 kg stones.
Power | Item no. |
18,0 kW | 946421 |
21,0 kW | 946422 |
24,0 kW | 946423 |
Power | for sauna cabin size | Min. size of air inlet and outlet |
18,0 kW | 24 - 30 m³ | 50 x 8 cm |
21,0 kW | 30 - 34 m³ | 50 x 8 cm |
24,0 kW | 35 - 40 m³ | 50 x 10 cm |
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse protection control unit | 3 x 16 A |
Fuse protection LSG unit | 3 x 16 A / 3 x 35 A (only 21 and 24 kW) |

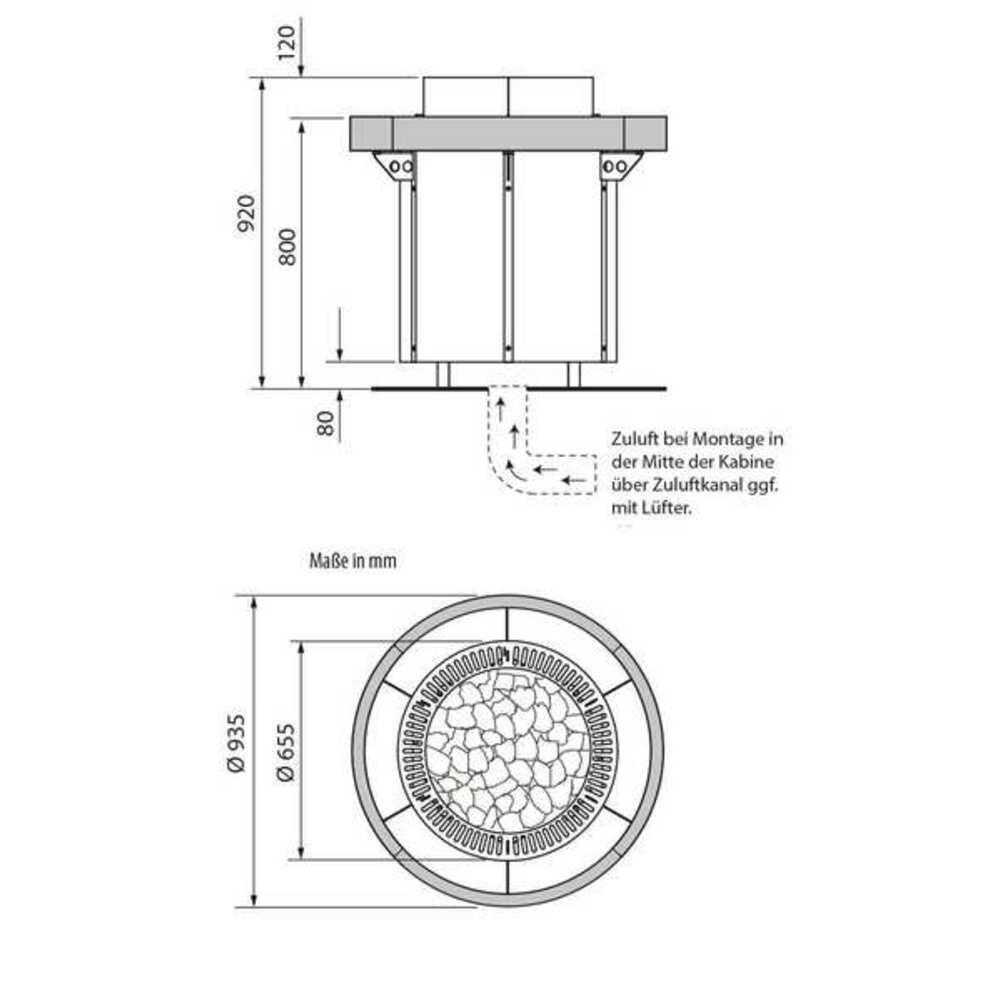

Dimensions (W x H) | 65,5 x 92 cm |
Weight withouth rocks | ~ 55 kg |
Stone filling | 40 kg |
Power extension required | PEB 10 / PEB 18 (only 21 and 24 kW) |
