EOS 46.U
Behind-the-bench sauna heater

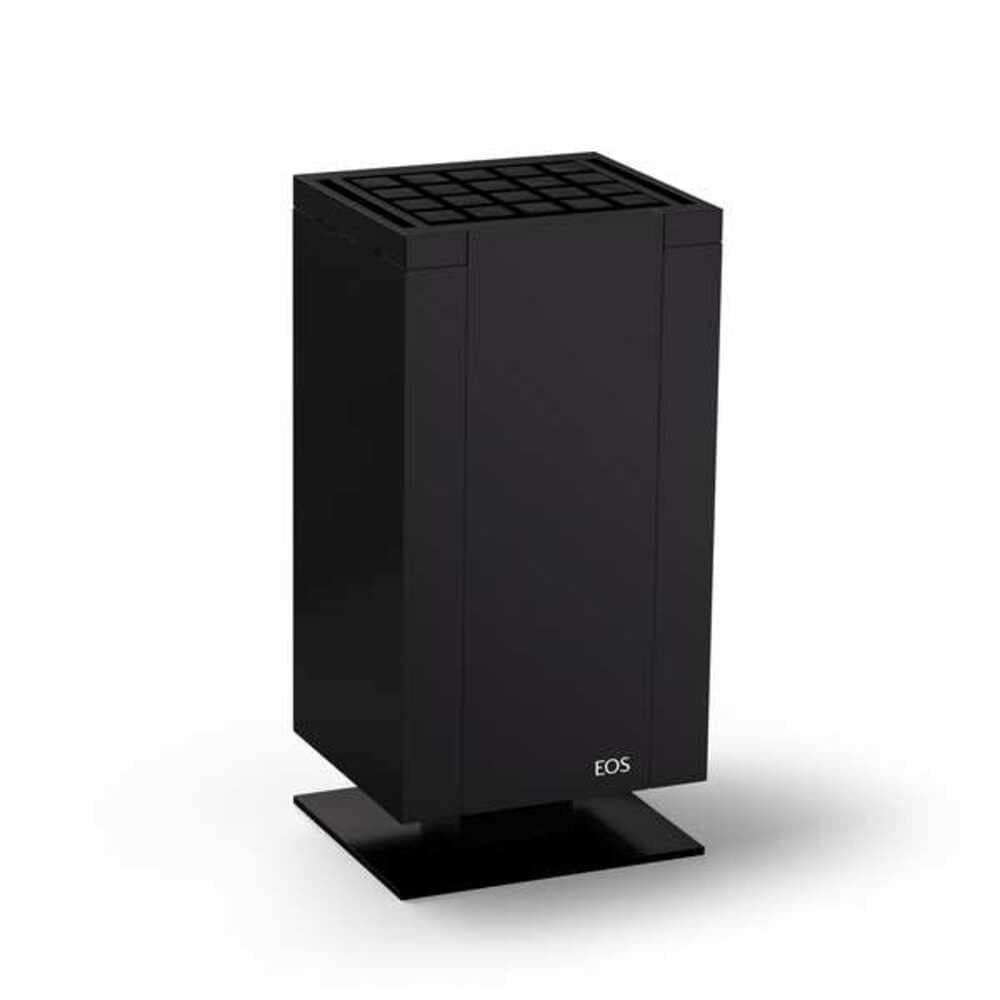

EOS Mythos black
Description
Description
EOS Mythos sauna heater with the exclusive matt black finish on all sides.

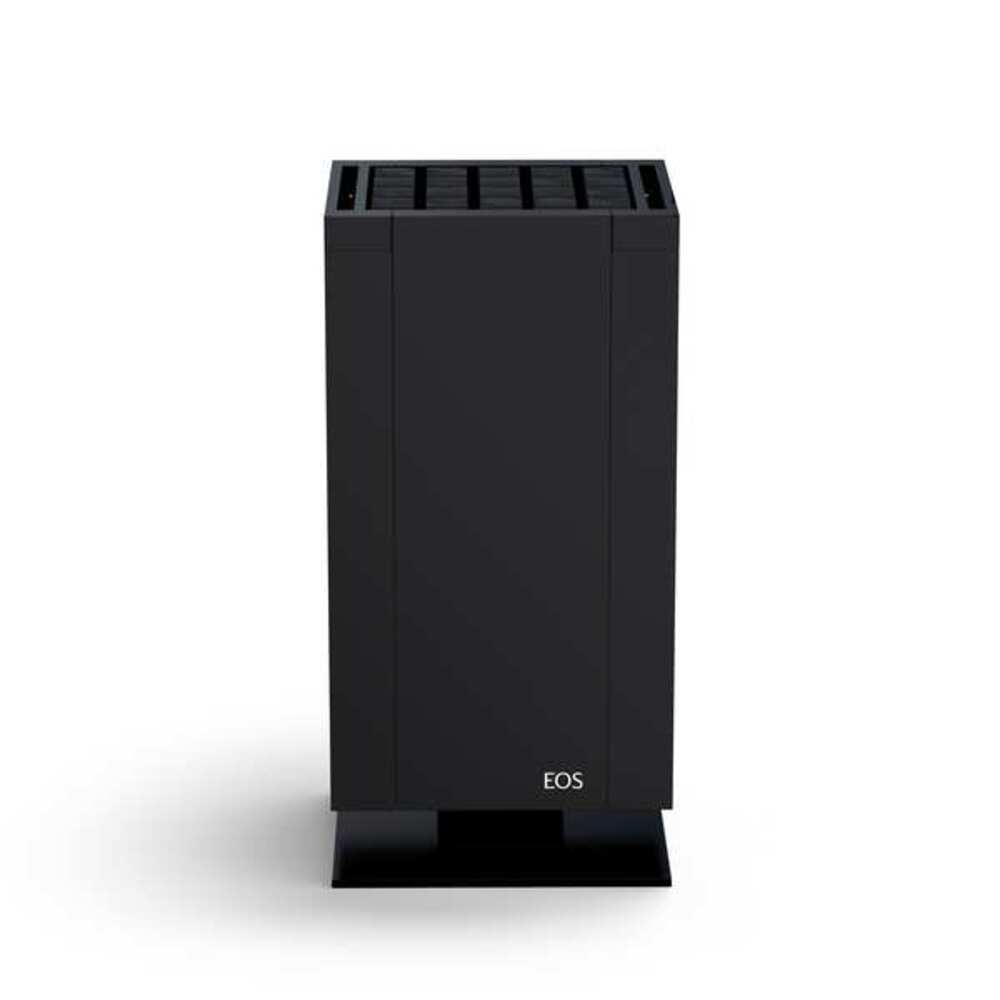

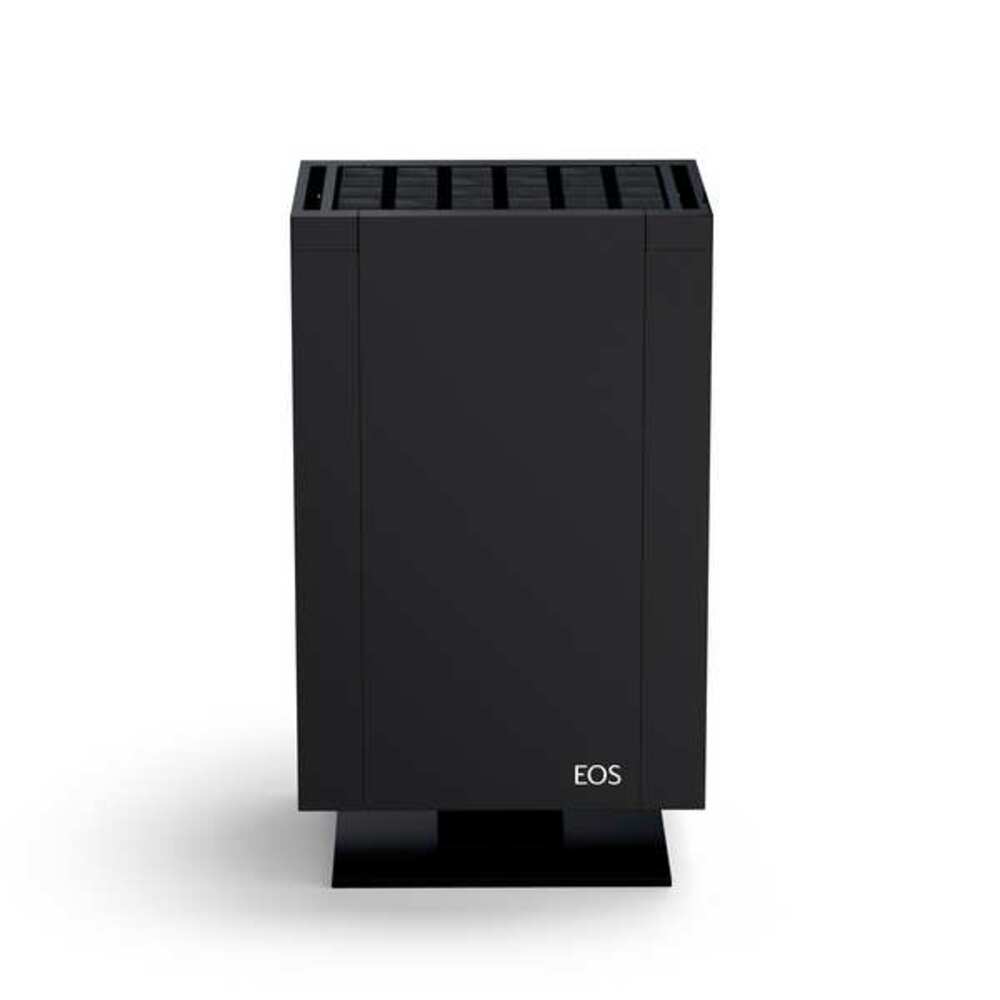

Available as EOS Mythos S35 in 7.5 or 9 kW or as EOS Mythos S45 in 12 or 15 kW.
EOS Mythos black is also available as a vapor model. The vaporizer is not built-in, but can be simply mounted to the left or right side, which gives you more design options.
The special highlight are the black Cubius stones that perfect the design of the heater (included in the delivery).
Upon request
Your Advantages
- Exclusive design with the special matt black finish.
- Unique Cubius stones in cubic design, serially included.
- Durable, long-lasting construction, all made of stainless steel.
- Large 35 kg rock store for optimal heat storage and effective water evaporation.

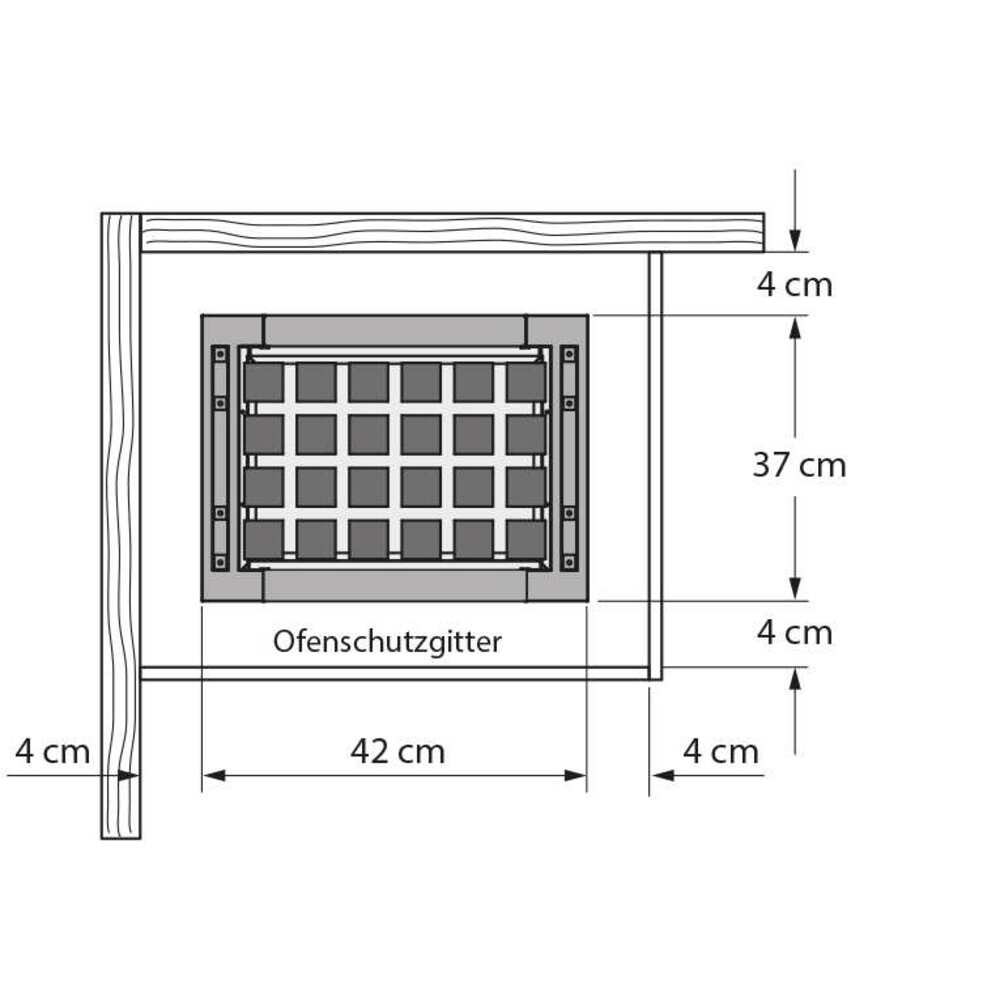

- Slim, space-saving construction – only 37 cm depth.
- Easy to service, rock store above heating elements.
Model Overview
Power | Item no. |
S35 - 7,5 kW | 946066 |
S35 - 9,0 kW | 946067 |
S45 - 12,0 kW | 946068 |
S45 - 15,0 kW | 946069 |
Technical Specifications
Electrical connection | 400 V 3N ~ 50/60 Hz |
Dimensions H x W x D (S35 / S45), in cm | 84 x 42 x 37 / 84 x 50 x 37 |
For sauna cabin size (7,5 / 9 / 12 / 15 kW) | 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³ |
Min. size air inlet and outlet (7,5 / 9 / 12 / 15 kW) | 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm |
Fuse protection control unit | 3 x 16 A |
Fuse protection PEB unit | 3 x 16 A (only S45) |
Weight withouth rocks (S35 / S45) | 34 kg / 40 kg |
Stone filling (S35 / S45) | 35 kg / 45 kg |
Power extension required (S35 / S45) | no / PEB 10 |
