EOS 46.U
Behind-the-bench sauna heater

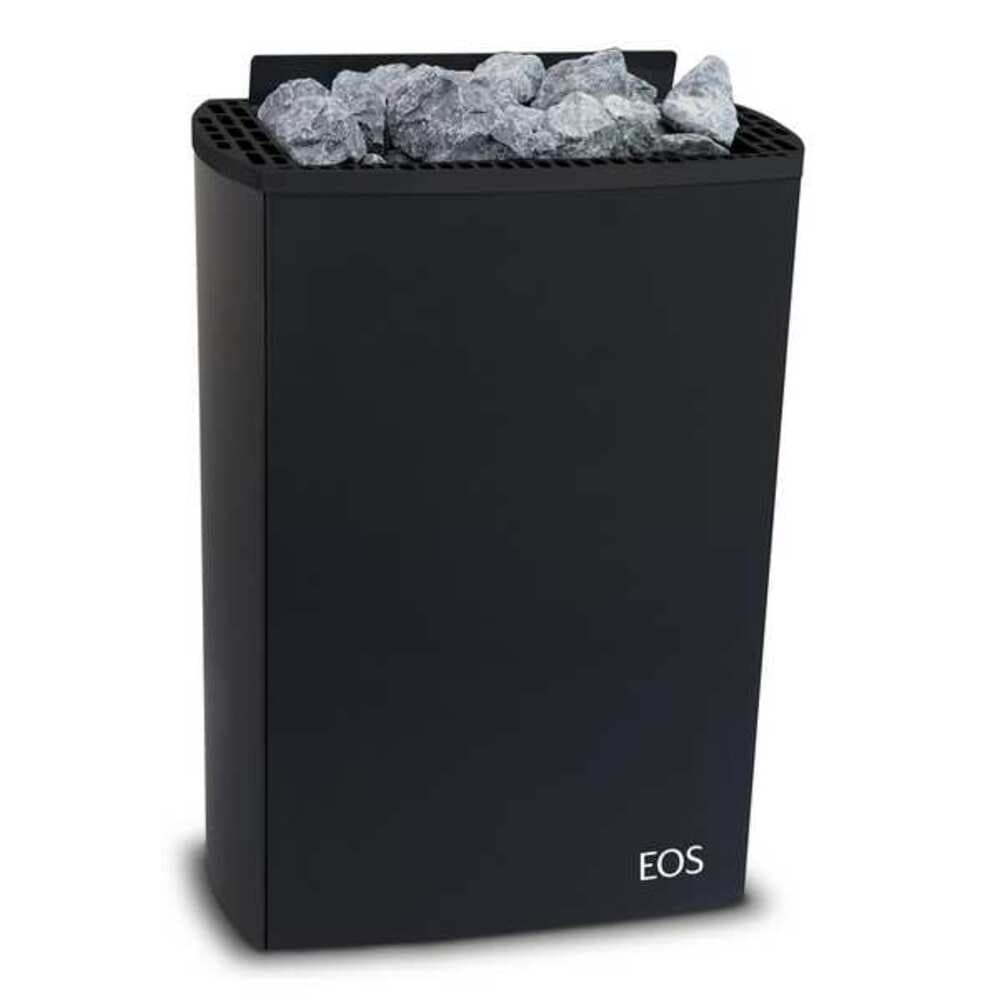

EOS Moment W
Description
Description
Sauna heater with a slightly curved outer shell for domestic saunas.
Sauna heater for dry (Finnish) sauna cabins. Perfect balance between strong air convection and a large rock volume, up to 15 kg stones. Recommended for saunas from 6 m³ up to 14 m³.
Moment heaters feature a very stylish and contemporary looking design. Robust, durable construction - inner casing and rock store made of stainless steel. Exclusive design with stylish black finish on the outer shell and top cover.
Rock store fits up to 15 kg stones.
Your Advantages
- Optimized construction with the well balanced air convection performance and 15 kg stone volume - provides quick heat-up times and ensures powerful water splash effect.
- Contemporary, timeless design with a slightly curved outer shell and an elegant black finish.
- Durable, robust construction - top, inner shell and rock store made of stainless steel.
- 15 kg rock store made of stainless steel.
Model Overview
Power | Item no. |
6,0 kW | 946858 |
7,5 kW | 946859 |
9,0 kW | 946860 |
Technical Specifications
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse protection (control unit) | 3 x 16 A |

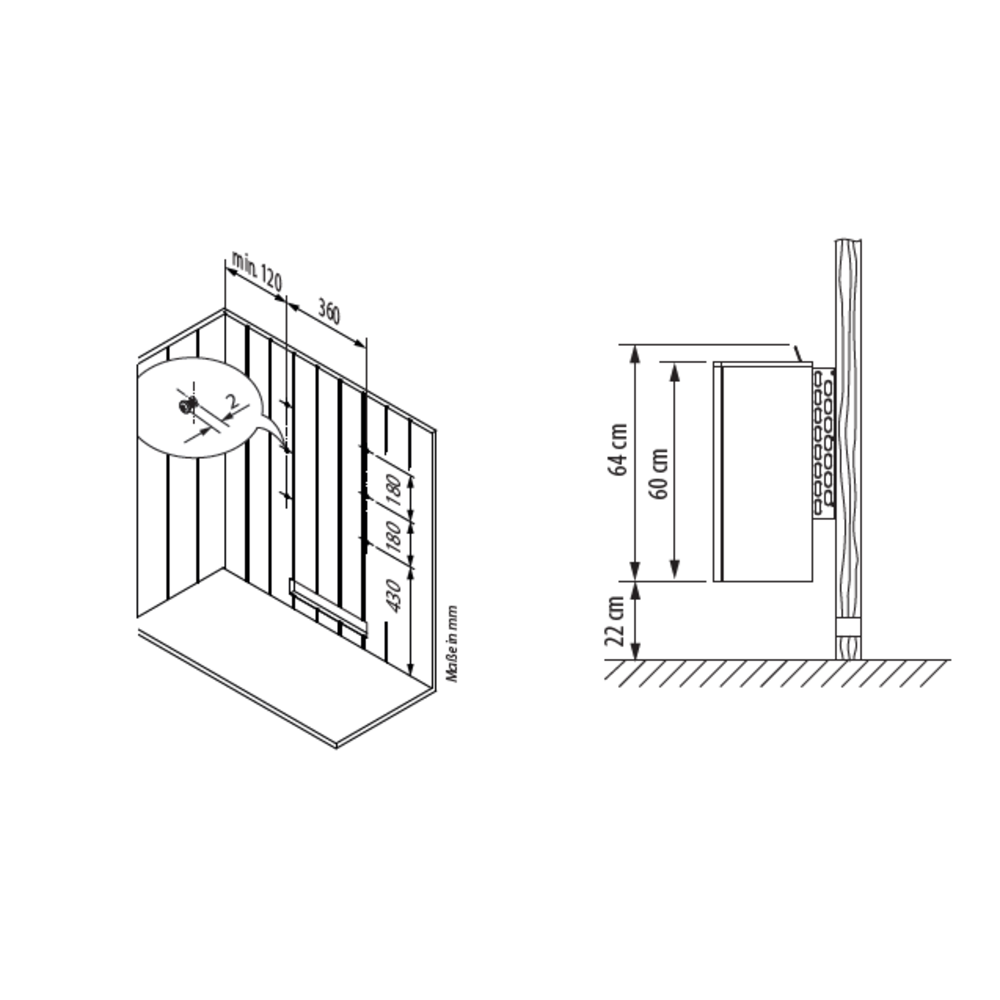

Dimensions H/W/D, in cm | 64 / 44 / 33 |
For sauna cabin size (6,0 / 7,5 / 9,0 kW) | 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ |
Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW) | 35 x 5 cm / 35 x 6 cm / 35 x 6 cm |
Weight withouth rocks | 13 kg |
Stone filling | 15 kg |
