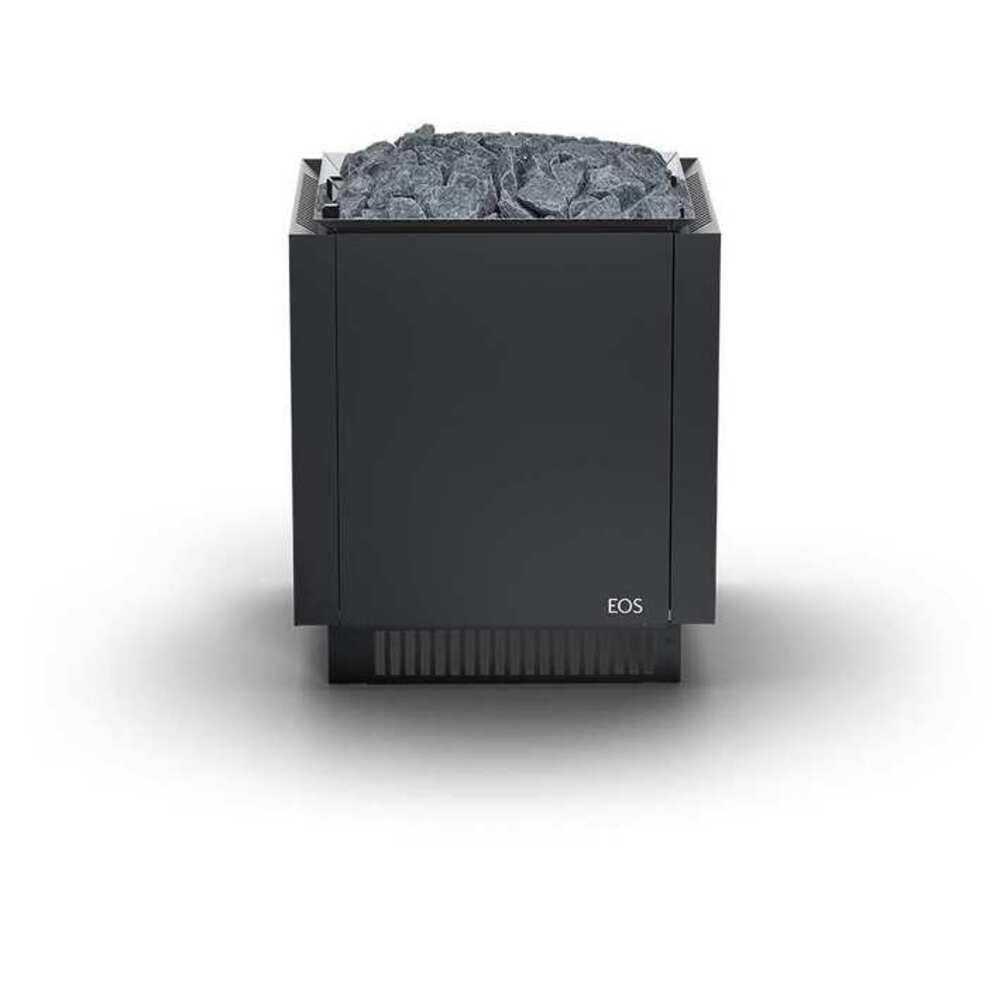

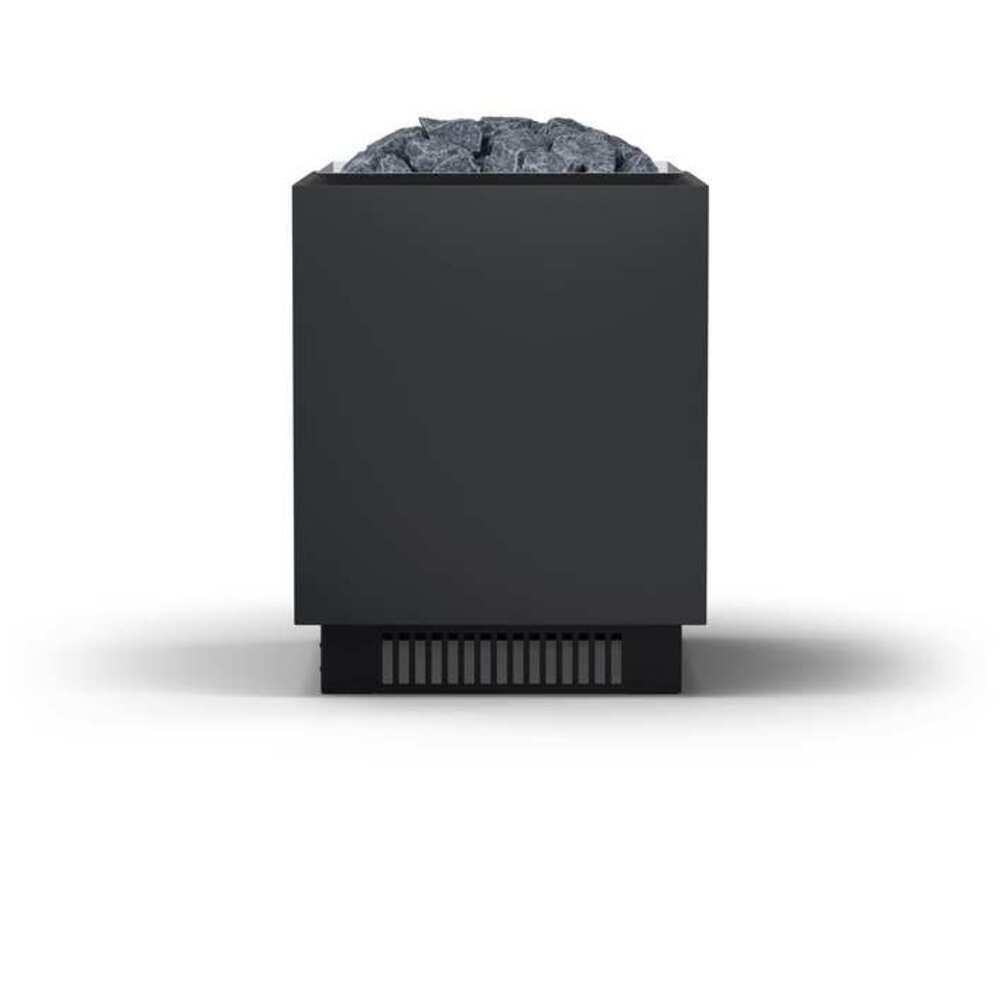

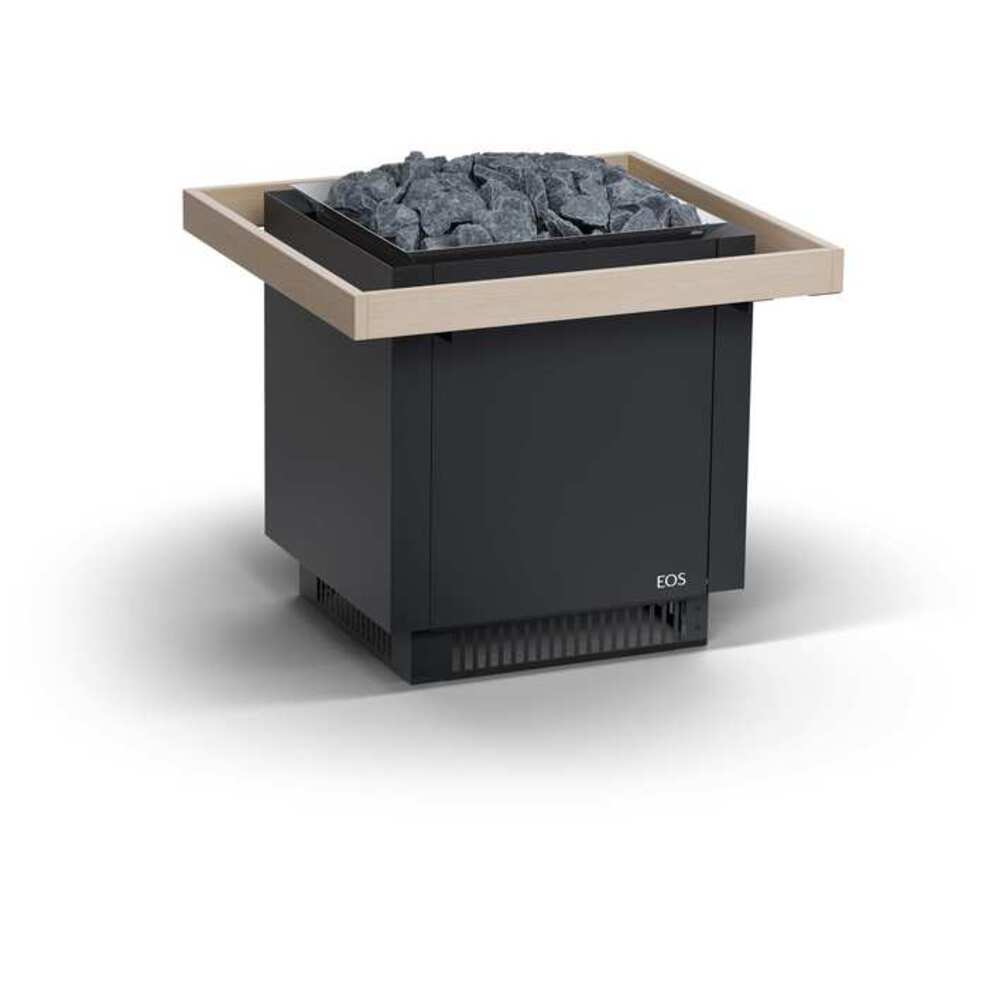

EOS 46.U
Behind-the-bench sauna heater

The EOS Mega S HD unites modern design with reliable top performance.
Specially designed for themed and event saunas. Due to the copper rails as standard inner wiring, the heater is perfectly suitable for saunas with particulary intensive use.
The high-performance sauna heater has a power range from 36.0 to 48.0 kW.

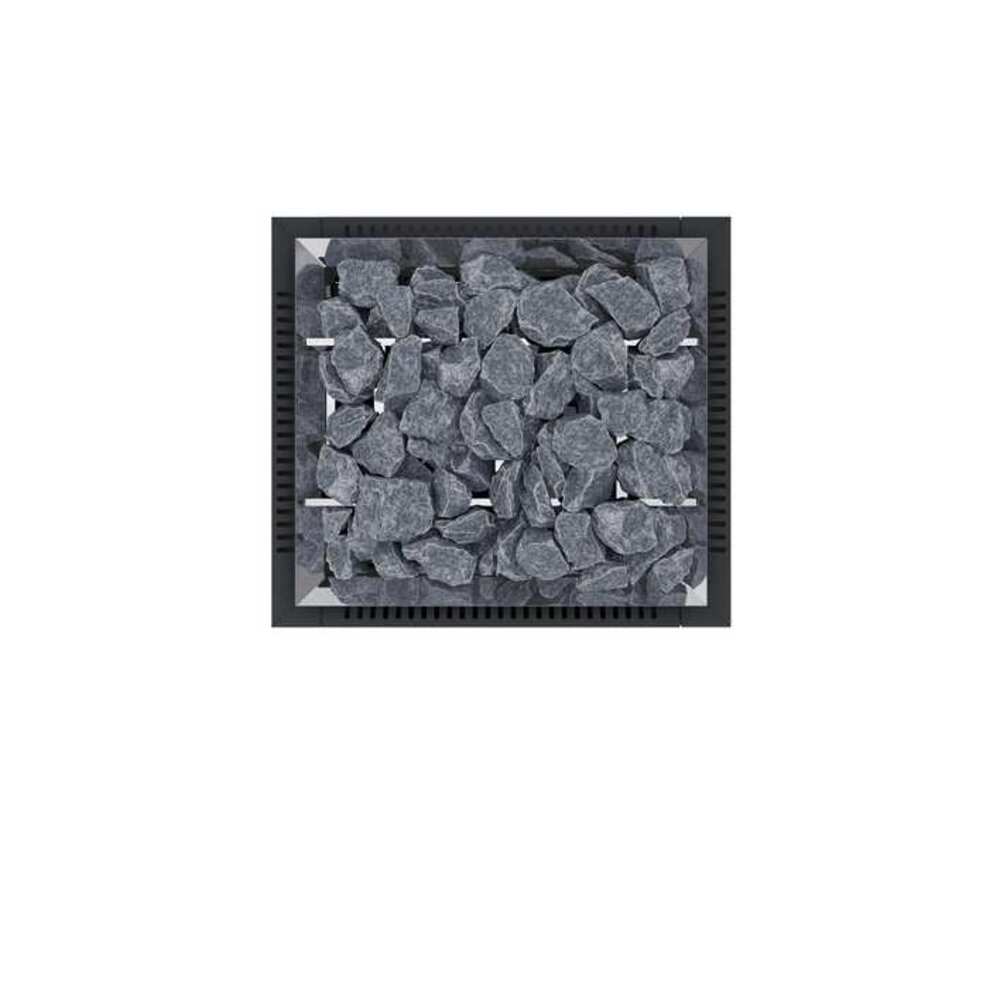

The extra large rock store with an opulent stone volume of approx. 100 kg is separated from the heating elements and thus ensures optimal air convection and guarantees a long service life for the heating elements. The unique V-shape profiles ensure effective and complete evaporation during the infusion. Fast heat-up times and powerful sauna infusions are guaranteed.
Power | Item no. |
36,0 kW | 948094 |
42,0 kW | 948045 |
48,0 kW | 948044 |
Power | For sauna cabin size | Min. size air inlet and outlet | Weight without rocks |
36,0 kW | 60 - 75 m³ | 50 x 10 cm | ~110 kg |
42,0 kW | 65 - 80 m³ | 50 x 12 cm | ~111 kg |
48,0 kW | 70 - 90 m³ | 60 x 12 cm | ~112 kg |
Electrical connection | 400 V 3N ~ 50/60 Hz |
Dimensions H/W/D, in cm | 100 / 90 / 80 |
Stone filling | approx. 100 kg |
Power extension required (36 / 42-48 kW) | PEB 36 / 1x PEB 18 + 1x PEB 36 |
