EOS 46.U
Behind-the-bench sauna heater

Wall-mounting model with thermostatic control with a temperature control range from 40 - 110 °C. For small size, private sauna cabins from 3 - 4 m³ with a heating capacity requirement of up to 3 kW. Heating time up to 4 h. Single phase 230 V power supply.

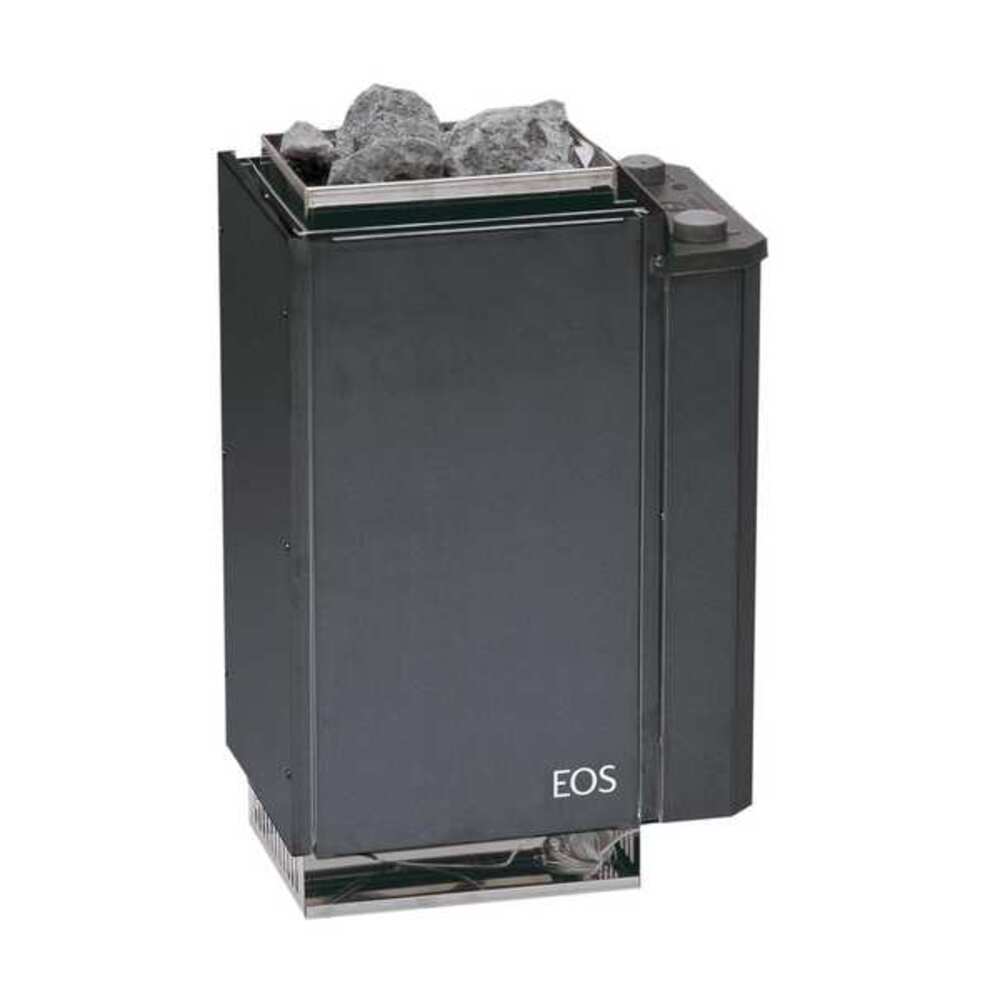

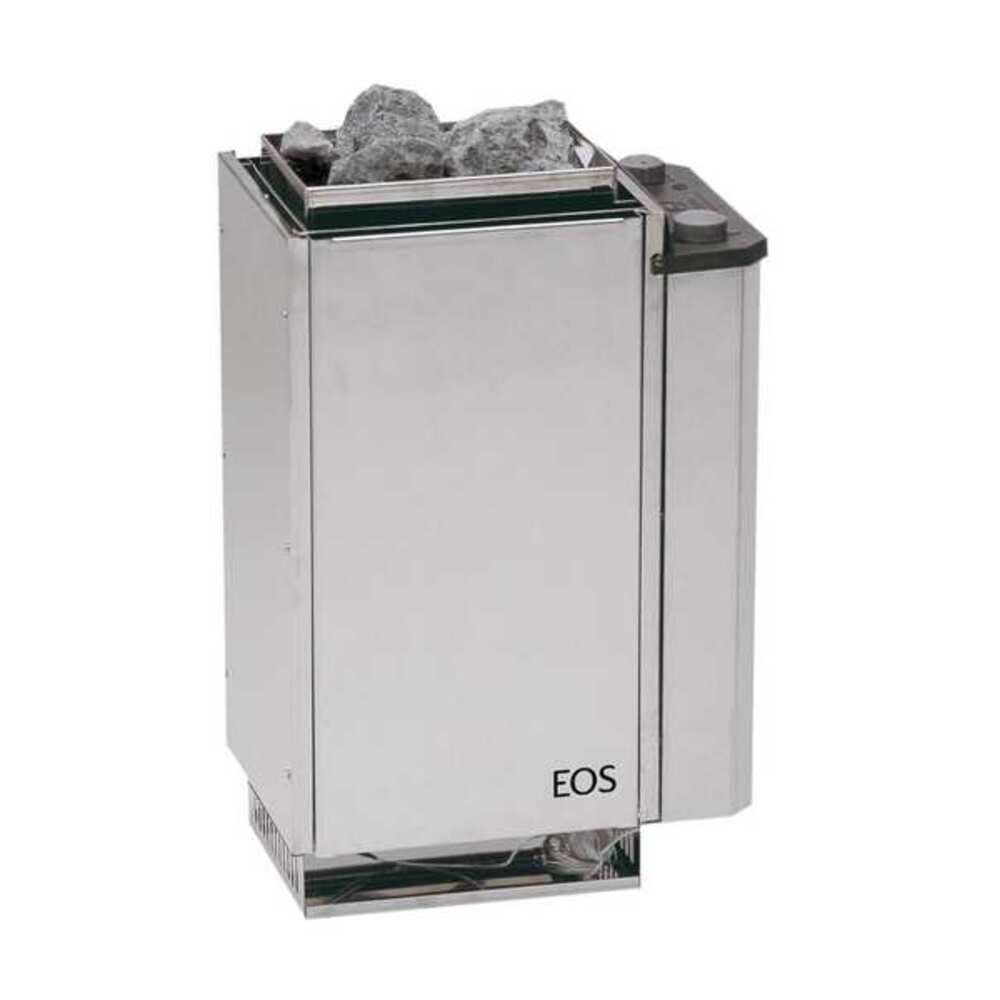

Durable triple shell stainless steel construction. Space-saving model - mounts directly to the sauna wall. Outer shell in polished chrome steel design or with anthracite pearl effect finish. The control unit may be placed on the left or on the right hand side by swapping the outer shell.
Rock store fits up to 8 kg stones.
| Item no. |
3,0 kW - Stainless steel | 941921 |
3,0 kW - Anthracite | 947348 |
Electrical connection | 230 V N ~ 50 Hz |
Power output | 3,0 kW |
Fuse | 1 x 16 A |
Temperature control range | 40 - 110 °C |
Installation dimensions H/W/D cm | 60 / 30 / 20 |
For cabin size | 3 - 4 m³ |
Min. dimensions of air intake and exhaust vents | 20 x 4 cm |
Weight without stones and package | 8,5 kg |
Stone filling | 8,0 kg |
