EOS LED Control

Compact control system for coloured light LED strips.

Includes a wireless remote controller for an easy and convenient control (radio signal based system - no eyesight needed!). Direct colour selection, color sequences, special effects and many other functions.

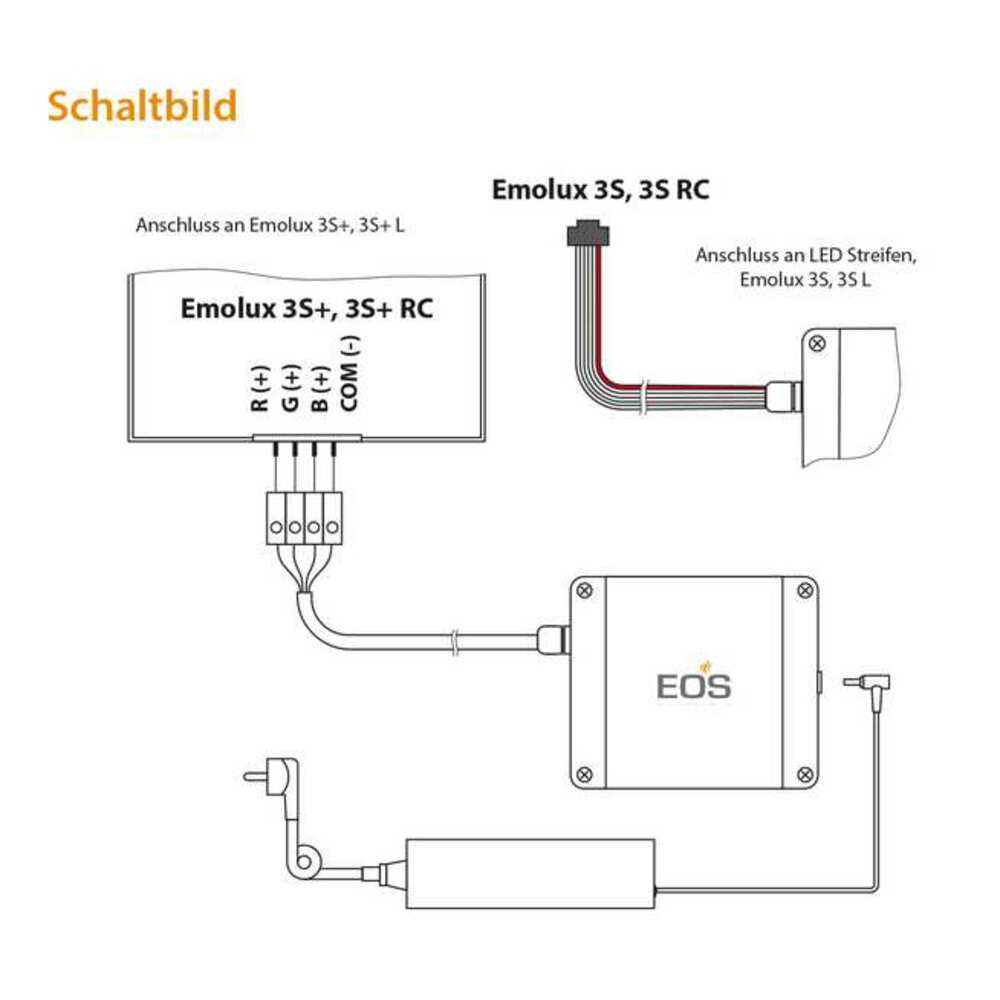

The system includes 230 V power adaptor with mains cord, control box with signal receiver and compact size wireless remote controller (cell battery included) with wall holder. The control box includes 5 m pre-mounted cable for connection of LED strips. Plug-and-play system - very easy to connect, no special installation needed. Remote control range - 20 m.

Power supply 230 V 1N 50 Hz. Output: 24 V ⎓, 72 W (3A / channel), dimmable. Polarity: RGB “+” and common minus.

Remote control 104 x 60 x 90 mm, CR2032 battery included. Unsuitable for LED with common “plus”.

• Universal stand-alone type - does not depend on any other system.
• 24 V ⎓ output, dimmable (voltage based).
• Suitable for voltage-based RGB LED strips with common “-”.
• Includes a compact wireless remote controller with a large scope of direct colour selection buttons and functions.
• Remote controller on radio signal basis - does need eyesight.
• Includes 5 m pre-mounted cable with 6-pin connector.
• Includes power adaptor 230 V with mains cord.
