EOS LED Strip

Coloured light and white light type LED strips.

LED light strips – new improved construction. Slim connector on both ends for a chain-type connection. With mounting holes (with 16.5 cm hole distance) for quick installation on any flat surface.

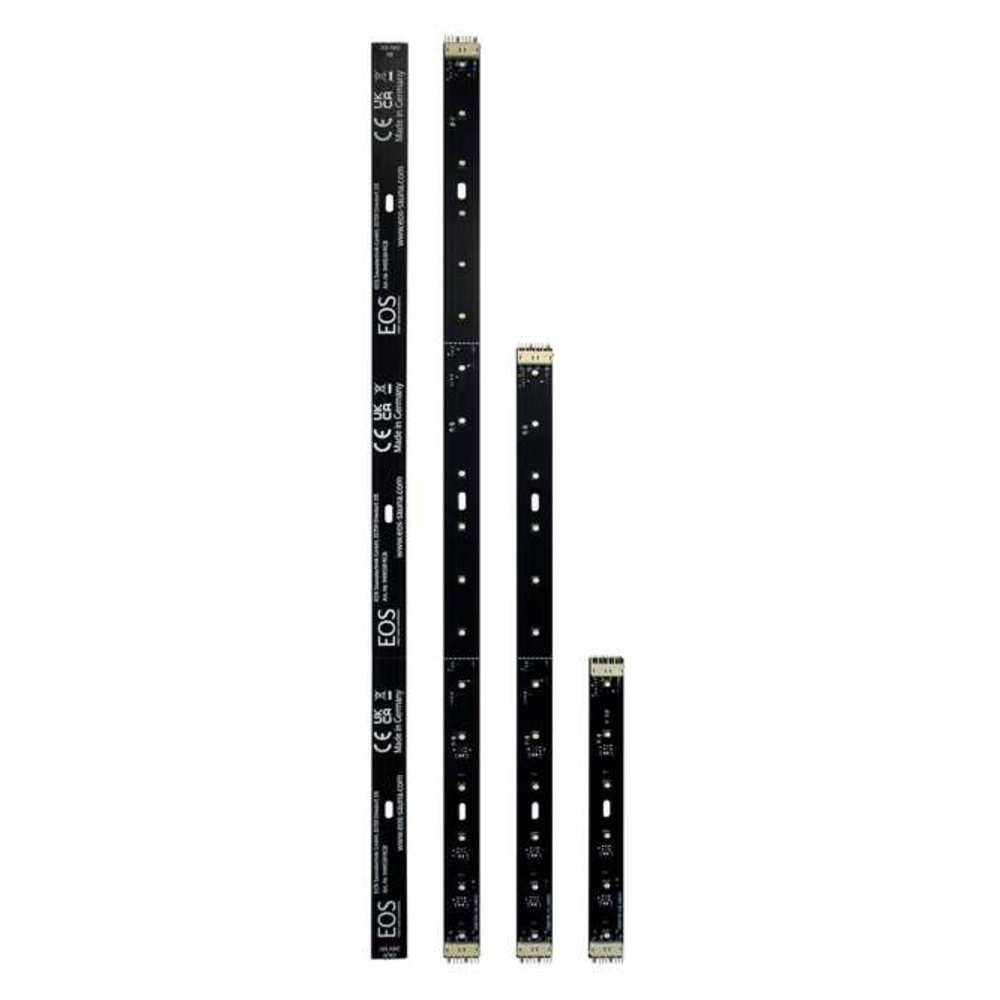

Three basic colours, mixed colours possible (RGB type). Dimmable (voltage based). Suitable for humid sauna operation (for steam rooms take a look at EOS LED Strip flex).

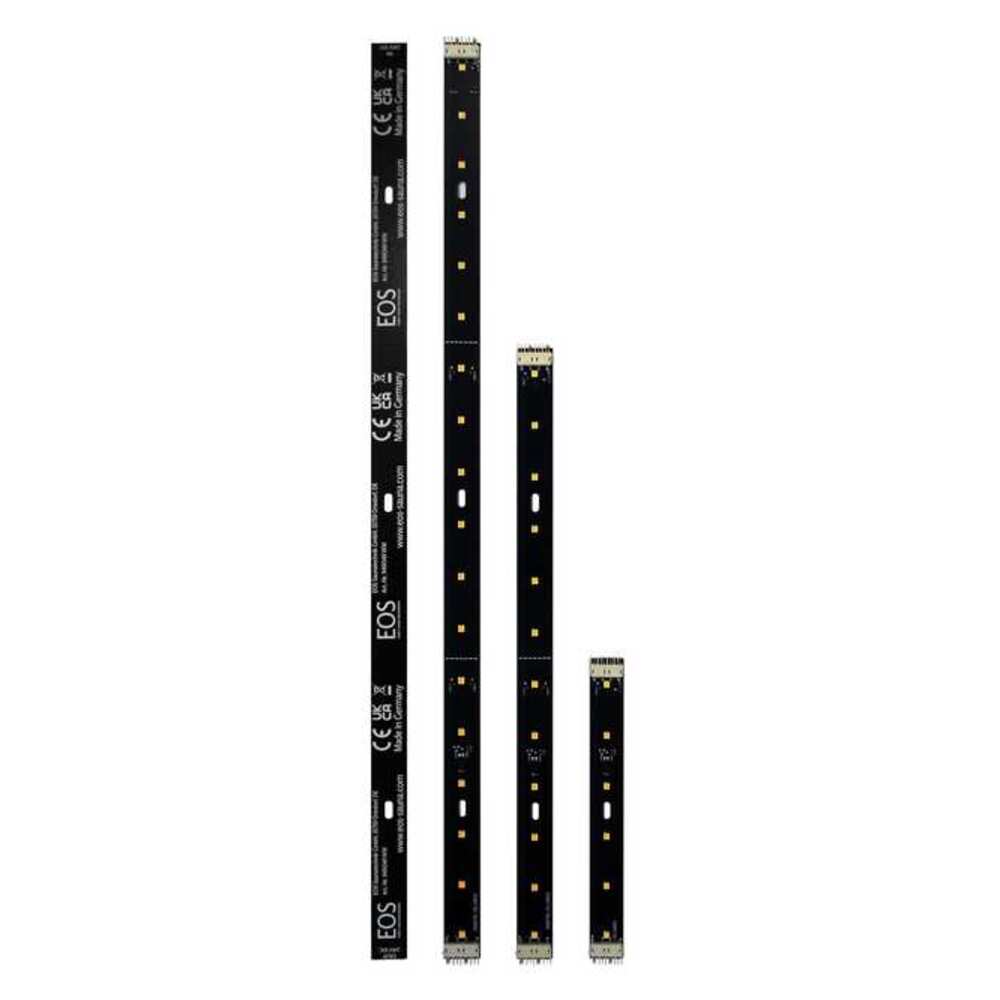

Available in three different sizes as RGB coloured light type and as white light type (3000 K). With optional connection boards, several LED chains can be connected to a common group (e.g. 2x backrest).

24 V ⎓ voltage, power output 3.6 - 4 W. Size LWH 495 / 330 / 165 x 15 x 5 mm.

• Very high heat resistance up to at least 140 °C – may be installed at the sauna ceiling without special heat protection.
• Every single LED with individual overheating protection, automatic reduction of the light intensity at 110 °C to optimize service life.

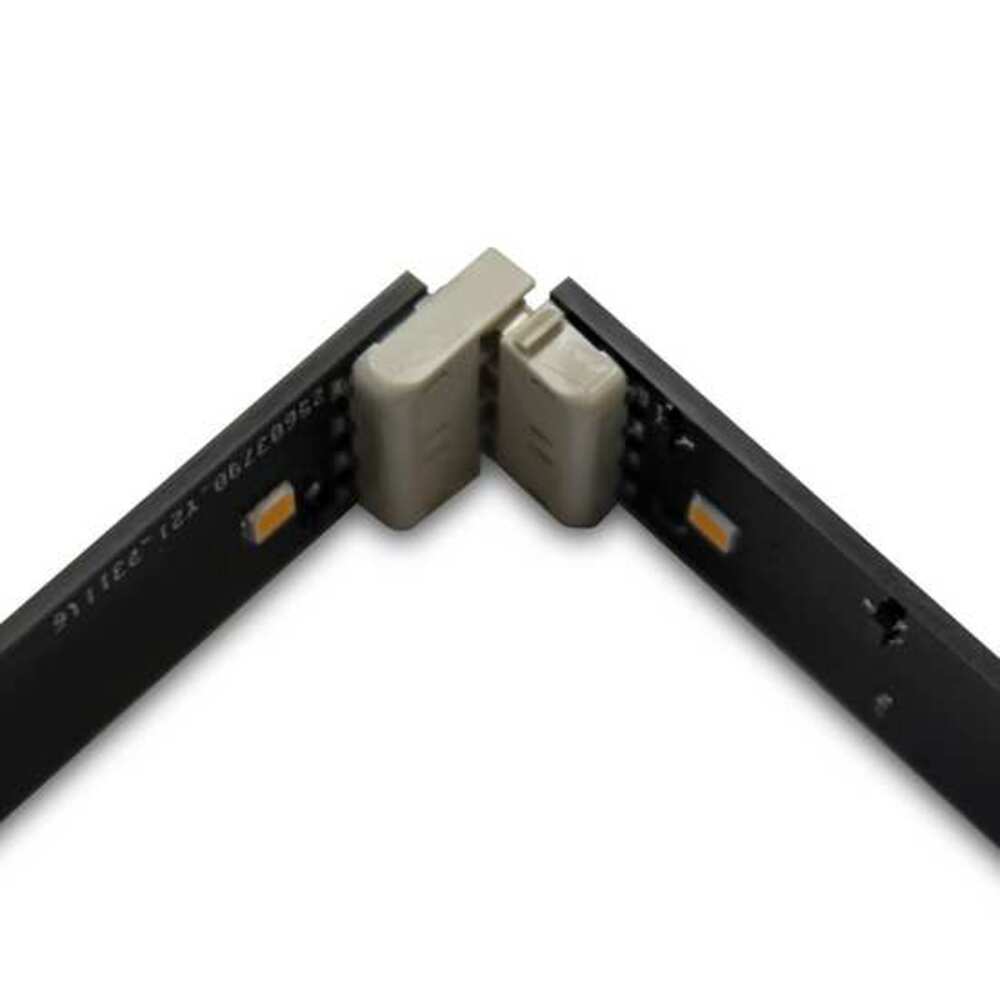

• Thanks to the innovative connectors, connection is also possible at an angle of up to 90° (corner installation).
• Three lengths available, models 495 mm and 330 mm can be shortened.
• Exceptionally high light output – up to 160 lumen per watt.
• Chains up to 12 pieces possible (with 495 mm model), several groups of chains possible.
• Very simple and quick installation thanks to mounting holes and slim connectors.
• Available as RGB type and as warm white light (3000 K) type.
• Control e.g. with the coloured light module SBM-FL75/150, stand-alone controller or transformer.
