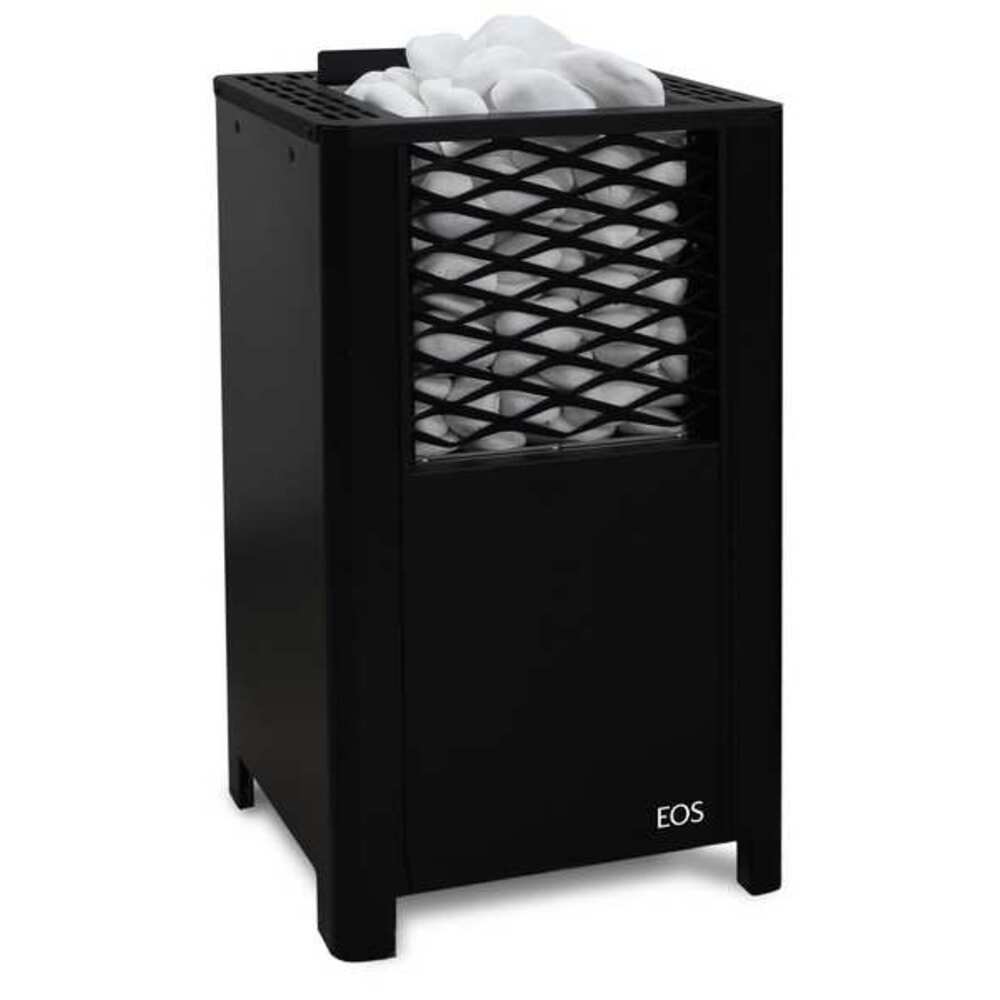

EOS 46.U
Behind-the-bench sauna heater

The floor-standing model is ideal for private and commercial operations of the Finnish sauna. The unique design of the front grill prevents even small stones from falling out. Thanks to the flat rear wall with recessed terminal box, EOS FinnRock is ideal for installations in front of glass panels or in the centre of the sauna.
Completely made of durable stainless steel, outer shell in anthracite pearl effect finish. Very robust, long-lasting construction. Extra large rock store for powerful sauna infusions and high temperature stability.
Rock store fits up to 40 kg stones.
Also available with high-quality, scratch-resistant matt black finish.
Optional: Deco rear wall cover, guard rail brackets, wooden guard rail with mounting brackets
| Power | Item no. |
|---|---|
| 7,5 kW | 945663 |
| 9,0 kW | 945664 |
| 12,0 kW | 945719 |
| Power | Item no. |
|---|---|
| 7,5 kW | 947861 |
| 9,0 kW | 947862 |
| 12,0 kW | 947863 |
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse | 3 x 16 A |
Fuse protection (PEB) | no / 3 x 16 A (only 10,5 and 12,0 kW) |

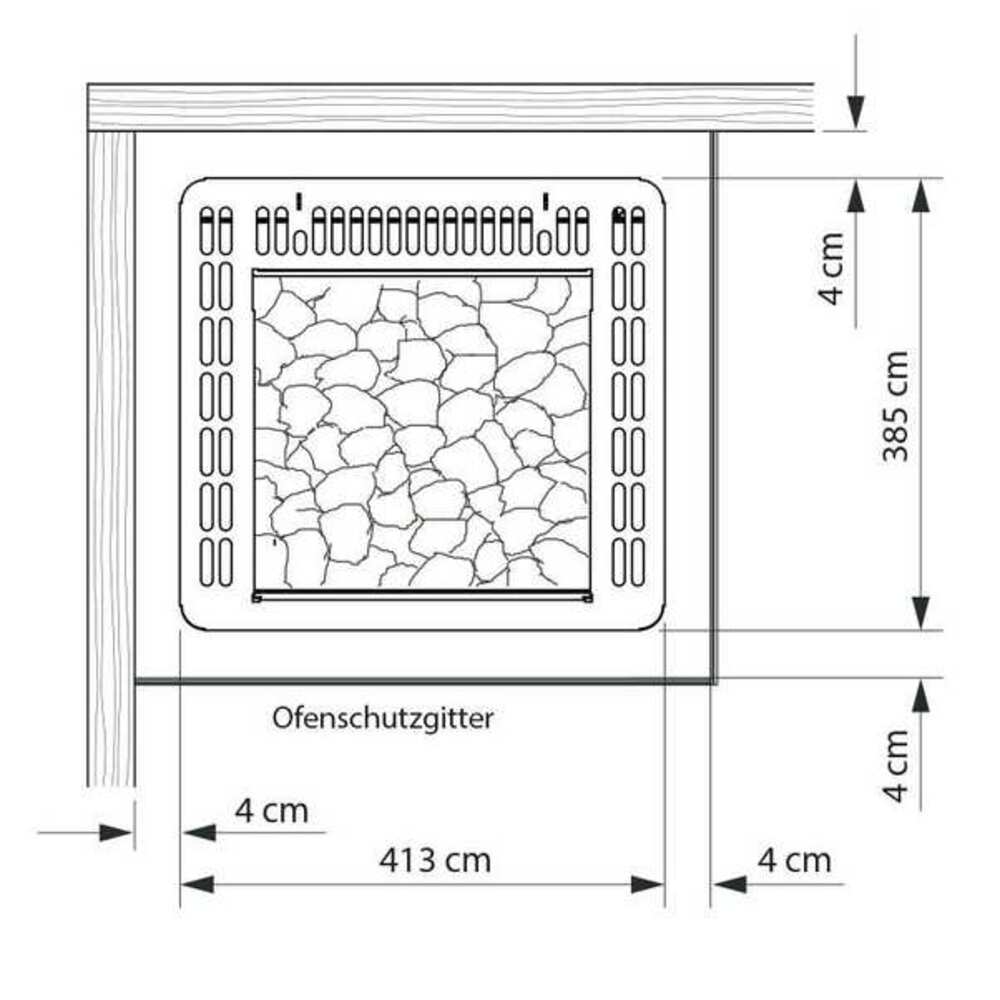

Dimensions H/W/D, in cm | 76 / 41,3 / 38,5 |
For cabin size (7,5 / 9,0 / 12,0 kW) | 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ |
Min. size of air inlet and outlet (7,5 / 9,0 / 12,0 kW) | 35 x 5 cm / 35 x 6 cm / 35 x 7 cm |
Weight without stones and package (7,5 / 9,0 / 12,0 kW) | 27 kg / 28 kg / 28 kg |
Stone filling | 40 kg |
Power extension required | no / PEB 10 (only 12,0 kW) |
