EOS EmoTec IR
Description
Description
Premium-class electronic control unit for infrared warming cabins for private and commercial operation.
Control unit for infrared cabins with 3 outputs and dimming function.
Premium class electronic control unit for IR cabins with 3 separate outputs and dimming function. For private and commercial use. Based on the proven EOS EmoTec sauna control unit construction.
Your Advantages

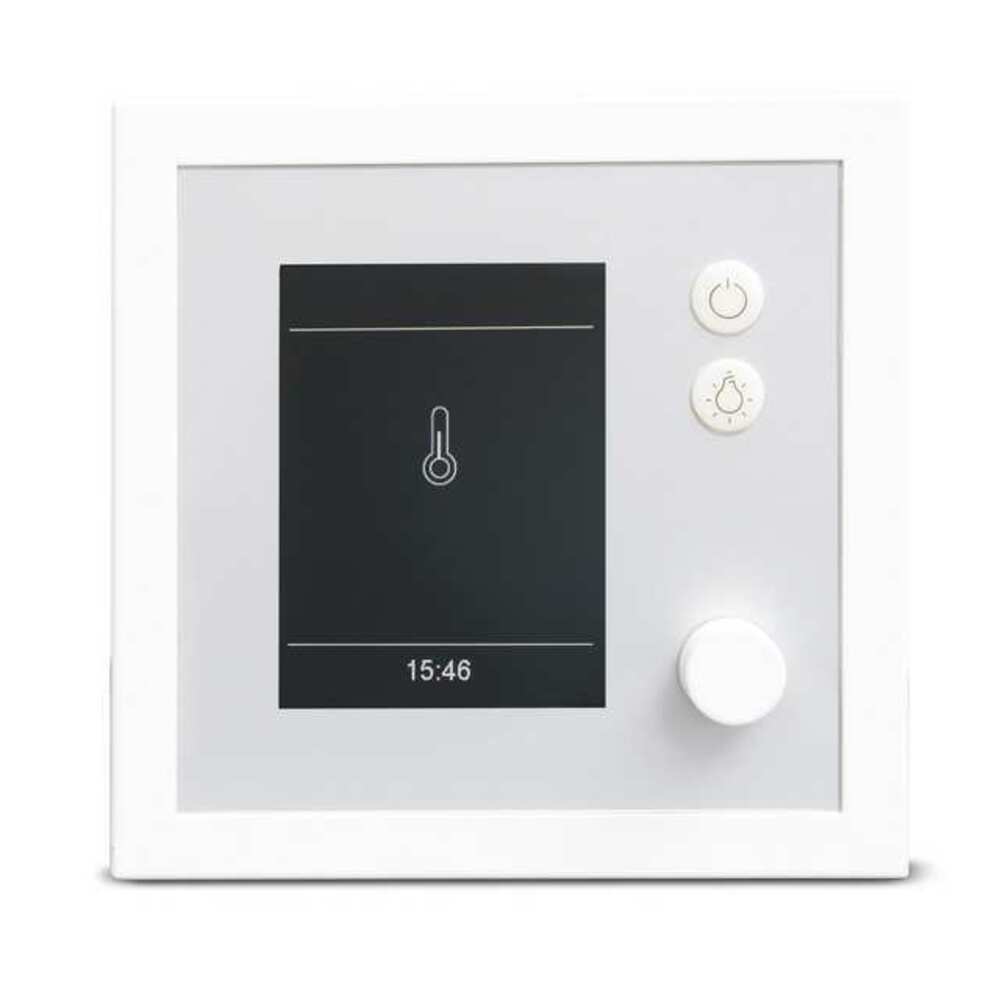

- Compact, slim size display panel (flush- / surface-mounting).
- Comfortable, simple operation thanks to the colour TFT display with multi-language menu navigation in 19 languages.
- Temperature control range 30 - 70 °C
- Heating control as per air temperature or heat intensity.
- 3 separate outputs: 2 x 1500 W dimmable, 500 W switchable.
- Up to 5 channels - allows to create individual zones or heating groups (e.g. back, front, side, etc.).
- Supports all types of IR emitters and heating foils.
- Total power output can be increased to 10.5 kW with extension modules SBM-IR.
- Numerous functions as in EOS EmoTec D sauna control unit.
- Includes temperature sensor with 5 m cable.
Model Overview
Item no. |
947044 - anthracite / silver |
947045 - white / silver |
Technical Specifications
Electrical connection | 230 V 1N ~ 50Hz 16 A |
Power output | 3.500 W |
Max. load for outputs | IR-1: 1.500 W IR-2: 1.500 W IR-3: 500 W |
Temperature control range | 30 - 70 °C |
Heating time limitation | 6 h / 12 h / unlimited |
Dimensions H/W/D in mm | 127 x 130 x 25 |
Ambient temperature in operation | -10 to +40 °C control panel -10 to +40 °C relay box |
Weight without packing | 1,5 kg |
