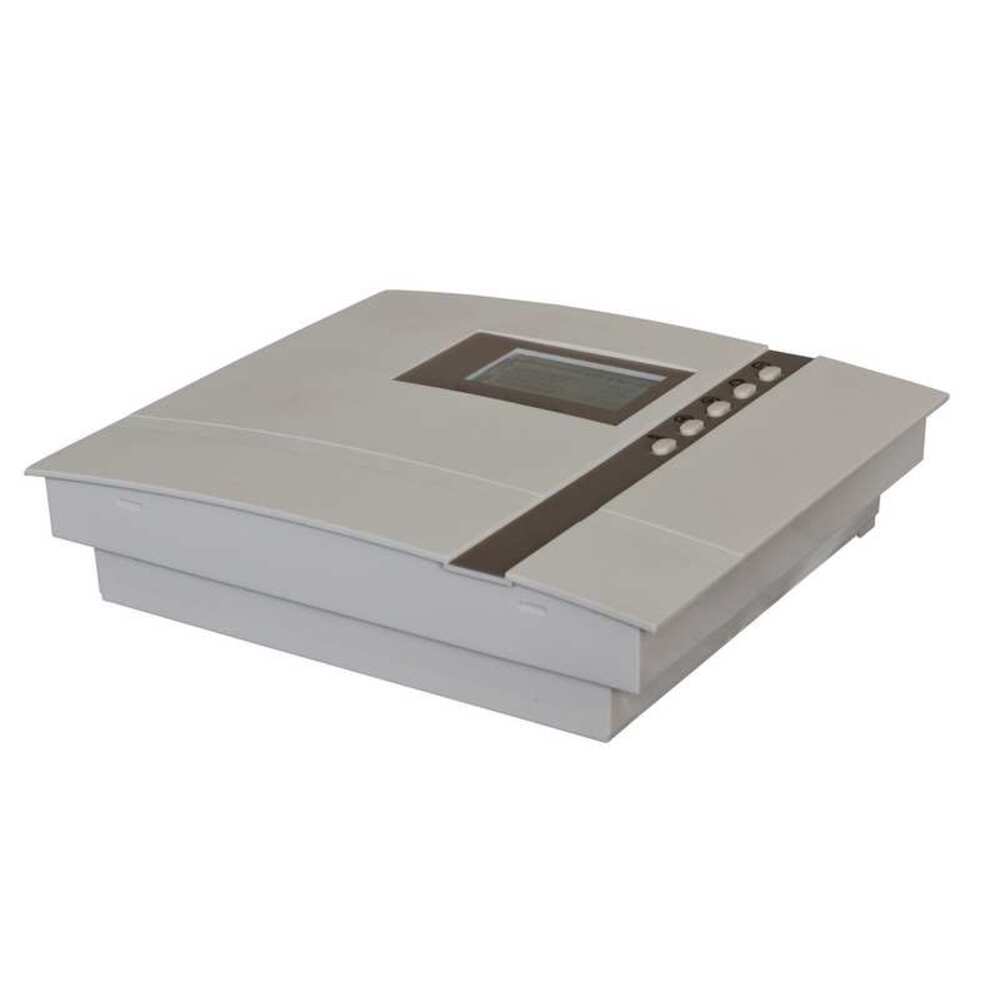

EOS Econ D1

Electronic sauna control unit for private use.

Electronic sauna control unit for the dry (Finnish) sauna with LCD display with multi-language menu navigation. Affordable value model with all essential control functions for private sauna cabins.

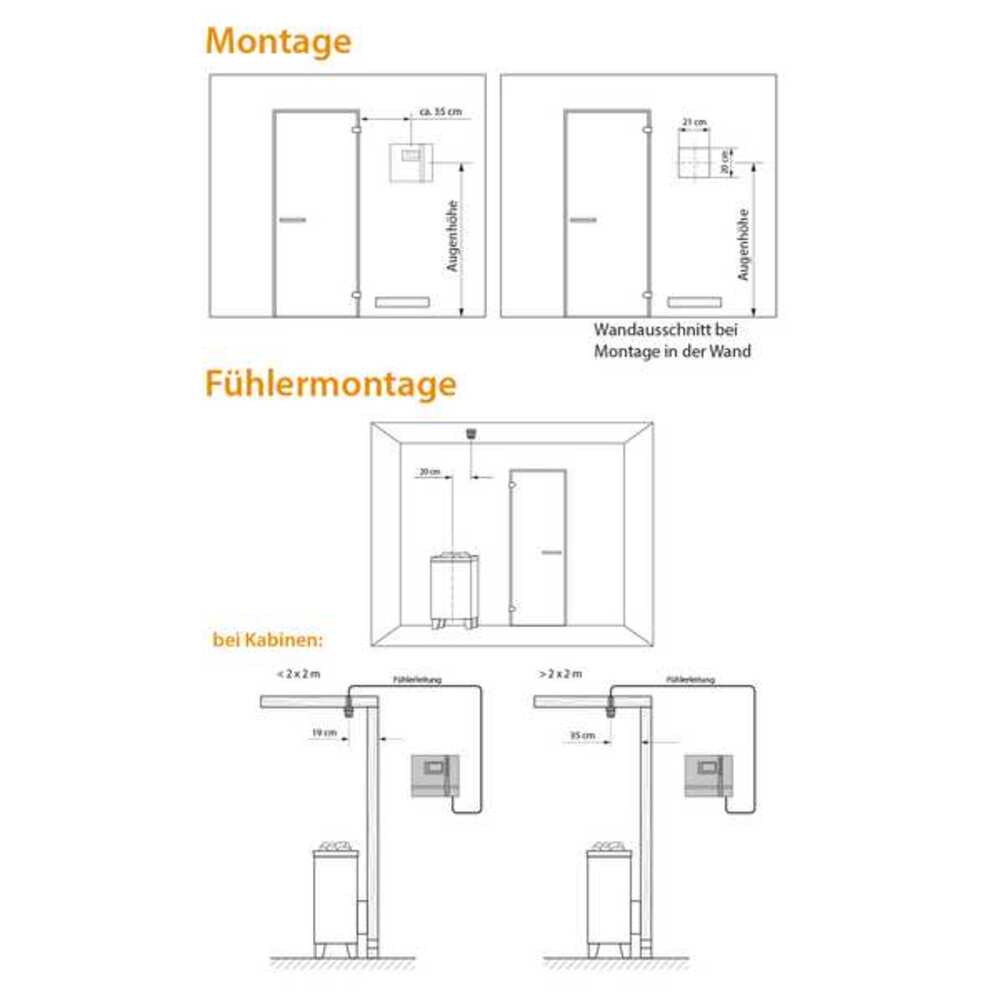

Modern, slim housing for surface or semi-recessed mounting. Only 67 mm housing depth. Cable connections at the rear side.

Illuminated, high contrast LCD display with menu navigation in 12 languages, control range 30 °C - 115 °C, clock, output for cabin light 230V, heating time limitation up to 6 h, Life-Guard function, remaining heating time display. With keypad lock (child lock). Safety temperature limitation 139 °C. For sauna heaters up to max. 9 kW power.

Inc. temperature sensor with 2 m cable.

• Illuminated high-contrast LCD display with 12 languages menu navigation.
• Fast, simple installation and setup.
• Affordable entry-class model with all essential control functions.
• Modern, slim-design housing, only 67 mm depth.
• Temperature control range 30 °C - 115 °C.
• Heating time up to 6 hours.
• Switching for cabin light, keypad lock, “Life-Guard” function.
• For sauna heaters up to 9 kW (switching capacity 9 kW, not extendable).
