EOS 46.U
Behind-the-bench sauna heater
EOS Cubo Avantgarde
Description
Description
Discontinued model
Your Advantages
- Robust, durable and service-friendly construction,

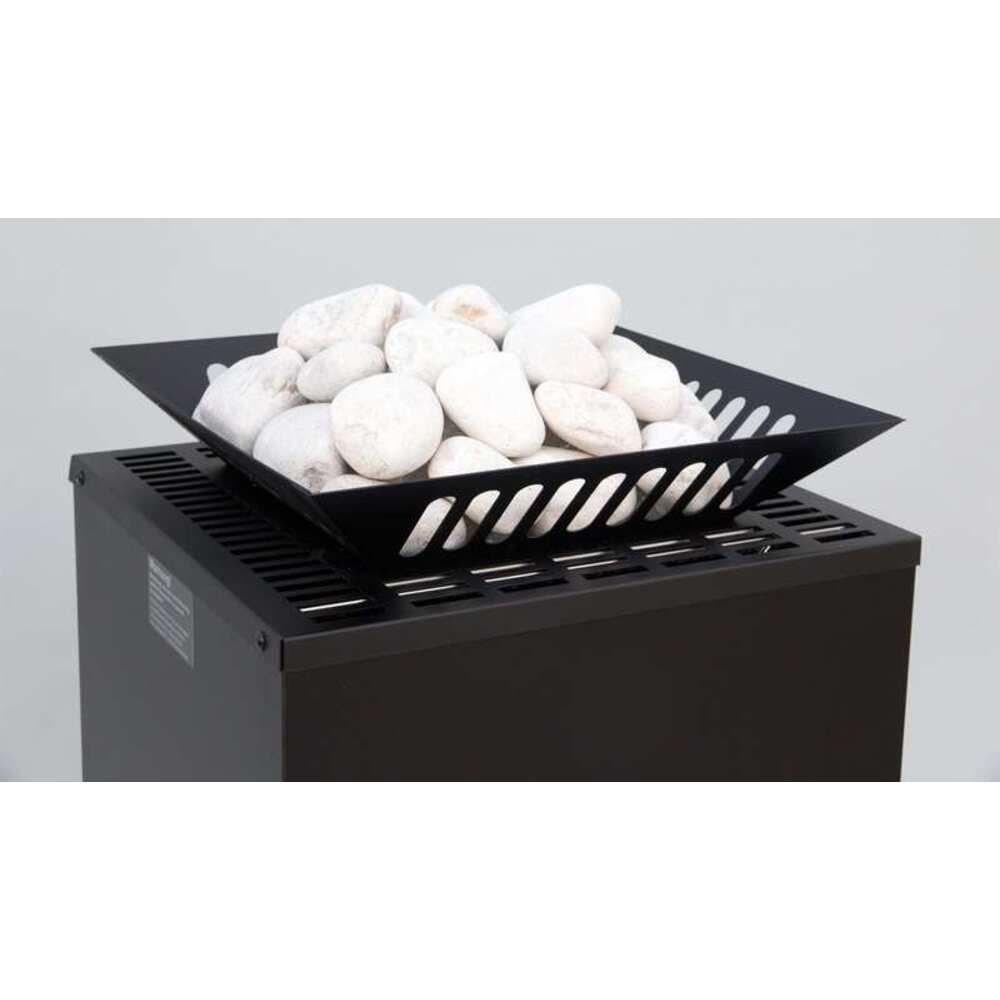

- With rock store attachment and inclusive quartz stones.
- Luxurious black finish on all sides, including the top.
- Suitable for private and commercial saunas.
- Compact size - only 38,5 cm depth.

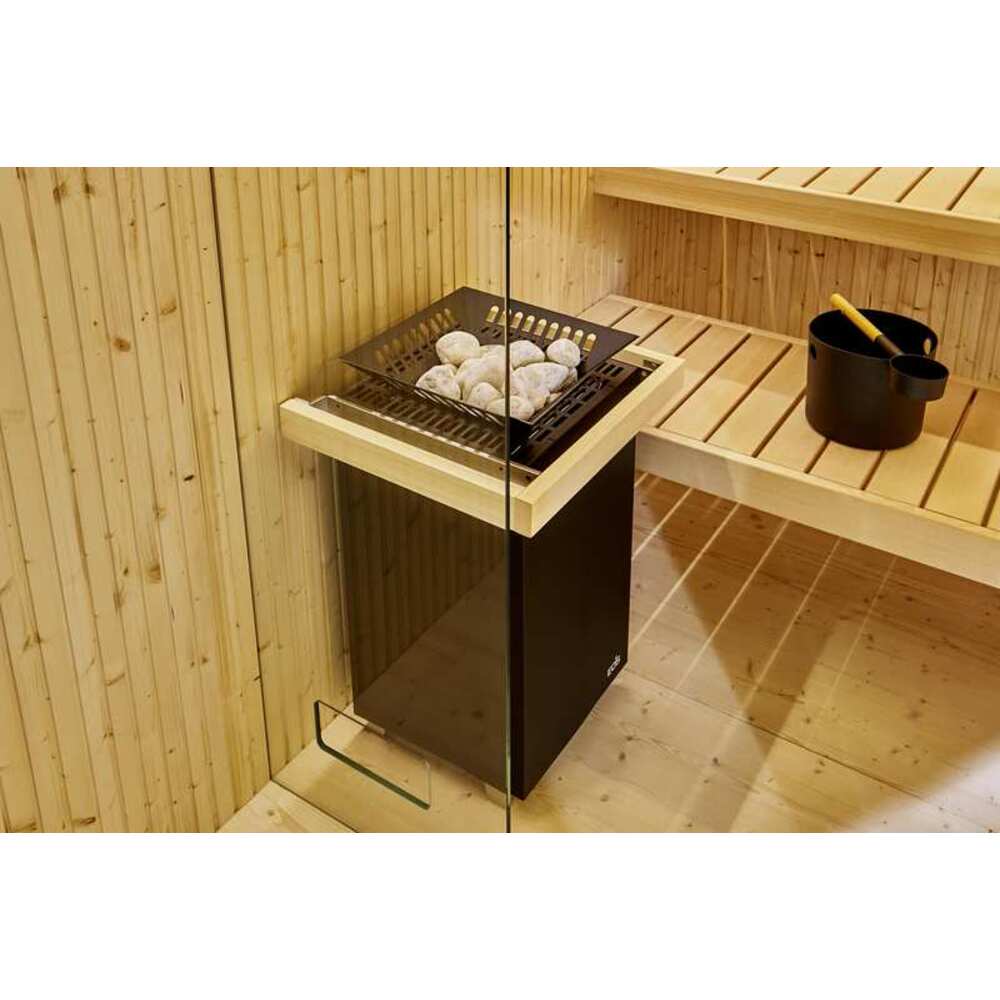

- Uniform appearance on all sides - perfect for installation in front of a glass panel or in the centre of the sauna.
- 25 kg sauna stones + 10 kg quartz stones included in the delivery.
Model Overview
Power | Item no. |
9,0 kW | 947109 |
10,0 kW | 947885 |
10,5 kW | 947370 |
12,0 kW | 947110 |
Technical Specifications
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse protection (control unit) | 3 x 16 A |
Fuse protection (PEB) | no (9,0 kW) / 3 x 16 A |
Dimensions H/W/D, in cm | 72 / 40 / 38,5 |
For sauna cabin size (9,0/10,5/12,0 kW) | 9 - 14 m³ / 12 - 16 m³ / 14 - 18 m³ |
Min. size air inlet and outlet (9,0/10,5/12,0 kW) | 35 x 6 cm / 35 x 7 cm / 35 x 7 cm |
Weight withouth rocks | 28 kg |
Stone filling | 25 kg + 10 kg quartz stones |
Power extension required | no (9,0 kW) / PEB 10 |
