EOS 46.U
Behind-the-bench sauna heater

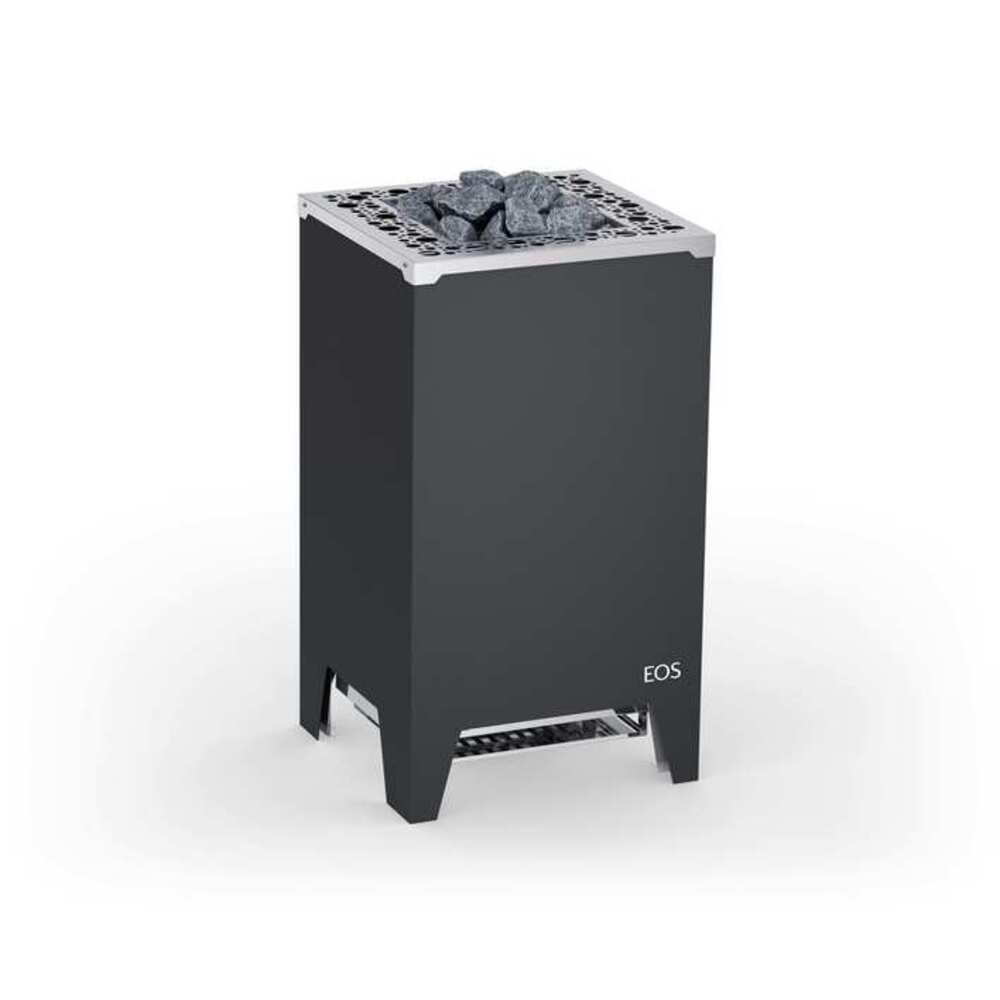

EOS Cubo 2
Description
Description
360° Look

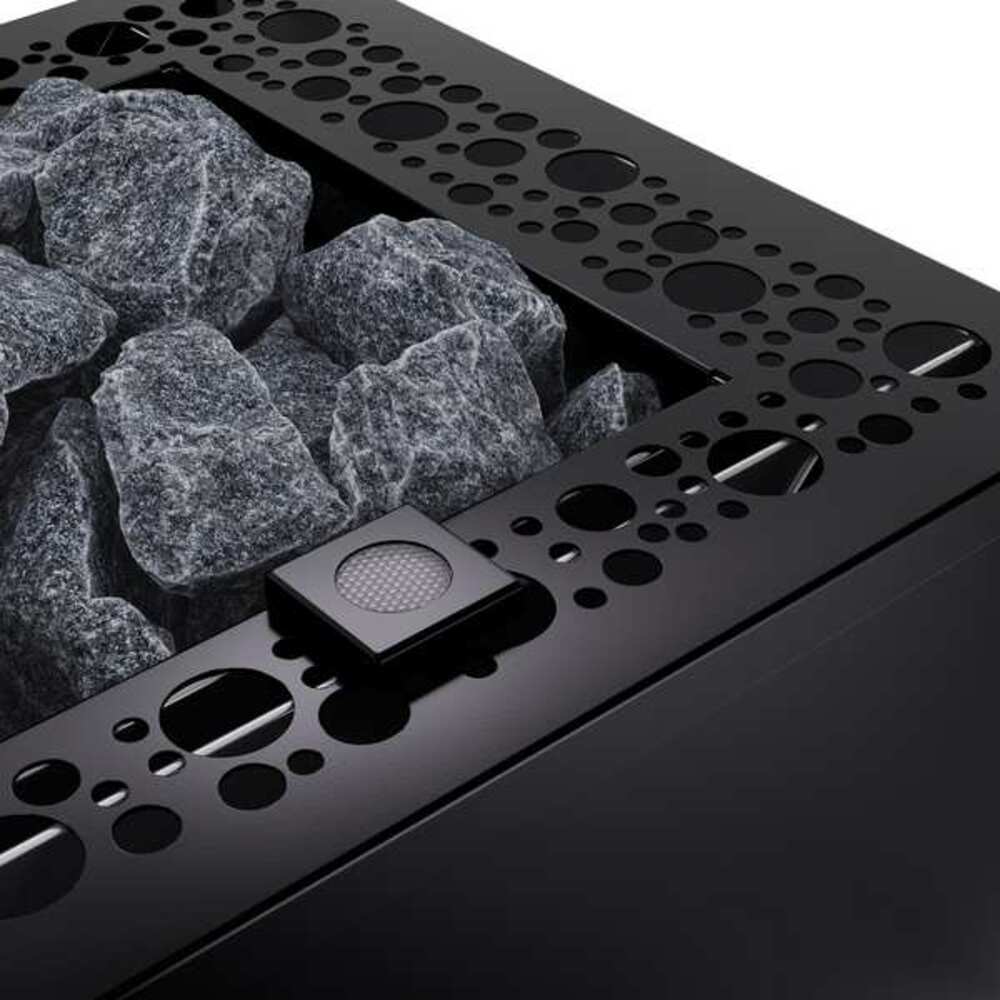

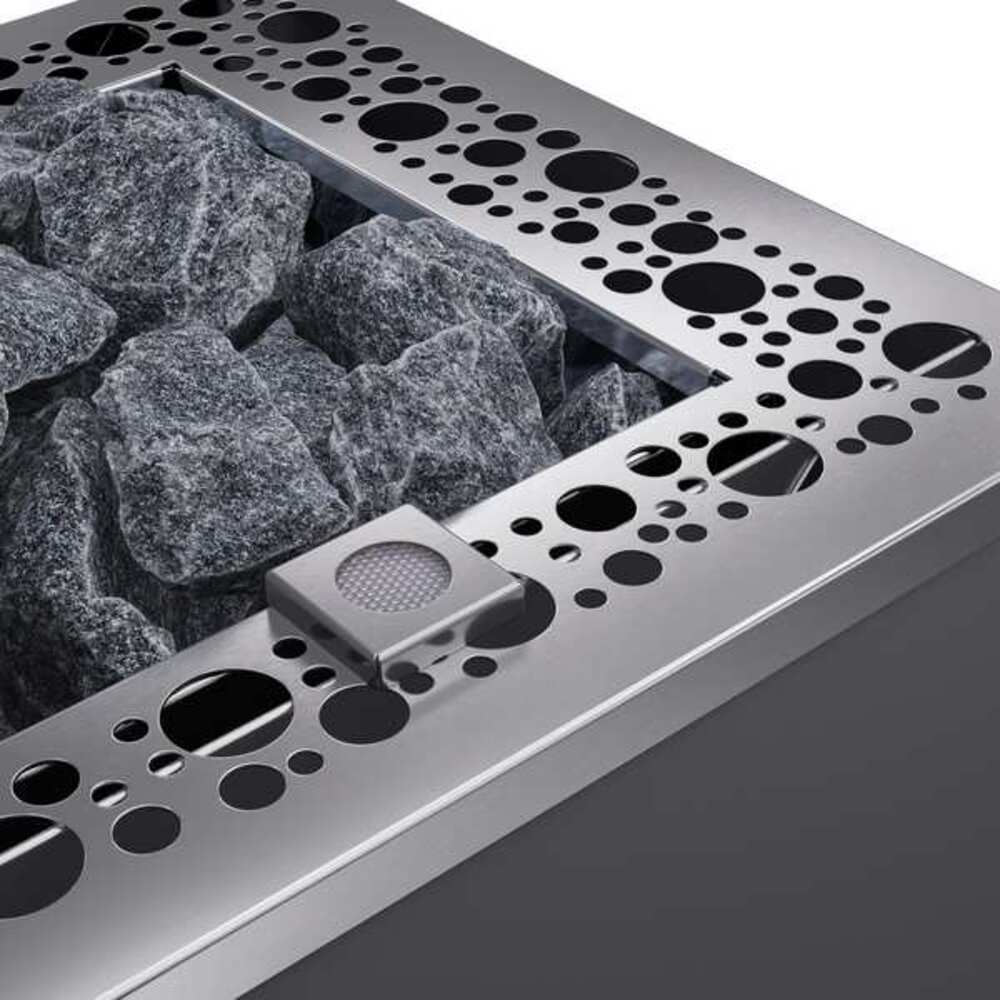

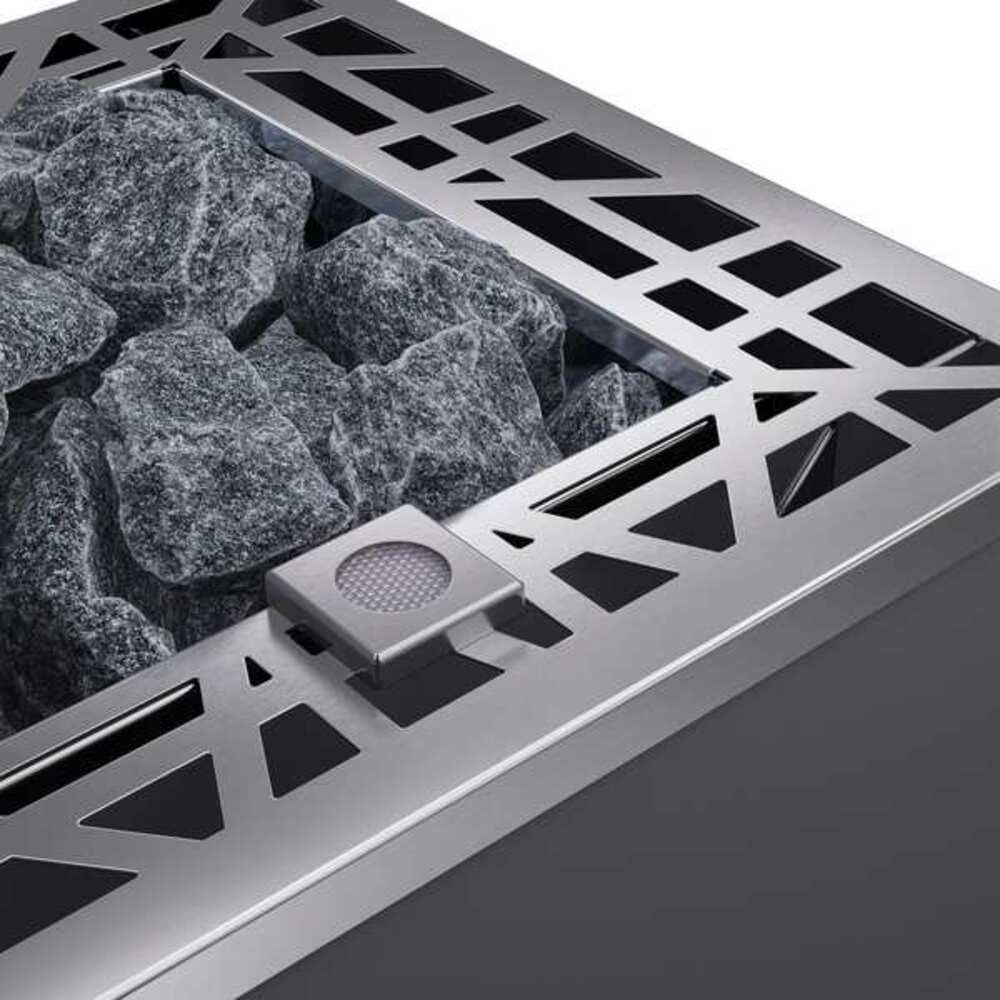

For a safe sauna experience

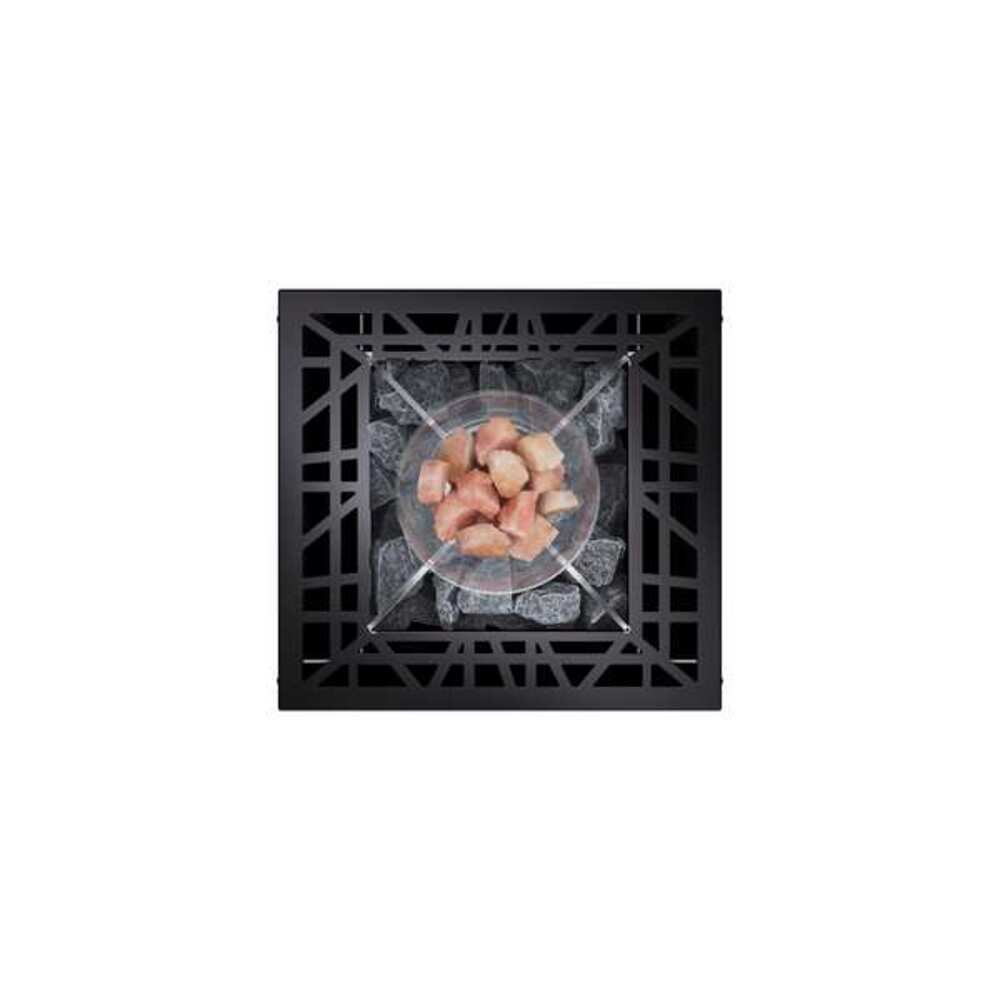

Suitable essence bowl
Your Advantages

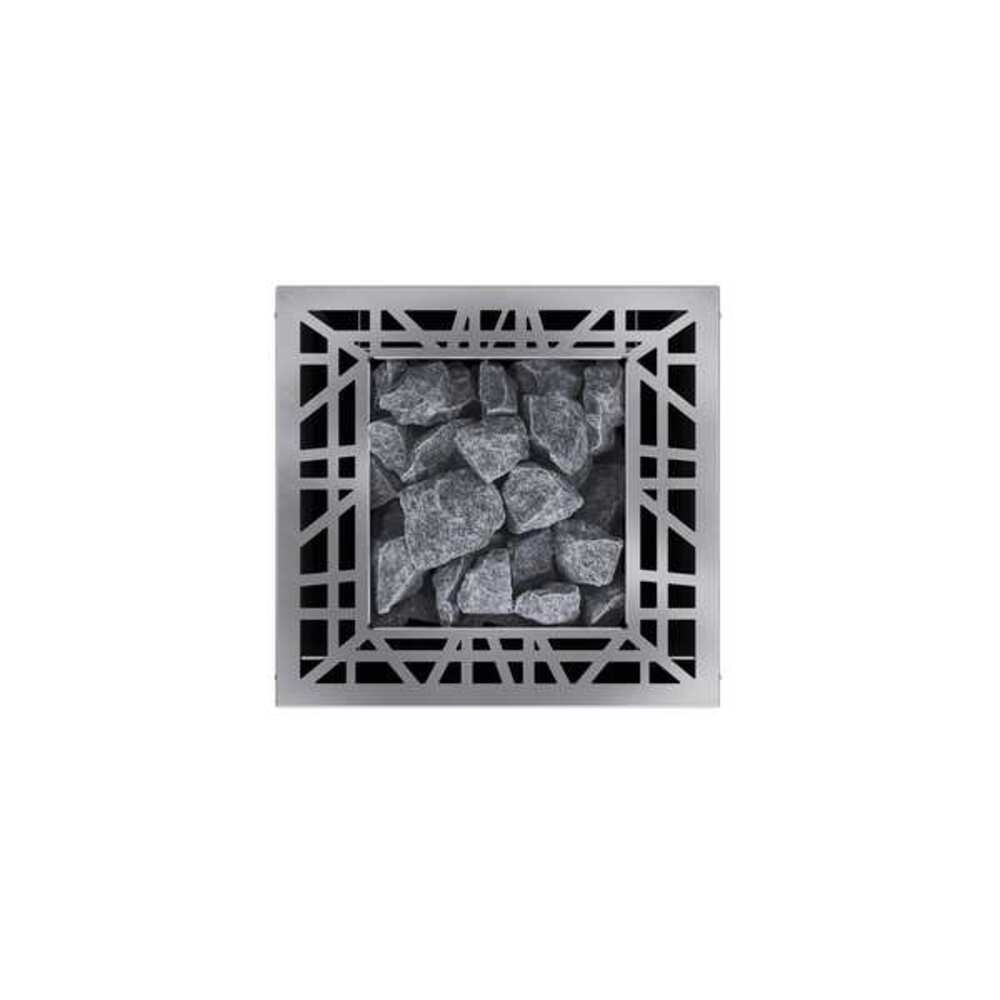

- Very elegant, contemporary design with fully redesigned body and top cover in two stylings.

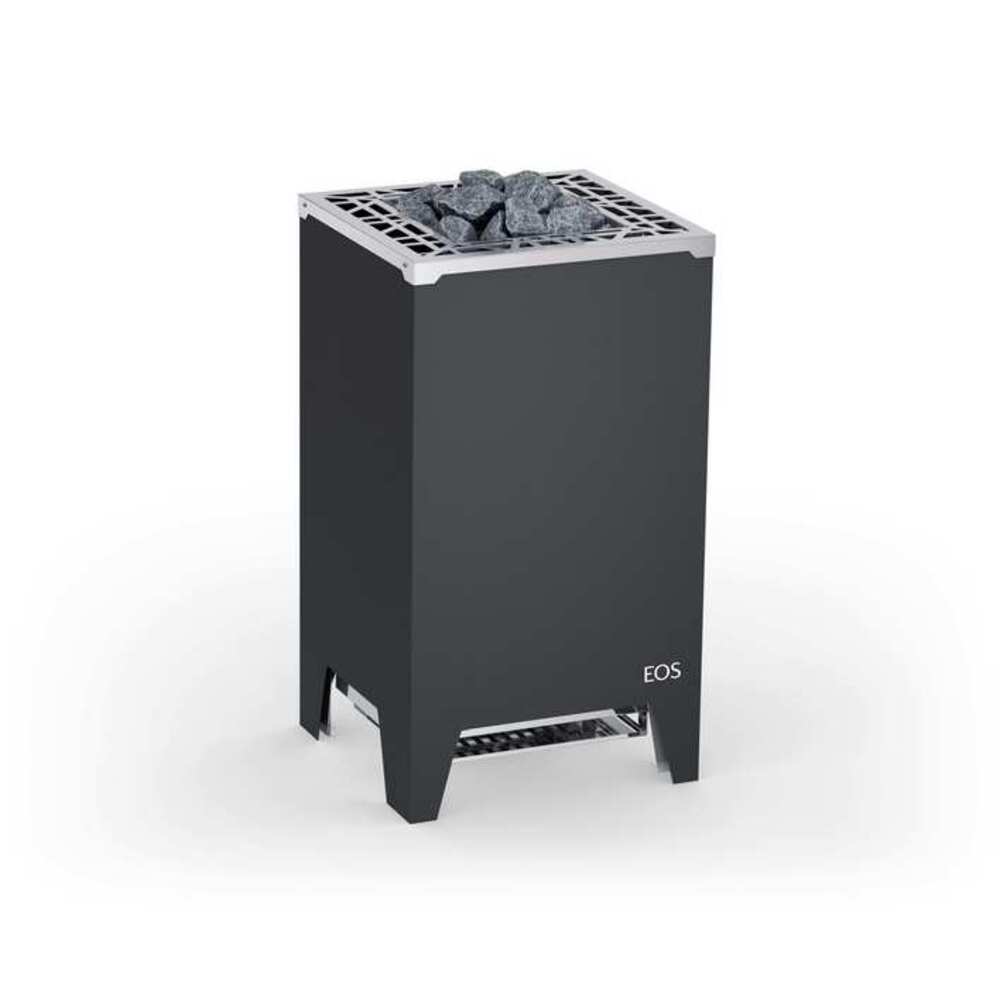

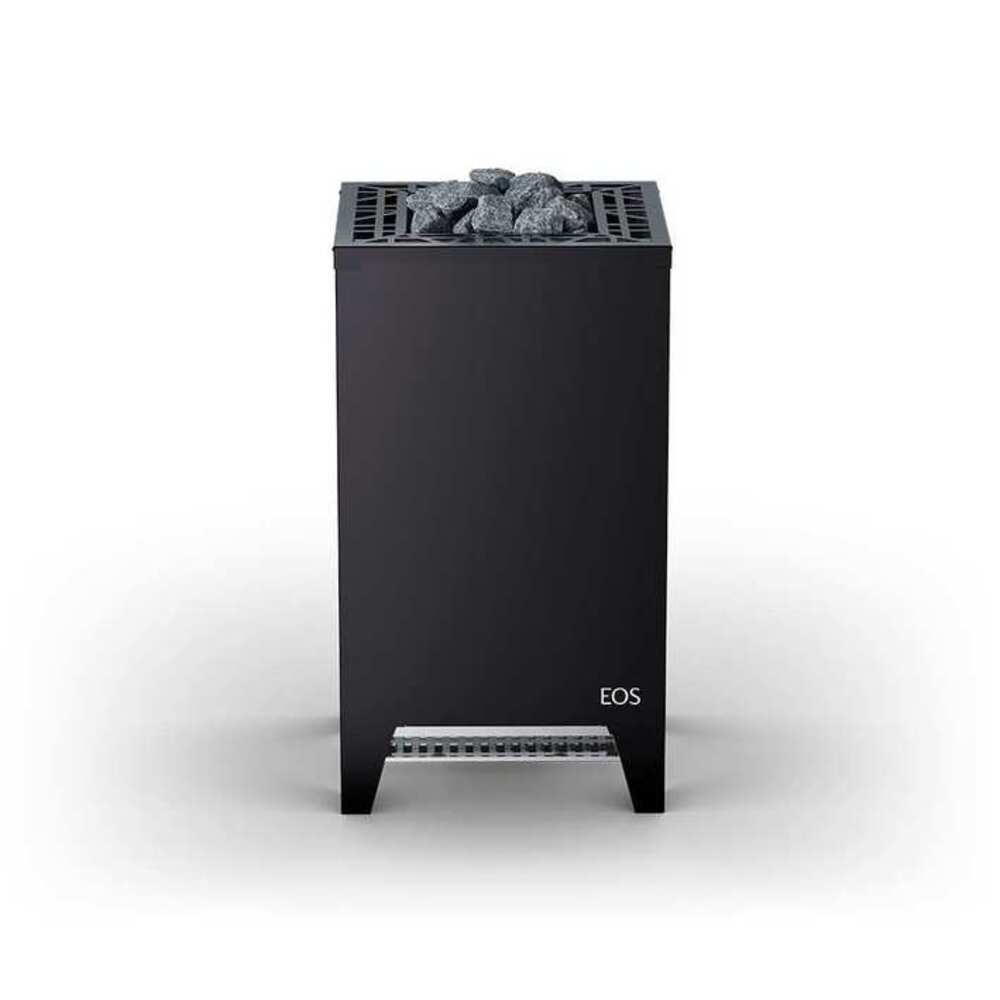

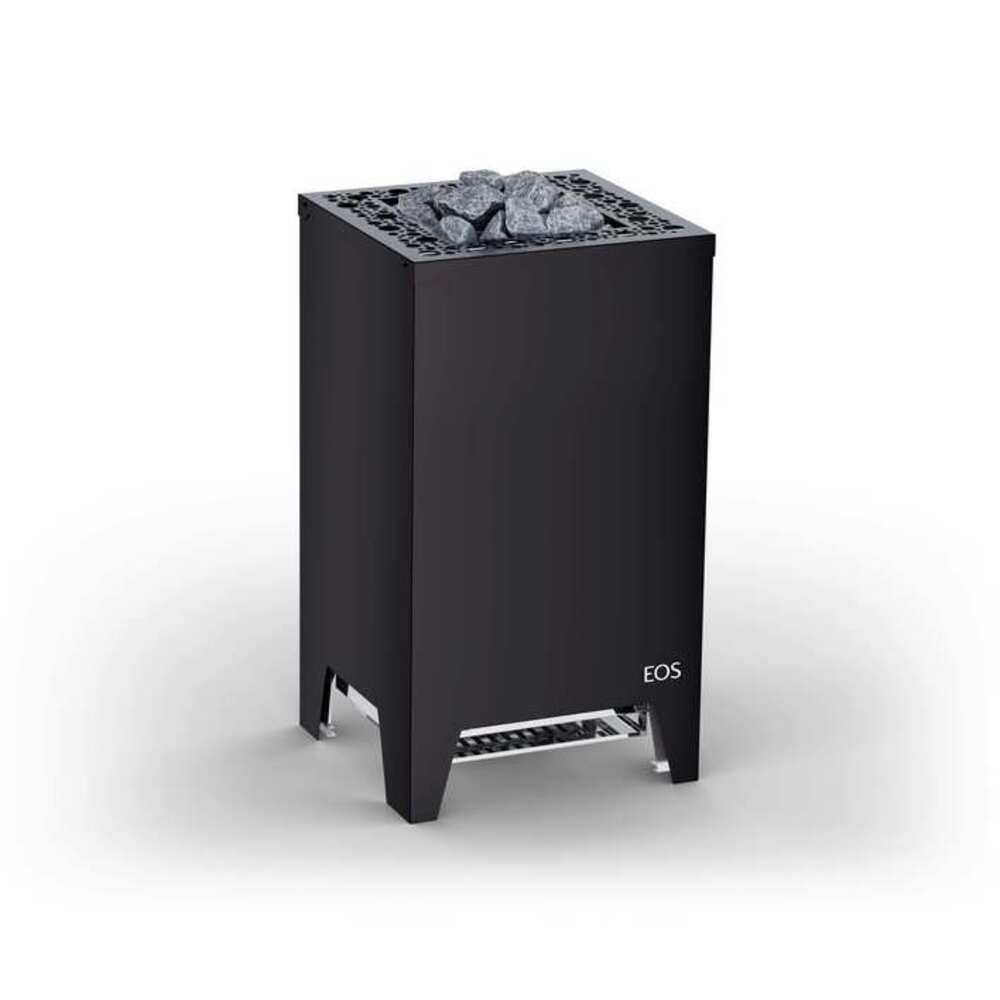

- Available with classic anthracite or with matt black finish.
- Proven, highly durable and long-lasting construction.
- Optimal relation between stone volume and air convection system for fast heat-up times and powerful water splashes.

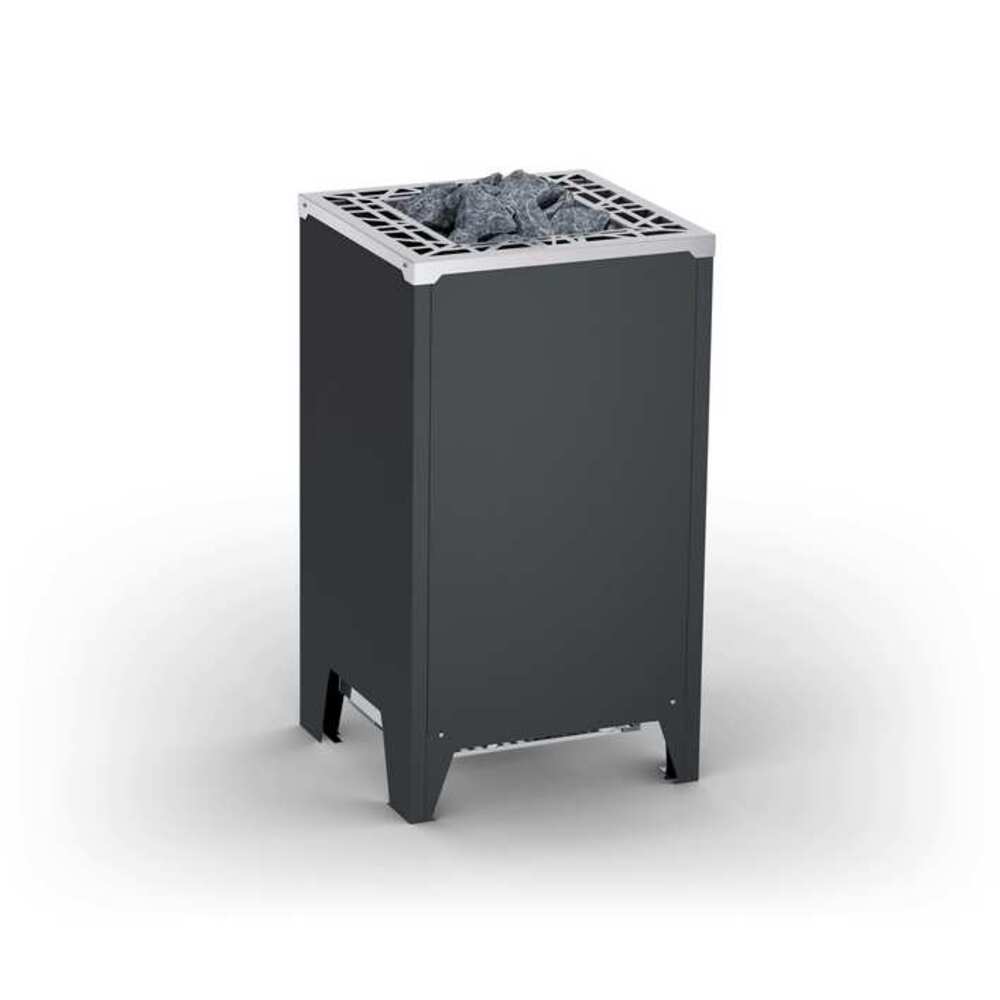

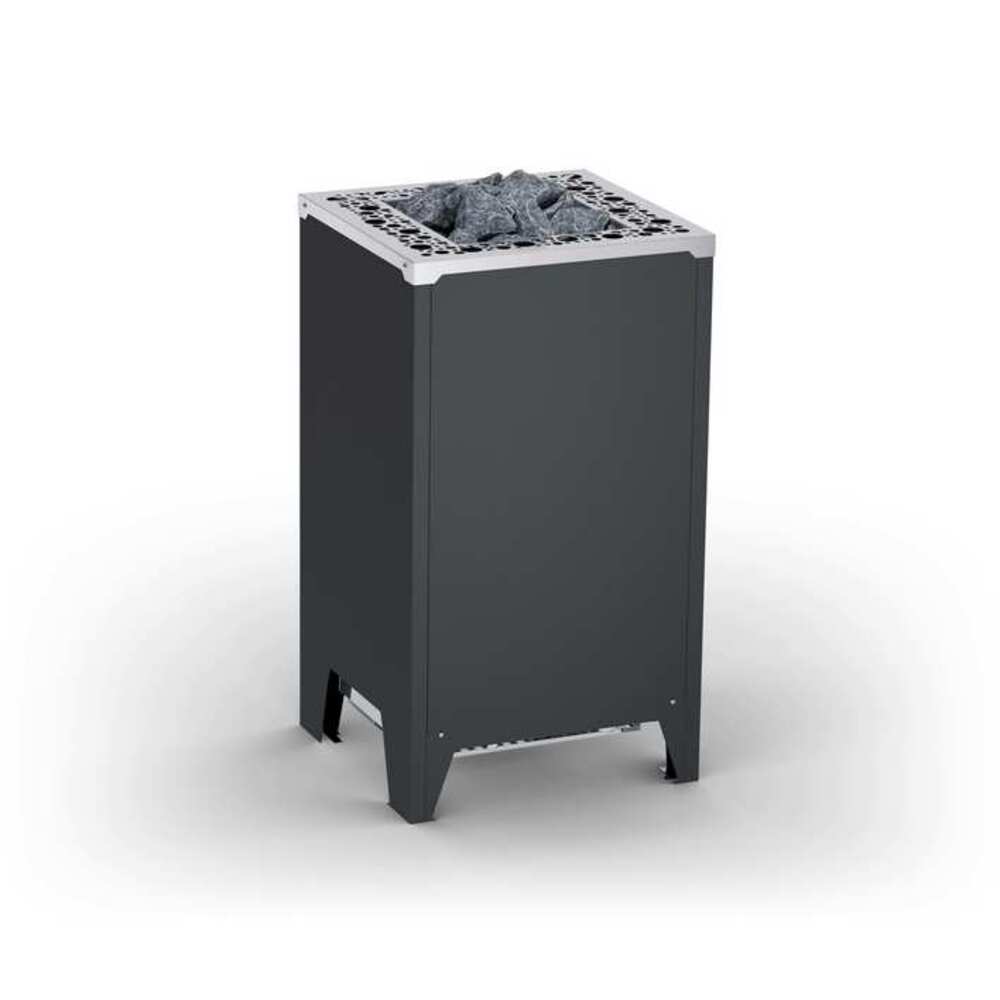

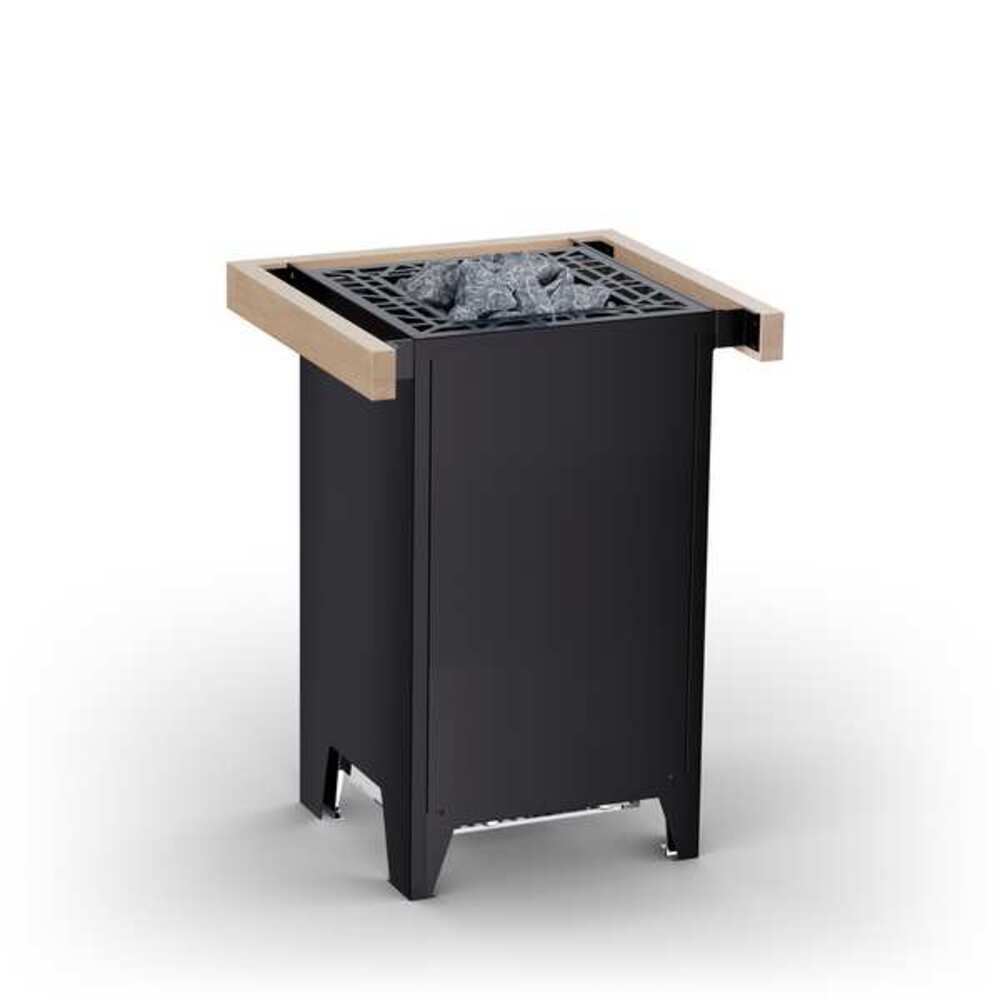

- Same appearance on all sides thanks to the integrated rear side cover panel in matching finish.

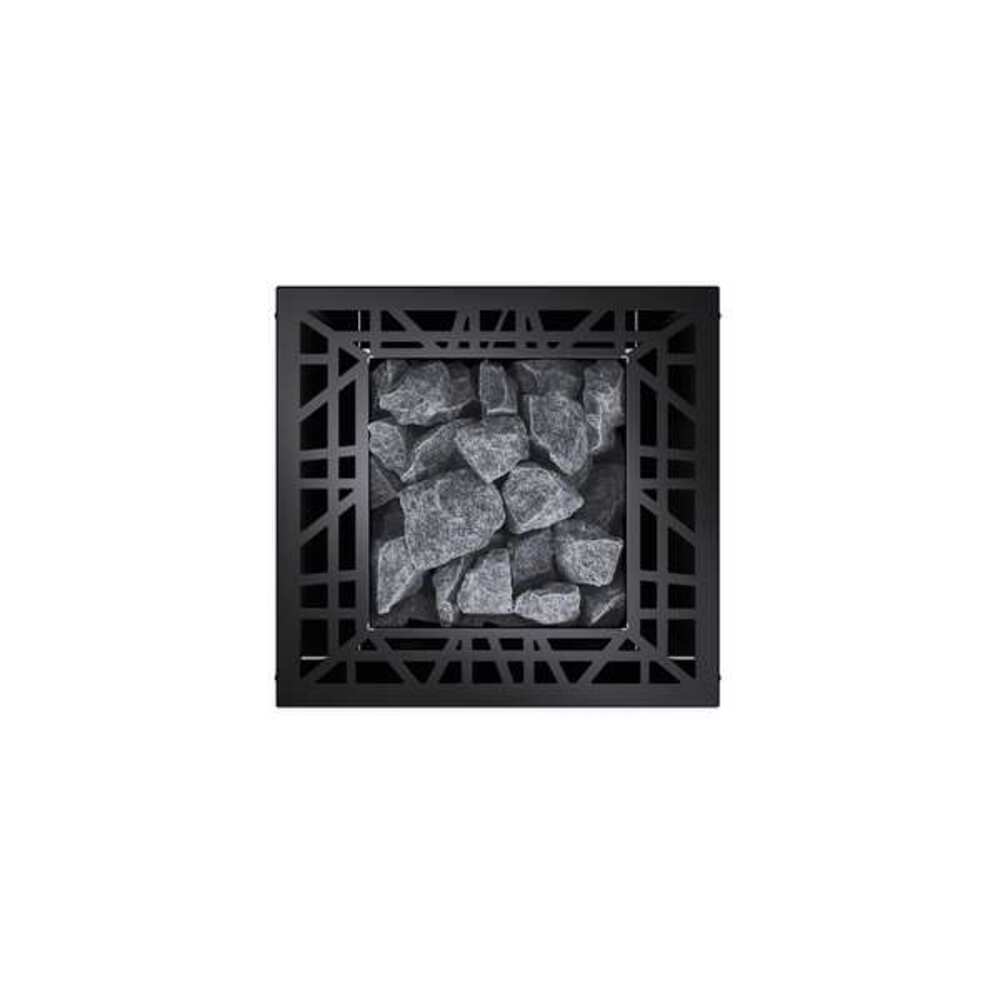

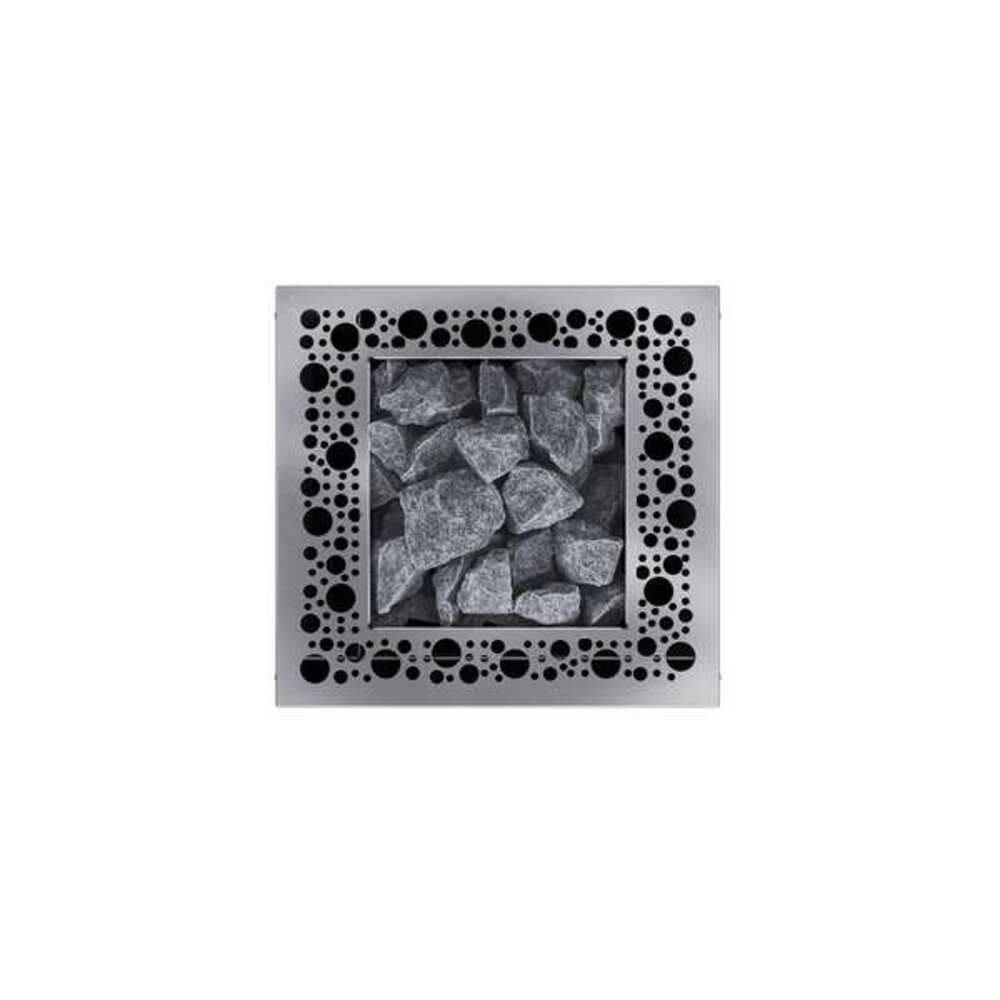

- Easy to service - heating elements without contact to stones. Rock store above the heating block.
- Compact, place-saving size – only 38.5 cm depth
Model Overview

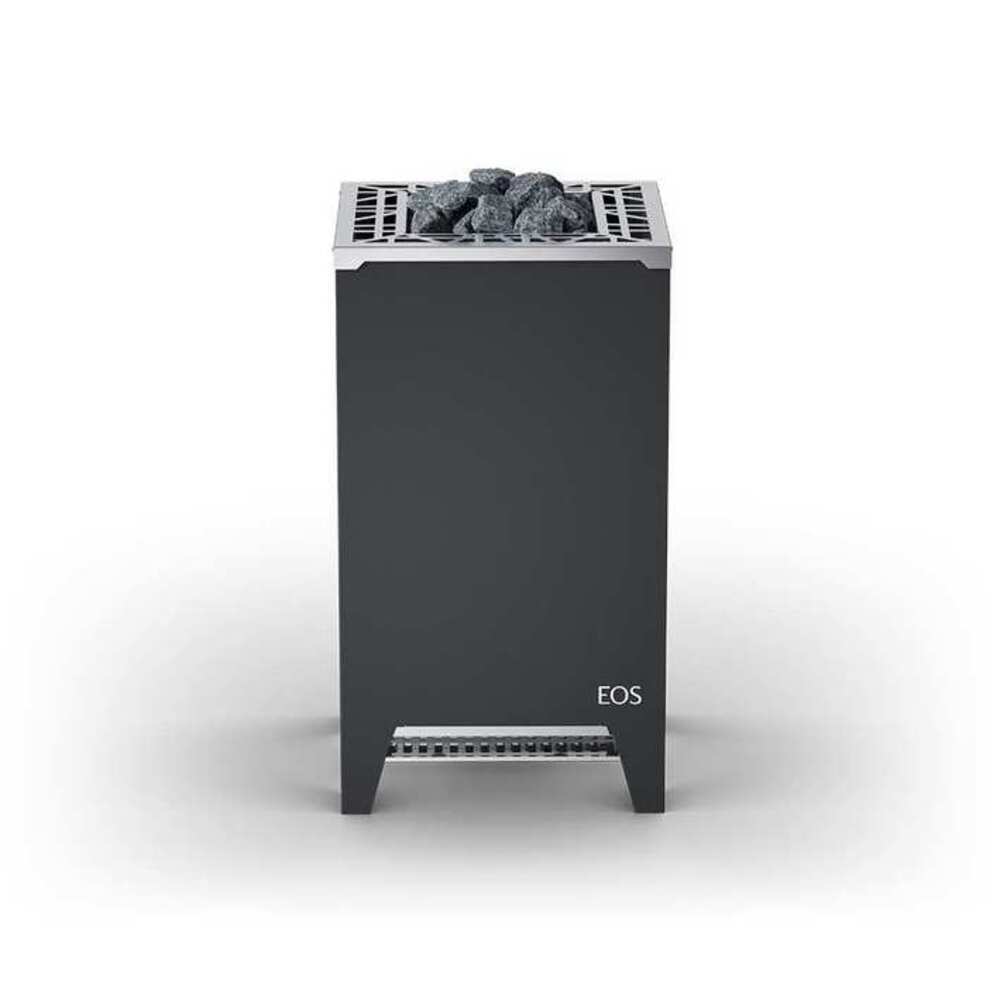

EOS Cubo 2

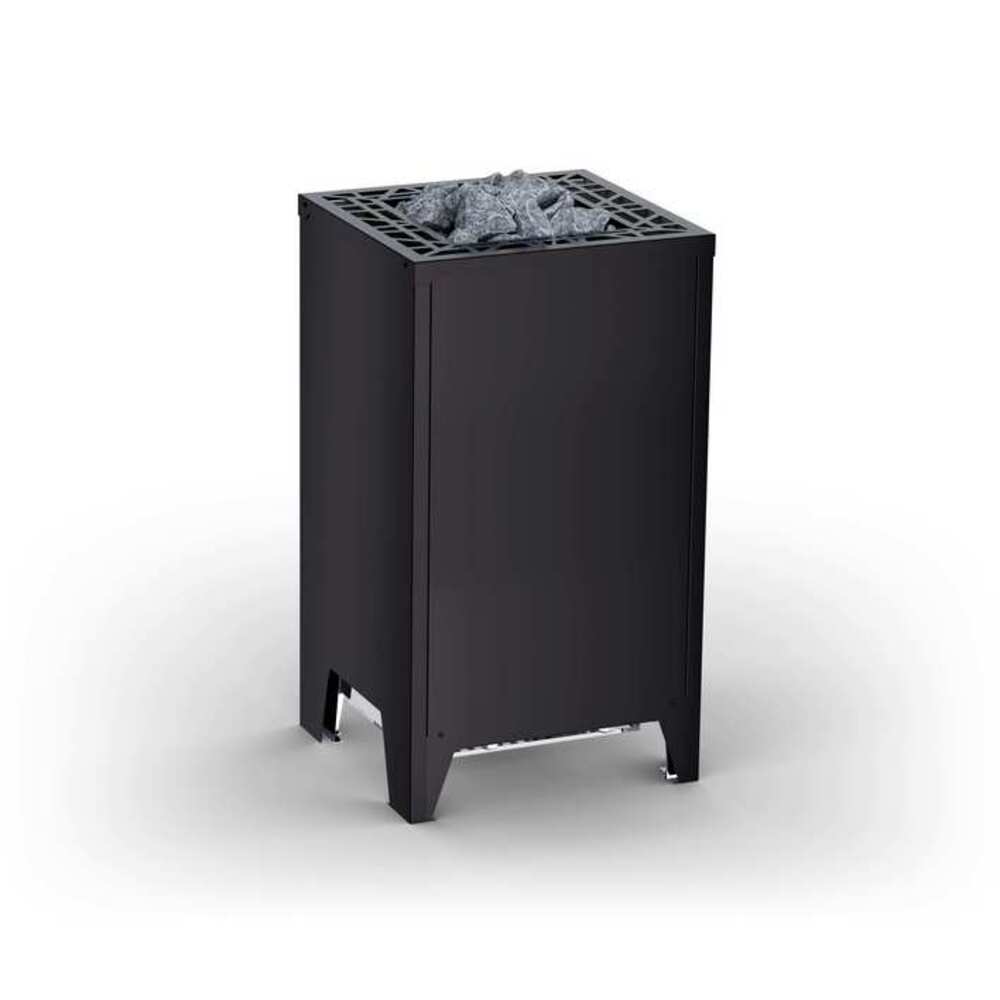

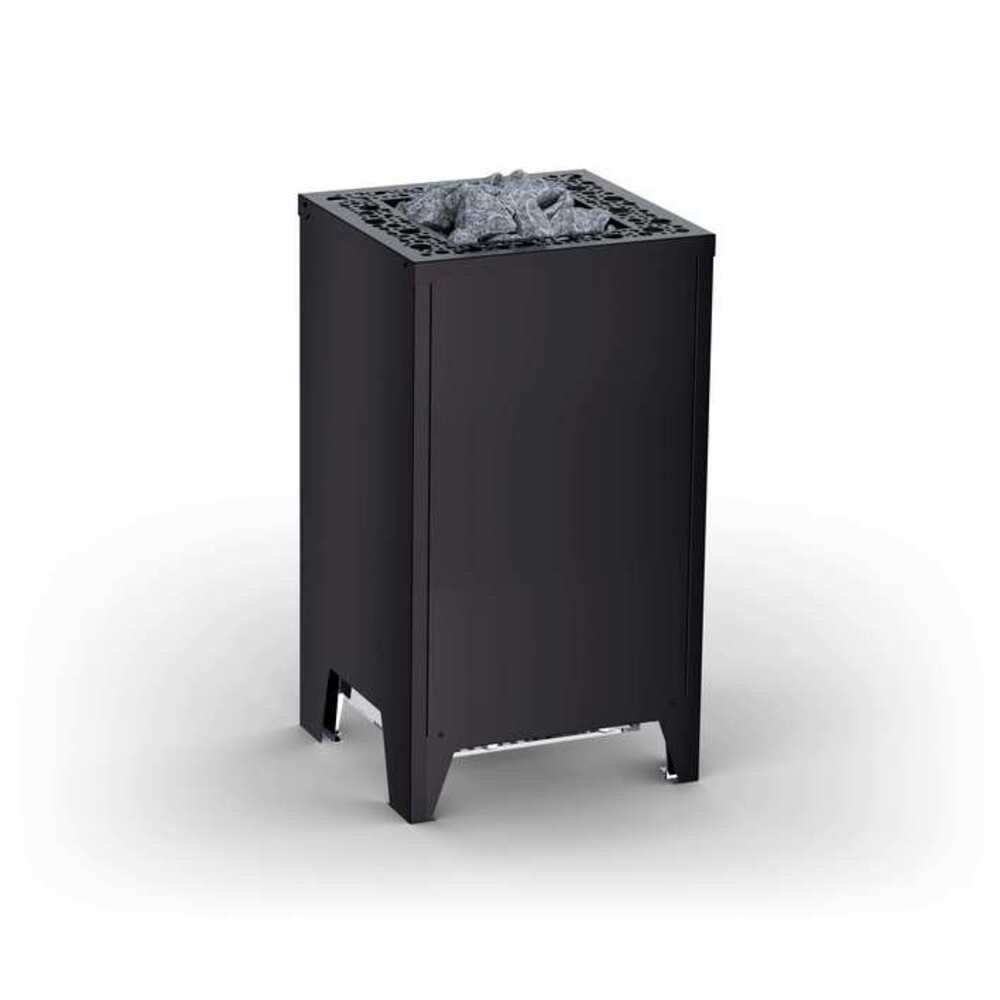

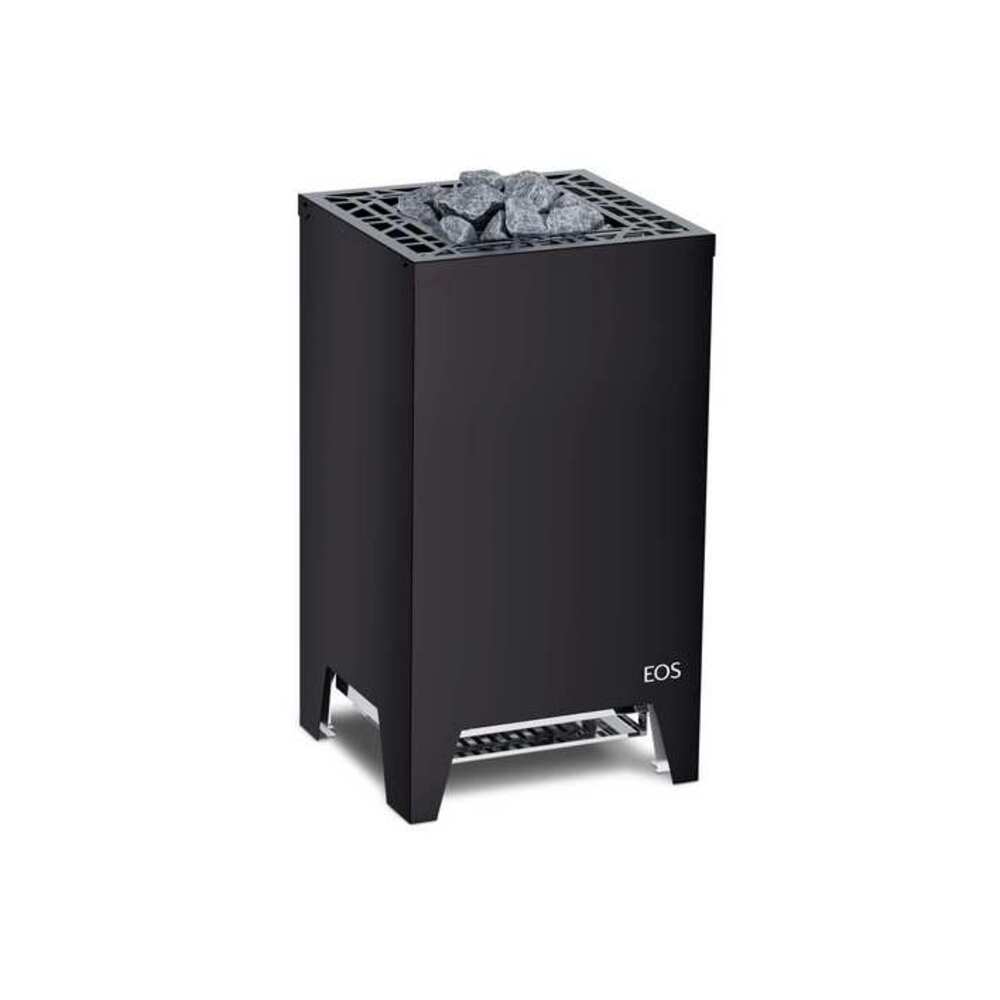

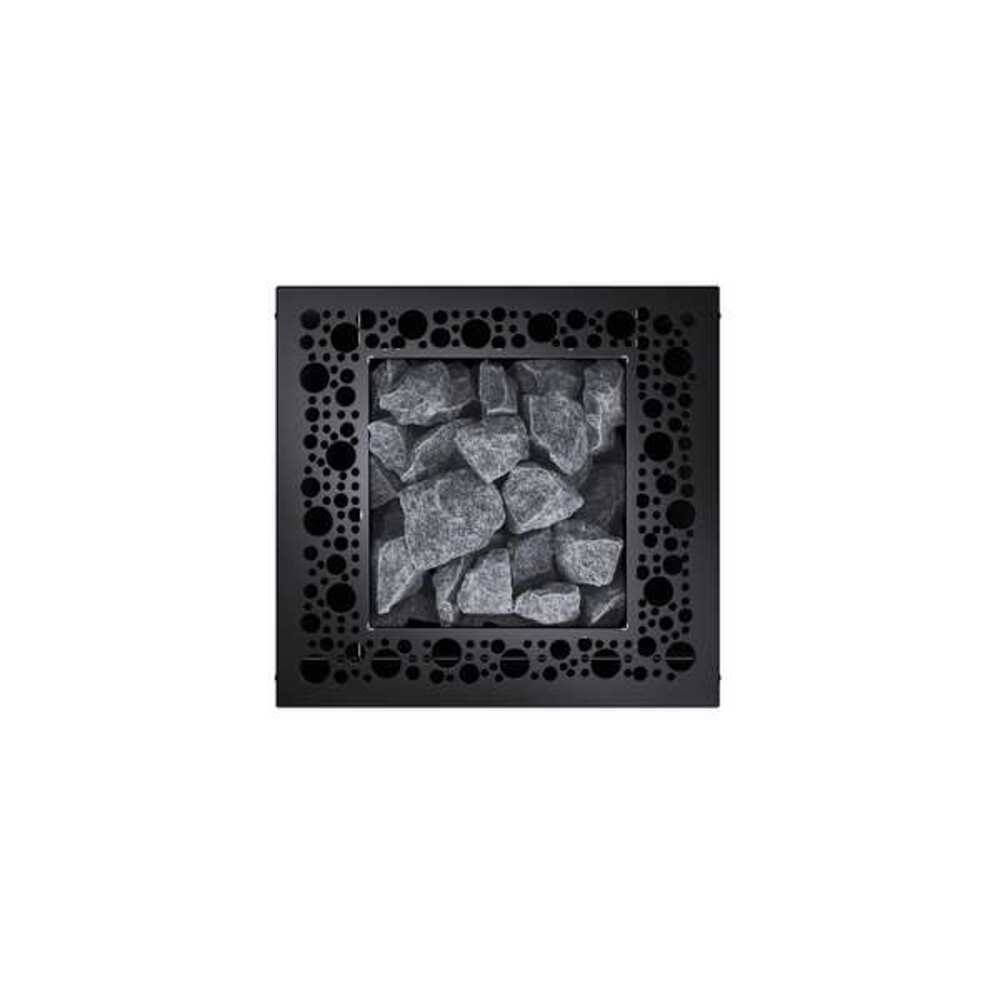

EOS Cubo 2 black
Power |
| Item no. |
7,5 kW | Styling 1 | 948890 |
9,0 kW | Styling 1 | 948891 |
10,0 kW | Styling 1 | 948892 |
12,0 kW | Styling 1 | 948893 |
7,5 kW | Styling 2 | 948898 |
9,0 kW | Styling 2 | 948899 |
10,0 kW | Styling 2 | 948900 |
12,0 kW | Styling 2 | 948901 |
Power |
| Item no. |
7,5 kW | Styling 1 | 948894 |
9,0 kW | Styling 1 | 948895 |
10,0 kW | Styling 1 | 948896 |
12,0 kW | Styling 1 | 948897 |
7,5 kW | Styling 2 | 948902 |
9,0 kW | Styling 2 | 948903 |
10,0 kW | Styling 2 | 948904 |
12,0 kW | Styling 2 | 948905 |
Technical Specifications
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse protection (control unit) | 3 x 16 A |
Fuse protection (PEB) | no / 3 x 16 A (only 12,0 kW) |
Dimensions H/W/D, in cm | 72 / 40 / 38,5 |
For sauna cabin size (7,5 / 9,0 / 10,0 / 12,0 kW) | 7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³ / 14 - 18 m³ |
Min. size air inlet and outlet (7,5 / 9,0 / 10,0 / 12,0 kW) | 35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 7 cm |
Weight withouth rocks | 27,5 kg |
Stone filling | 25 kg |
Power extension required | no / PEB 10 (only 12,0 kW) |
