EOS 46.U
Behind-the-bench sauna heater

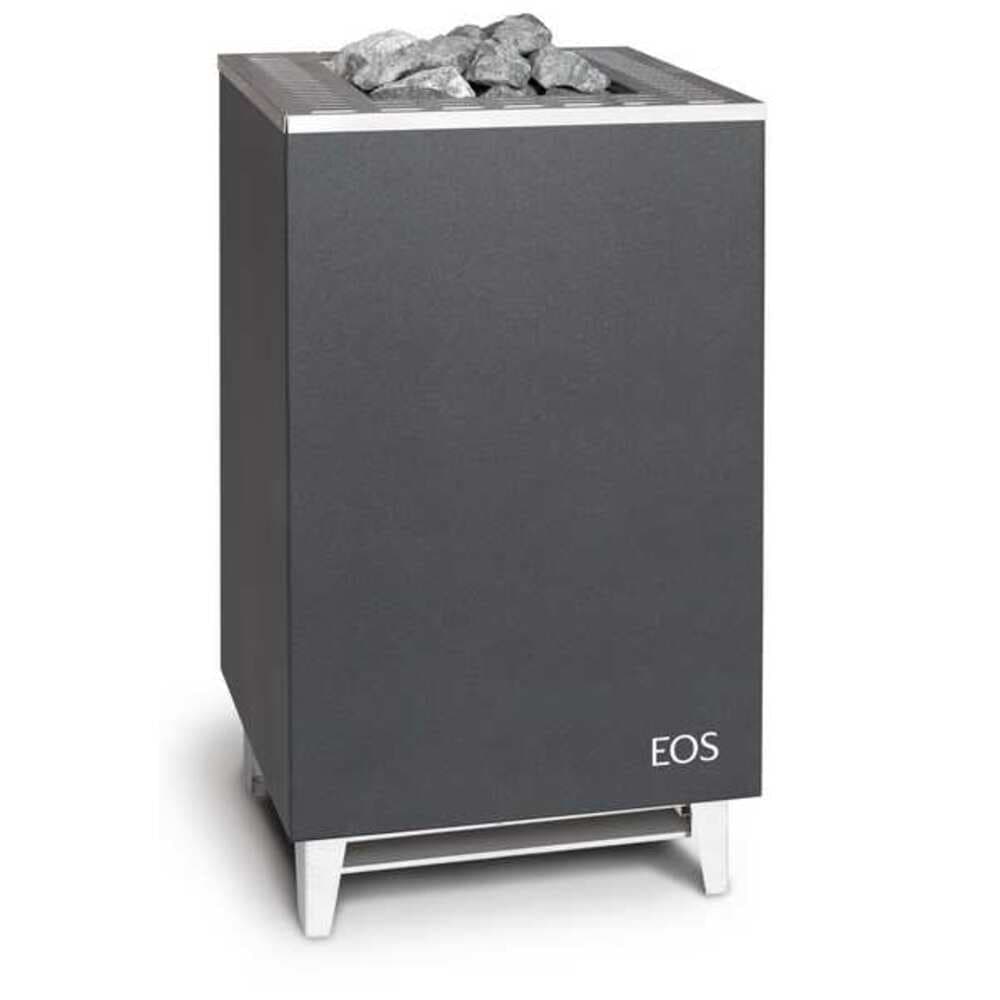

EOS Cubo
Description
Description
Discontinued model
Successor model available in a new design:
EOS Cubo 2
Your Advantages
- Suitable for private and commercial saunas.
- Premium sauna heater for sauna cabins from 7 to 18 m³.

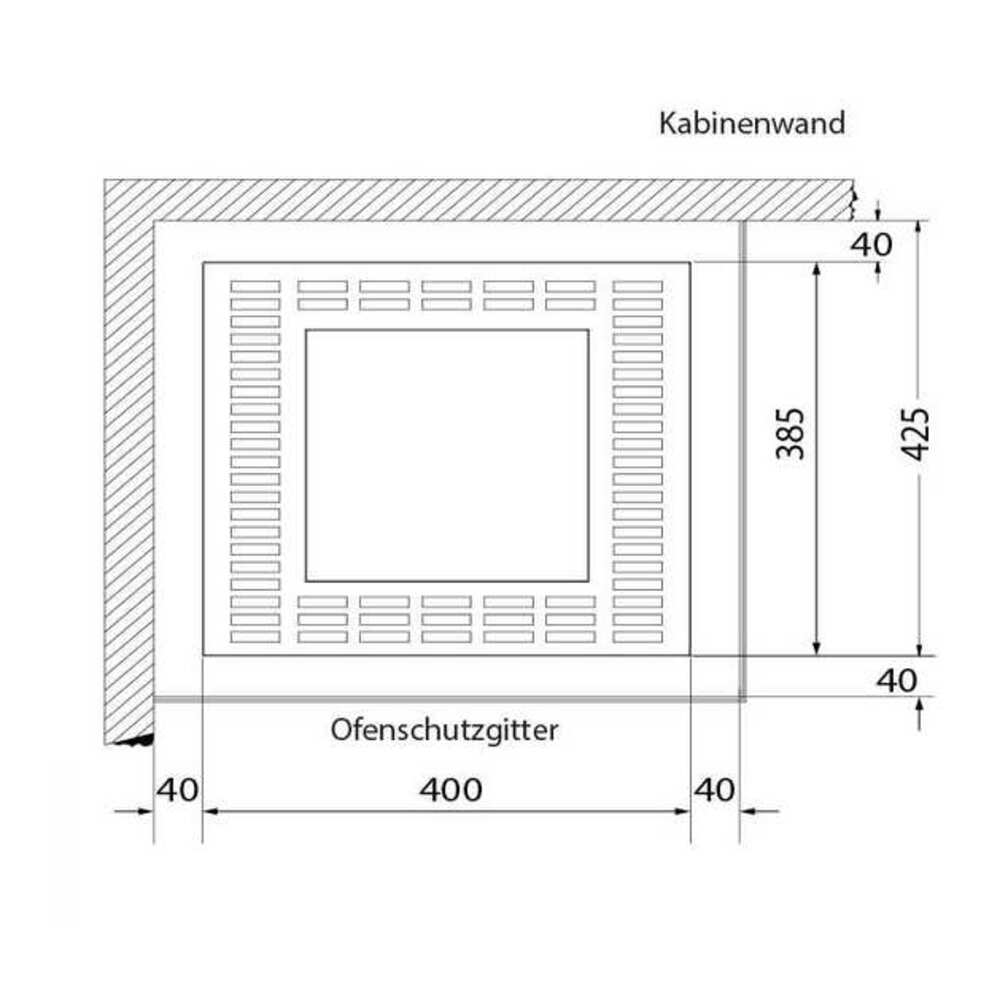

- Compact design - 40 x 39 cm, thanks to the recessed terminal box.
- Robust, durable construction made of stainless steel.
- Outer shell in anthracite pearl effect finish.

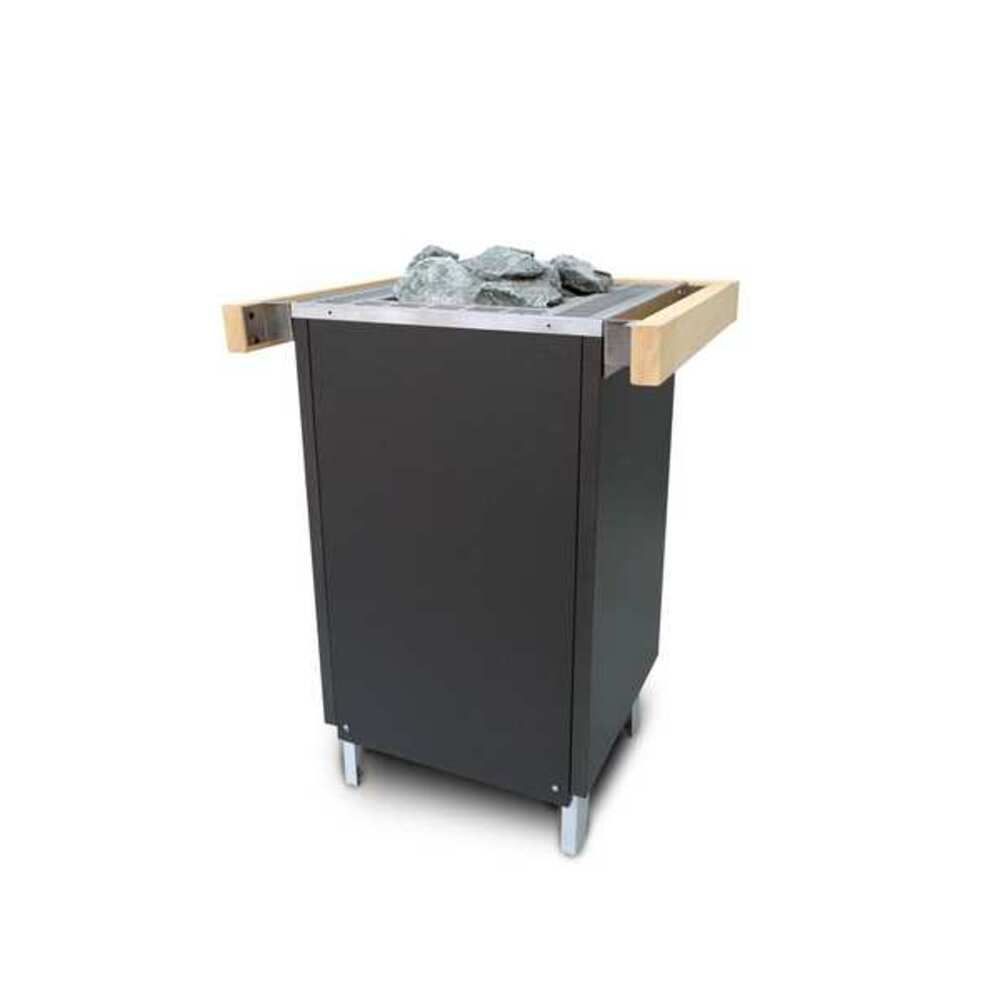

- Optional guard rail mounting brackets.
- Service-friendly construction: rock store above the heating elements for improved air convection, longer lifetime of heating elements - replacement of elements without unloading the rocks.
- Rock store fits up to 25 kg stones.
Model Overview
Power | Item no. |
7,5 kW | 945073 |
9,0 kW | 945074 |
10,0 kW | 947880 |
10,5 kW | 946592 |
12,0 kW | 945075 |
Technical Specifications
Electrical connection | 400 V 3N ~ 50/60 Hz |
Fuse protection (control unit) | 3 x 16 A |
Fuse protection (PEB) | no / 3 x 16 A (only 10,5 and 12,0 kW) |
Dimensions H/W/D, in cm | 72 / 40 / 38,5 |
For sauna cabin size (7,5 / 9,0 / 10,5 / 12,0 kW) | 7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³ / 14 - 18 m³ |
Min. size air inlet and outlet (7,5 / 9,0 / 10,5 / 12,0 kW) | 35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 7 cm |
Weight withouth rocks | 25,5 kg |
Stone filling | 25 kg |
Power extension required | no / PEB 10 (only 10,5 and 12,0 kW) |
