EOS 46.U
Behind-the-bench sauna heater

Exclusive sauna heater for design-oriented sauna cabins.

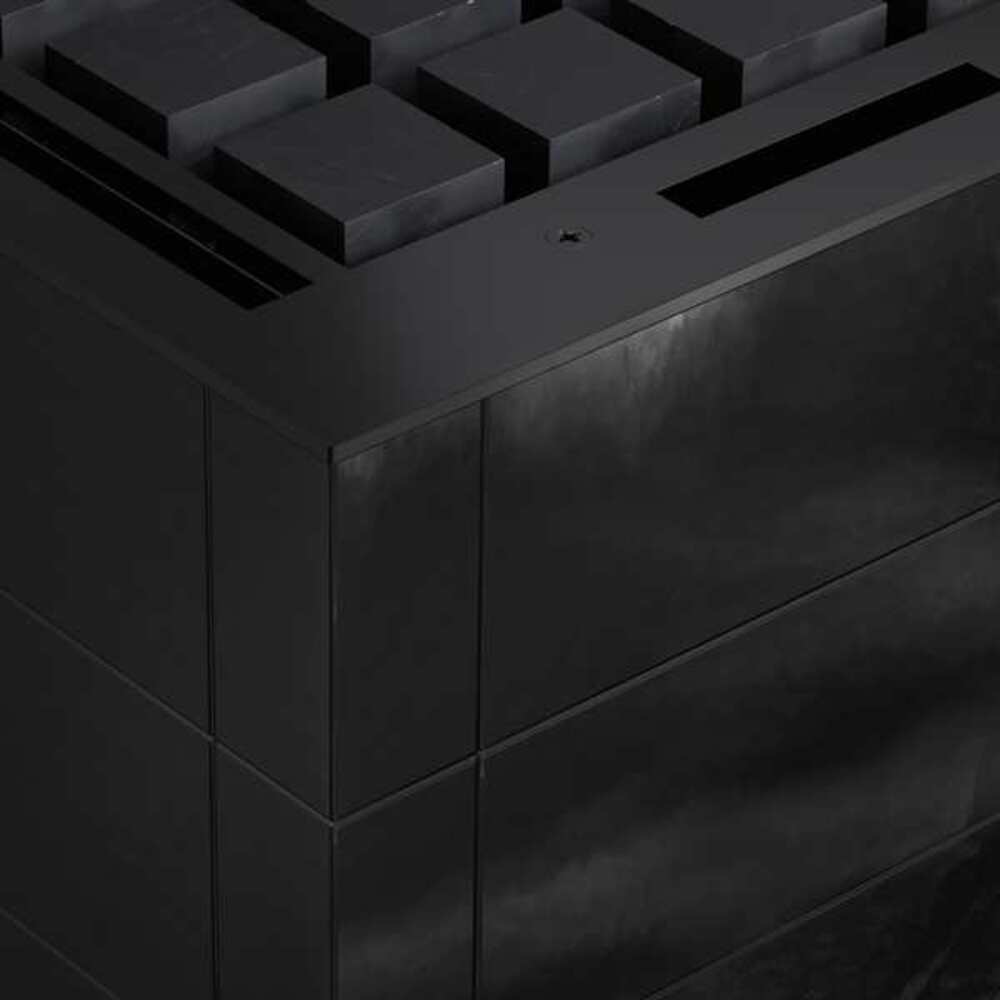

The special highlight is the unique panelling with black ceramic tiles, which give this heater its luxurious appearance.
Just 2 cm safety gap thanks to excellent thermal insulation.

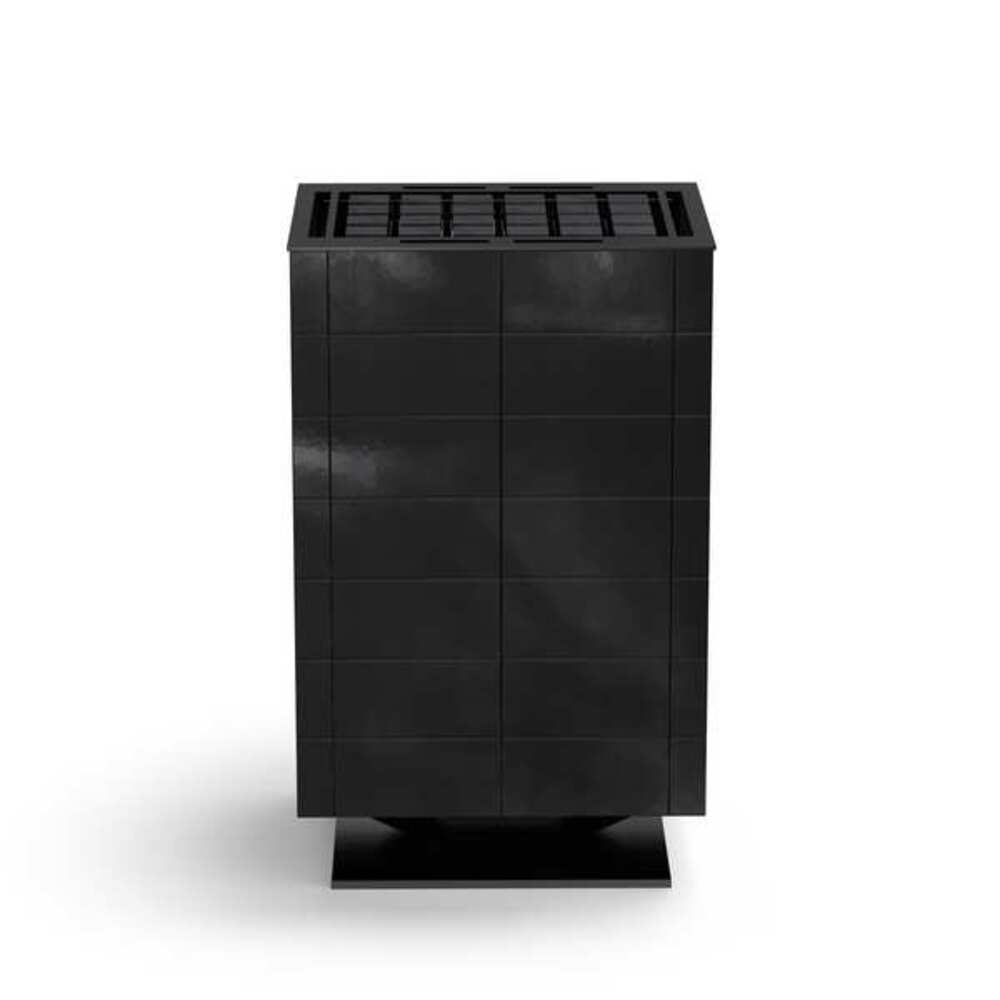

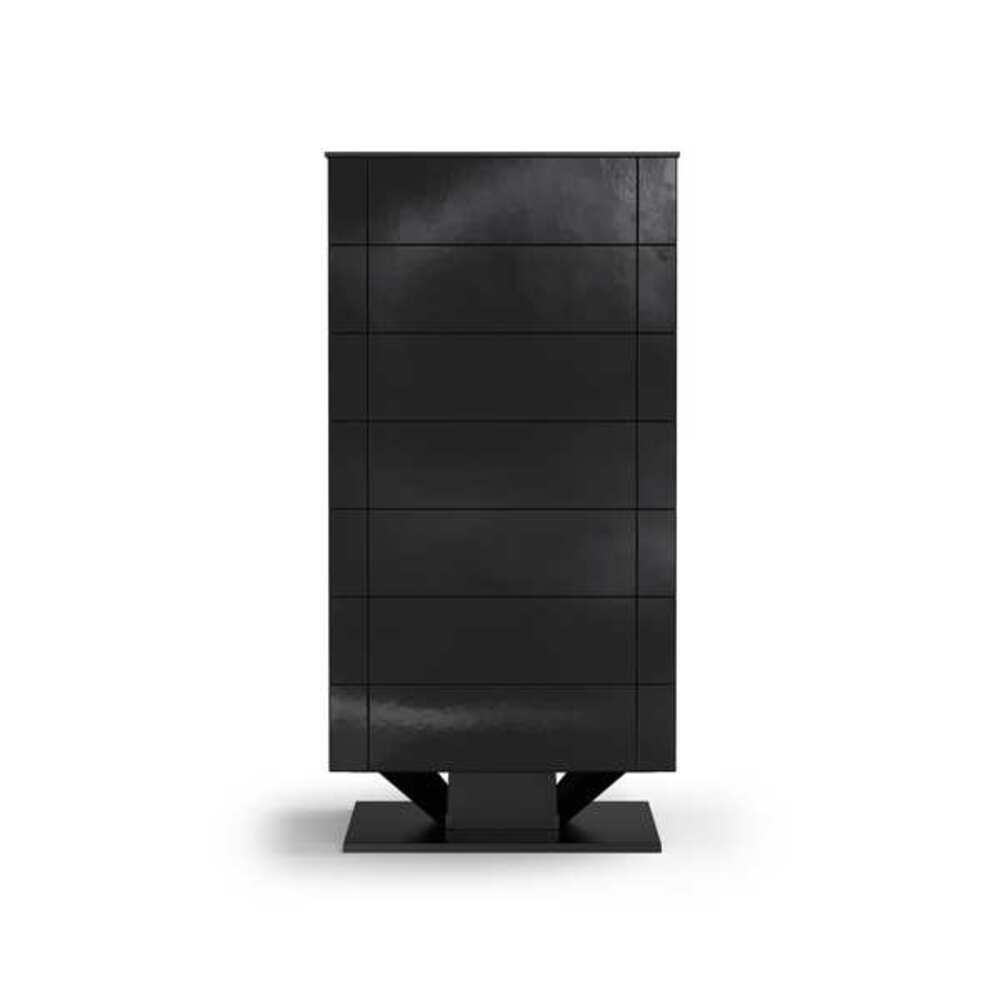

The cubistic design is perfectly complemented by the elegant base. Thanks to the flat rear side, EOS Credo can be placed directly in front of glass surfaces or in the center of the sauna cabin.
A heater guard rail is not necessary, due to the low surface temperature of the tiles.
Cubius stones are included in the delivery. Rock store fits approx. 40 kg stones.
Power | Item no. |
12,0 kW | 948809 |
15,0 kW | 948808 |
Electrical connection | 400 V 3N ~ 50/60 Hz |
Dimensions H/W/D, in cm | 81 / 50 / 40 |
For sauna cabin size (12 / 15 kW) | 14 - 18 m³ / 18 - 25 m³ |
Min. size air inlet and outlet (12 / 15 kW) | 35 x 7 cm / 35 x 9 cm |
Fuse protection control unit | 3 x 16 A |
Weight withouth rocks | 38 kg |
Stone filling | ~40 kg |
Power extension required | PEB 10 |
