EOS 46.U
Behind-the-bench sauna heater

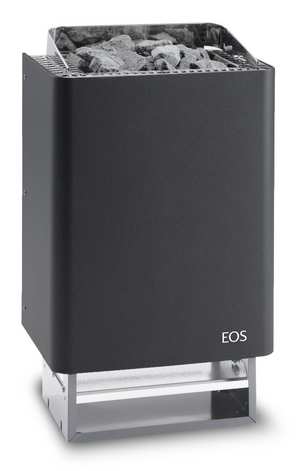

EOS 43FN
Description
Description
Middle class sauna heater for the Finnish (dry) sauna in classic, timeless design.
The EOS 43FN features a robust, durable construction and is recommended for the use in compact to mid-sized private sauna cabins.
Corrosion resistant zinc-coated inner shell. Outer shell in anthracite pearl effect finish. Terminal box at the rear. Rock store made of stainless steel. Socket serves as a drip water and dust collector. Floor-standing design with wall-mounting brackets.
Rock store fits up to 15 kg stones.
Your Advantages
- Easy, simple installation.
- Floor-standing heater for domestic saunas from 6 to 14 m³.
- Anthracite pearl effect finish.
- Reinforced construction. Stainless steel top cover.
- Optimal relation between stone volume and air convection system for fast heat-up times and powerful water splashes.
- Rock store fits up to 15 kg stones.
Model Overview
| Power | Item no. |
|---|---|
| 6,0 kW | 945745 |
| 7,5 kW | 945733 |
| 9,0 kW | 945734 |
Technical Specifications
Electrical connection | 400 V 3N / 230 V 1N ~ 50/60 Hz |
Fuse protection (control unit) | 3 x 16 A |

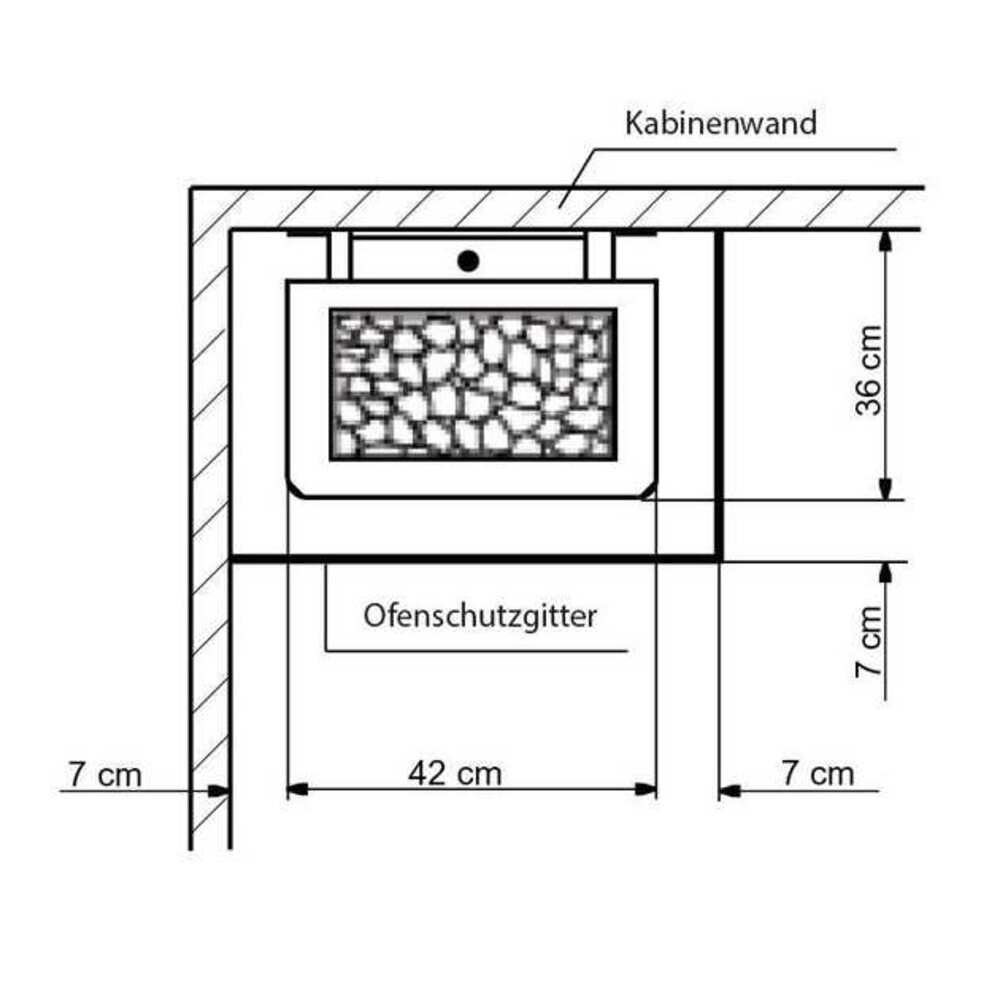

Dimensions H/W/D, in cm | 71 / 42 / 36 |
For sauna cabin size (6,0 / 7,5 / 9,0 kW) | 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ |

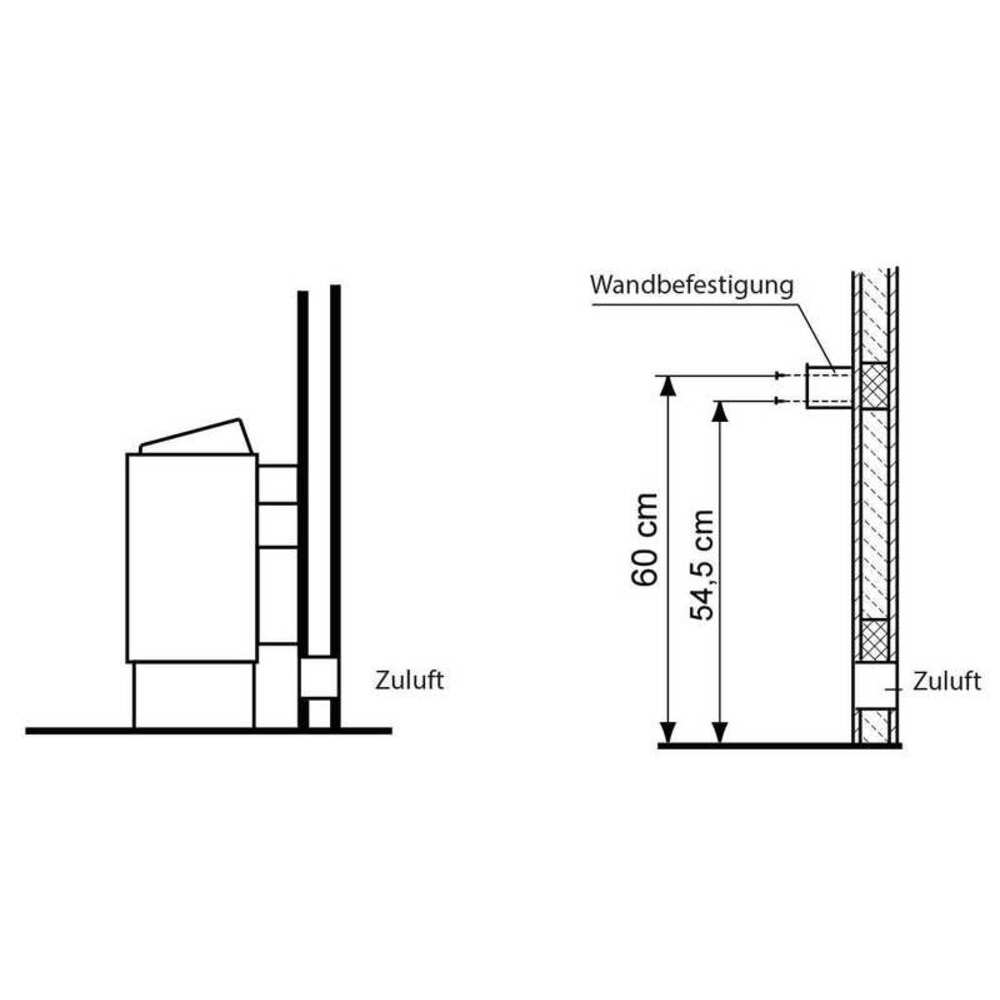

Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW) | 35 x 4 cm / 35 x 5 cm / 35 x 6 cm |
Weight withouth rocks (6,0 / 7,5 / 9,0 kW) | 18,0 kg / 18,5 kg / 19,0 kg |
Stone filling | 15 kg |
Power extension required | no |
