Accessories for steam rooms

Speaker in special waterproof construction for installation and use in steam rooms or high humidity environment. Balanced frequency response, high efficiency and good high-midrange reproduction.
80 W power output (100 W peak) at 4 Ohm, Ø 16 cm (6.5“), 2-way coaxial speaker with moulded plastic cone, plastic basket and grille. Corrosion-resistant and waterproof (encased magnet, silicone-coated leads). Additional tweeter centred in compass design.

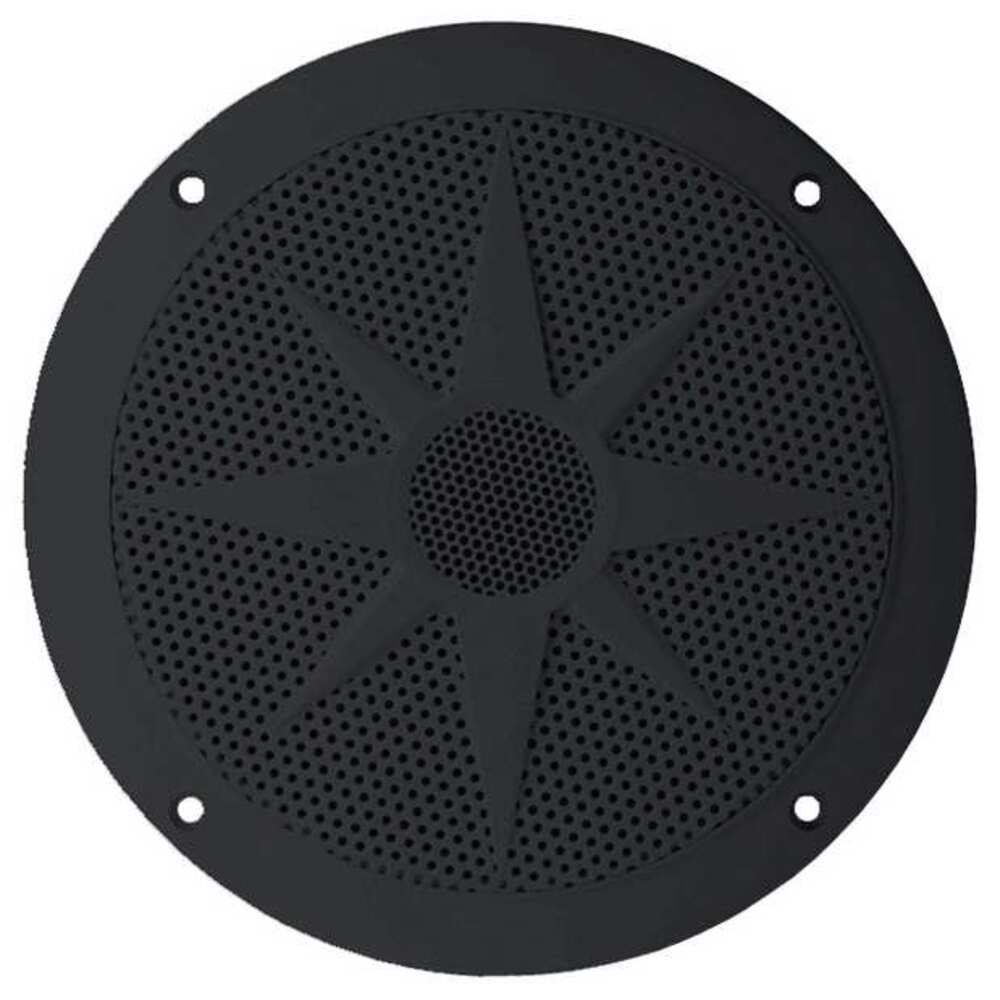

White front cover. Alternatively available with elegant matt black finish.
Class protection IP65, -40 °C to 80 °C, salt water resistant. 60 - 20.000 Hz, 86 dB mean sound pressure level.
Item no. |
946196 – white |
947768 – black |
Rated power | 80 W |
Maximum power | 100 kW |
Frequency response (-10 dB) | 60 - 20.000 Hz |
Mean sound pressure level | 86 dB (1 W/1 m) |
Resonant frequency | 85 Hz |
Height of front pole-plate | 4 mm |
Voice coil diameter | 25 mm Ø |
Height of winding | 7 mm |

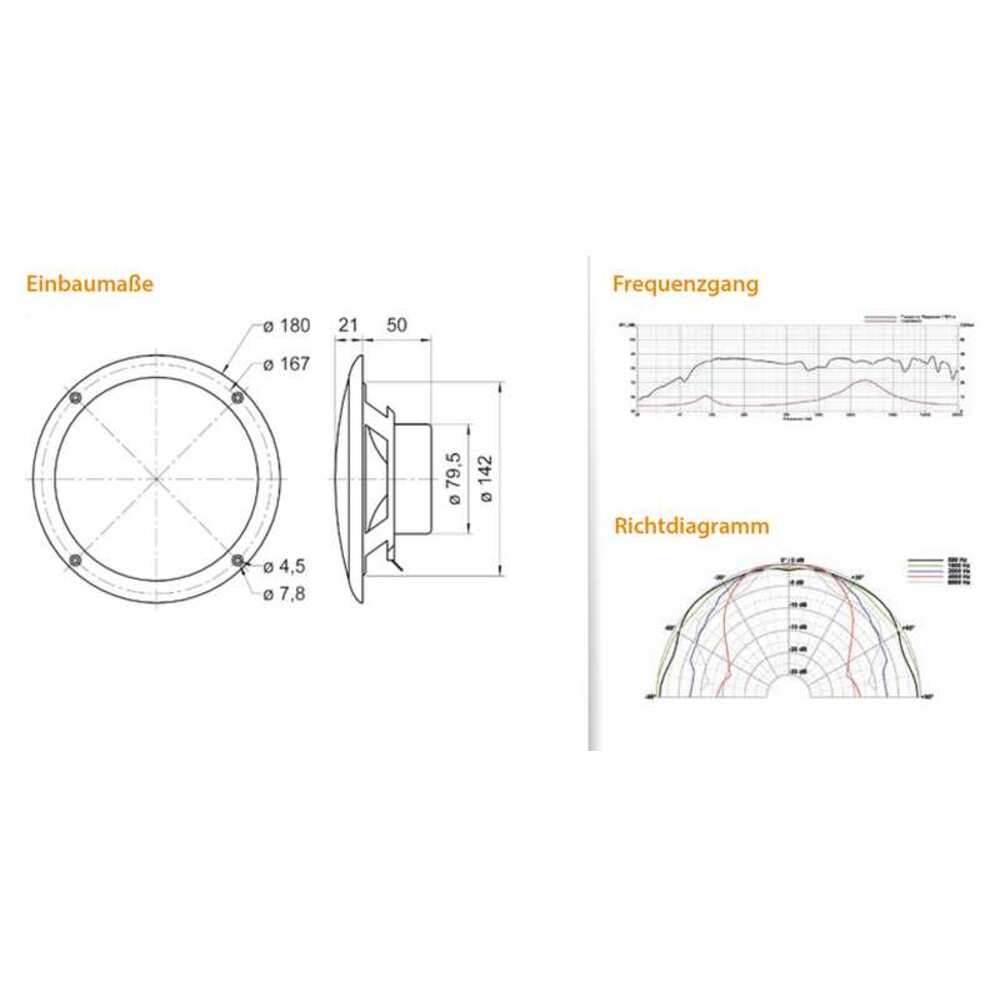

Cut-out diameter | 142 mm Ø |
Net weight | 0,46 kg |
