EOS Vitae Protect Top
Description
Description
Ceiling-mounted infrared warming system.
Vitae quartz glass emitters with 1000 and 1500 W. With housing and reflector. Protective flocked safety grille (black). Completely pre-assembled with two 3 m silicone connection cables 3 x 1.5 mm².

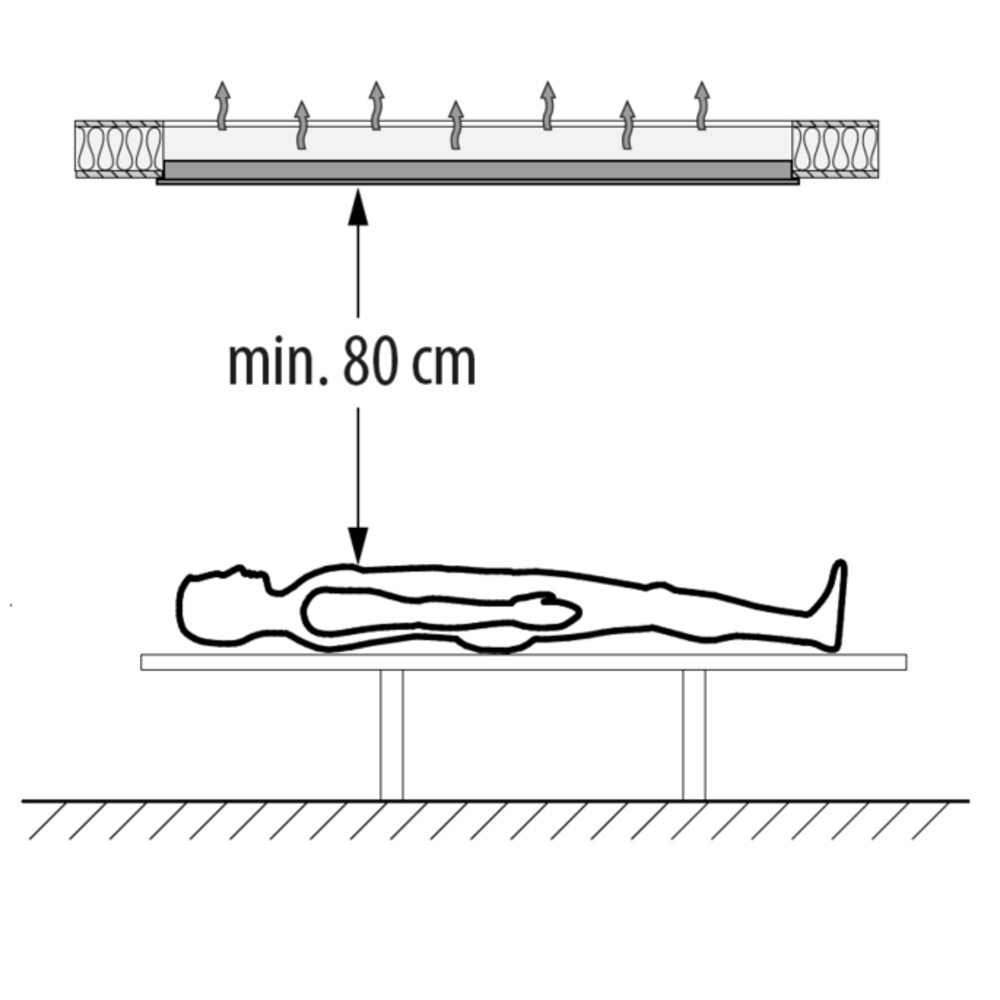

The recommended distance from the heater to the body is approx. 80 cm.
Use only in connection with a suitable control unit. The maximum total load must not exceed 3500 W.
Your Advantages
- Full power output in less than one second
- High intensity and wide coverage angle
- Full spectre infrared radiation – IR-A, IR-B and IR-C
- Can be dimmed with appropriate control units
- Available in two power outputs: 1000 W or 1500 W
- Completely pre-mounted with durable housing, glass ceramic pane and and connecting cable
- With integrated filter against electricity peaks after switching on from cold state
- Including 2x 3 m silicone cable
Model Overview
Item no. | Power |
947703 | 1000 W |
947704 | 1500 W |
Technical Specifications
Electrical connection / power | 230 V 1N ~ 50 Hz |
Spectrum | IR-A 0,78 - 1,4 μm ca. 20% IR-B 1,4 - 3,0 μm ca. 60% IR-C > 3,0 μm ca. 20% |
Dimensions L/W/H | 1440 x 200 x 45 mm |
Recommended distance to body | 80 cm |
Weight without packaging | approx. 5,4 kg |
