EOS SteamRock II Basic
Description
Description
High-performance steam generator for steam rooms.
Ideal for private and commercial use.
Robust, durable construction with quality heating elements. Very fast steam production, high efficiency. The power output may be quickly adjusted on site - from 18 kW to 3 kW in 3 kW steps. Flexible installation thanks to variable steam outlet.
Water tank made entirely of stainless steel, separately replaceable heating elements. Fully automatic operation with overheating protection. Integrated automatic descaling system (cleaning and descaling). Delivery includes a 5 l container with level probe for descaler liquid.
Special technical solutions possible upon request, e.g. for use on ships.

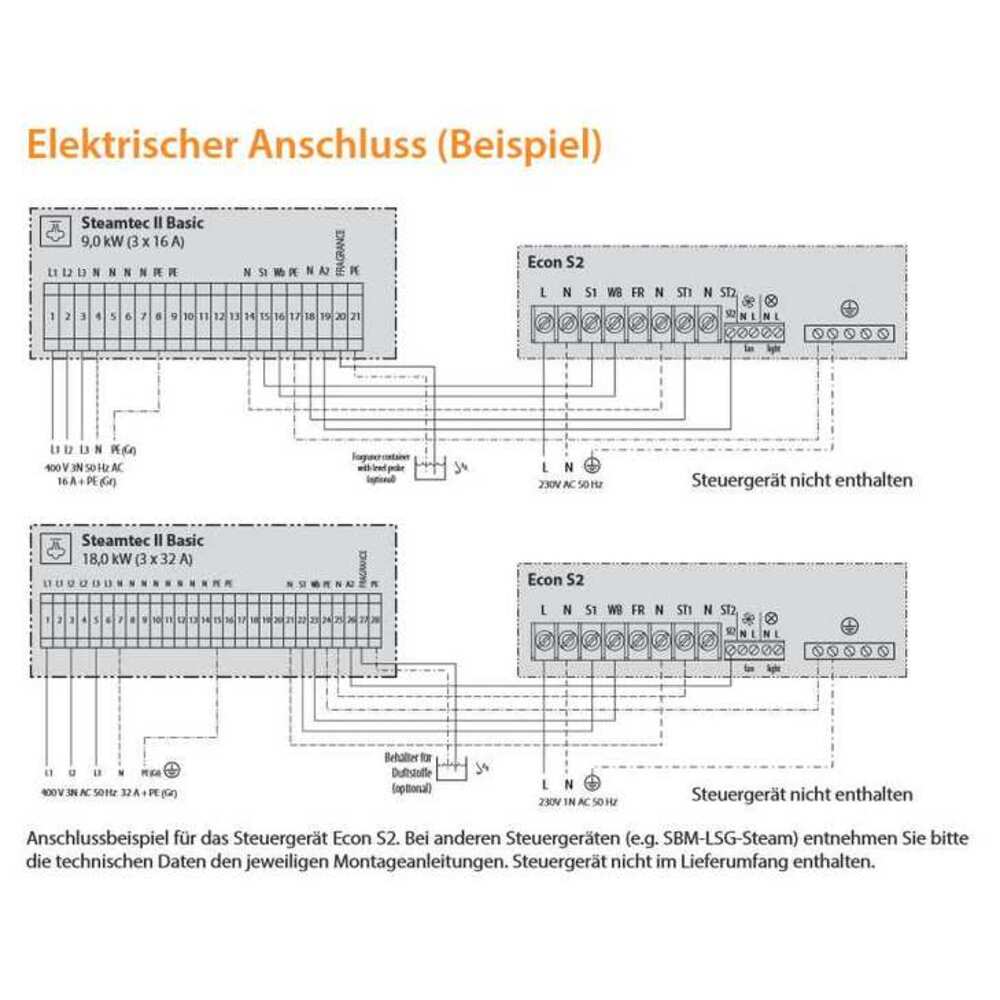

Suitable control unit - e.g. LSG Steam for EOS EmoTouch 3m, EOS Econ S2.
Your Advantages
- High performance steam generator for steam rooms.
- Ideal for private and commercial use.
- Very fast steam production.
- Durable construction for heavy-duty use - reinforced stainless steel water tank with separately replaceable long-life heating elements.
- Quick adjustment of power output in 3 kW steps directly on site.
- Dry-run protection with automatic switch-off by overheating.
- Service-friendly construction with quick access to all components.
- Integrated automatic descaling system, automatic draining.
Model Overview
Power | Item no. |
3 / 6 / 9 kW | 947649 |
3 / 6 / 9 / 12 / 15 / 18 kW | 947650 |
Power | Acryl steam room | Wall cladding made of tiles / hard foam | Wall cladding made of tiles on concrete | Solid wall made of concrete /tiles |
3 kW | up to 4 m³ | up to 3 m³ | up to 3 m³ | up to 2 m³ |
6 kW | 4,1 - 8 m³ | 3,1 - 6 m³ | 3,1 - 5 m³ | 2,1 - 4 m³ |
9 kW | 8,1 - 12 m³ | 6,1 - 10 m³ | 5,1 - 8 m³ | 4,1 - 6 m³ |
12 kW | 12,1 - 16 m³ | 10,1 - 13 m³ | 8,1 - 11 m³ | 6,1 - 8 m³ |
15 kW | 16,1 - 20 m³ | 13,1 - 16 m³ | 11,1 - 13 m³ | 8,1 - 10 m³ |
18 kW | 20,1 - 24 m³ | 16,1 - 19 m³ | 13,1 - 16 m³ | 10,1 - 12 m³ |
Technical Specifications
Dimensions H/W/D, mm | 670 x 460 x 350 |
Power supply | 400 V 3N ~ 50/60 Hz |
Net weight (3 - 9 / 12 - 18 kW) | 28 kg / 30 kg |
Water supply | 3/4“ AG |
Water pressure (supply) | 2 - 8 bar |
Steam output | 1 1/4“ AG |
