EOS Herkules S60 Vapor
Floor-standing
EOS Bi-O Picco W
Description
Description

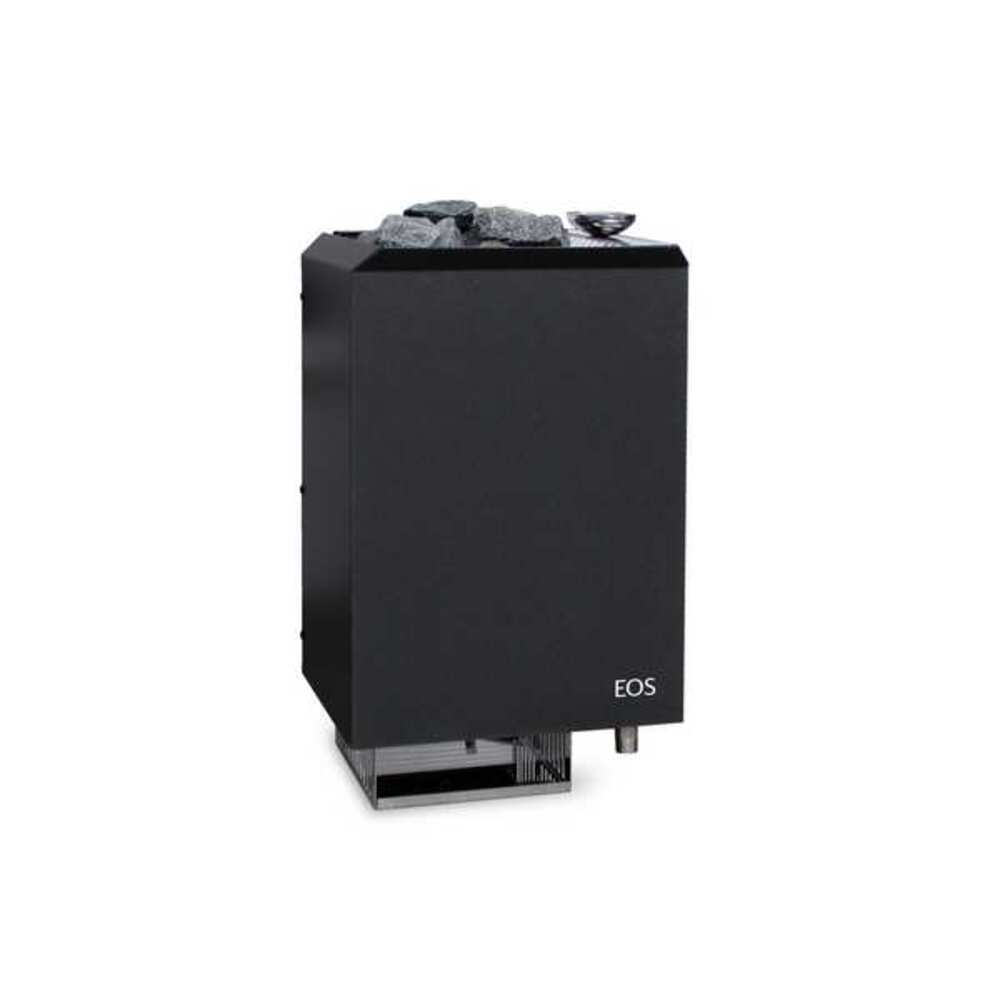

Sauna heater with built-in vaporizer for small saunas up to approx. 4,5 m³.
Allows flexible sauna climate, from dry Finnish sauna to mild and humid bath. Very compact and space-saving – only 21,5 cm depth.
Outer and inner shell made of stainless steel. Also available with the outer shell with anthracite and black matt finish.
Vaporizer with stainless steel 2 l water tank. Dry-run protection with acoustic alarm.
Available in two model variants with different outer shell designs. May be used as a floor-standing model with optional feet.
Rock store fits approx. 10 kg stones.
2,5 m silicone cable included.
Your Advantages
- Flexible sauna climate settings.
- Vaporizer 0,75 kW with 2 l water tank, manual water filling.
- Very slim, space-saving design.
- Compact construction for saunas up to approx. 4,5 m³.

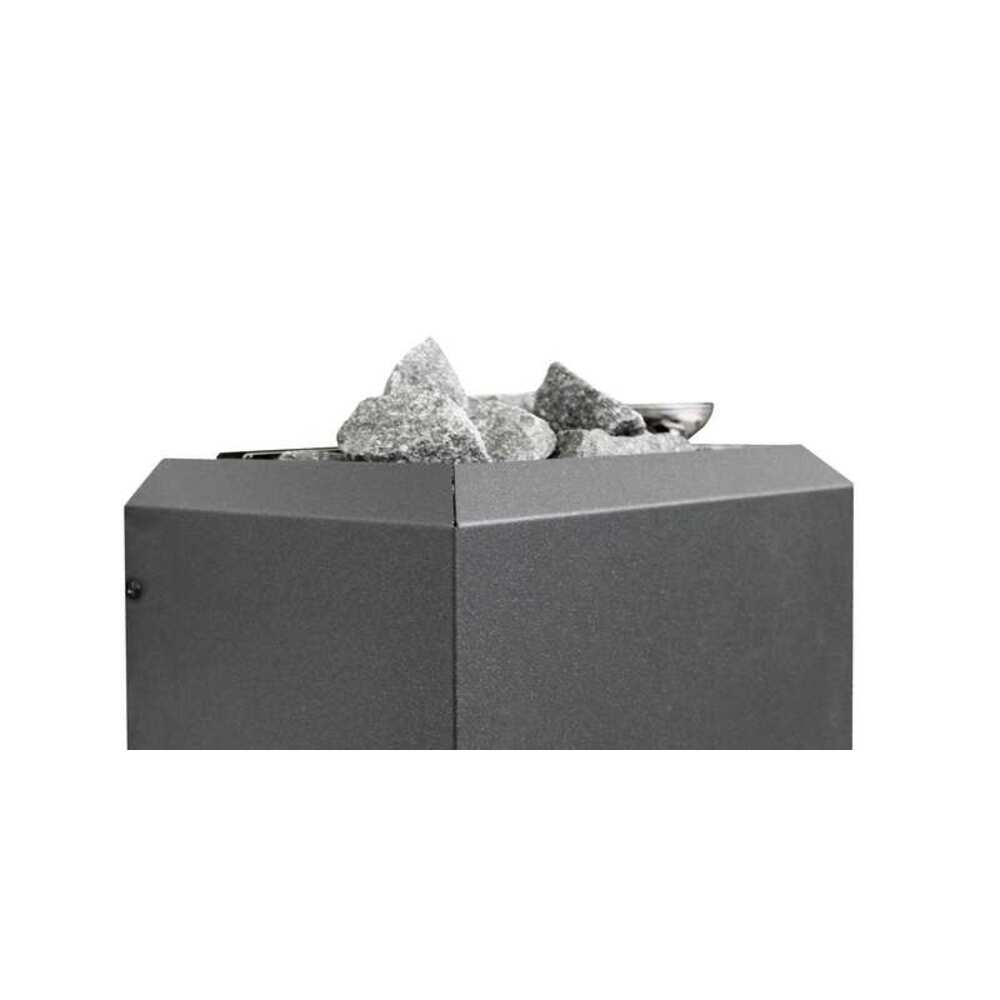

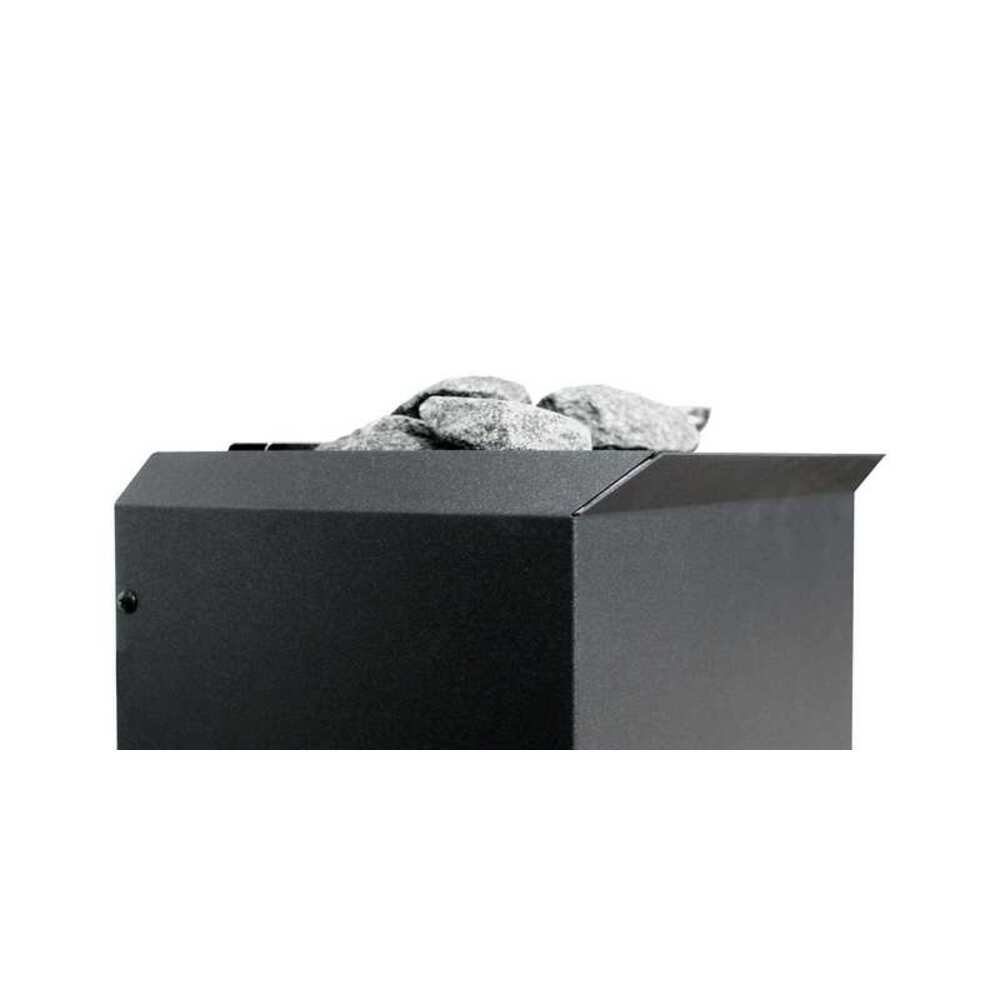

- Available in two versions with chrome steel, anthracite pearl effect or matt

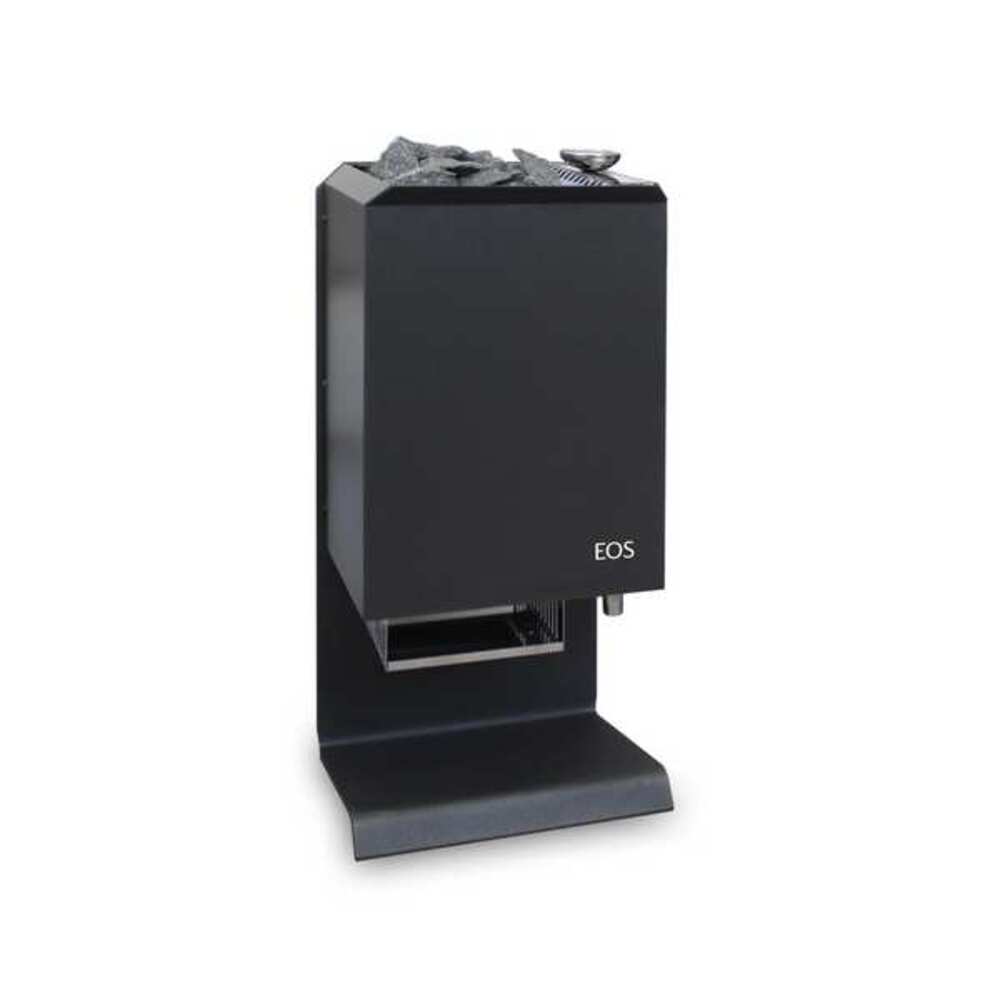

black finish outer shell. - Optional feet allows floor-standing installation.
- 2,5 m connection cable included in delivery.
- Rock store fits approx. 10 kg stones.
Model Overview
EOS Bi-O Picco W black
EOS Bi-O Picco W anthracite
EOS Bi-O Picco W stainless steel
Power | Model | Item no. |
3,0 kW | Model 1 | 947607 |
3,0 kW | Model 2 | 947613 |
3,5 kW | Model 1 | 947610 |
3,5 kW | Model 2 | 947616 |
Power | Model | Item no. |
3,0 kW | Model 1 | 947608 |
3,0 kW | Model 2 | 947614 |
3,5 kW | Model 1 | 947611 |
3,5 kW | Model 2 | 947617 |
Power | Model | Item no. |
3,0 kW | Model 1 | 947609 |
3,0 kW | Model 2 | 947615 |
3,5 kW | Model 1 | 947612 |
3,5 kW | Model 2 | 947618 |
Technical Specifications

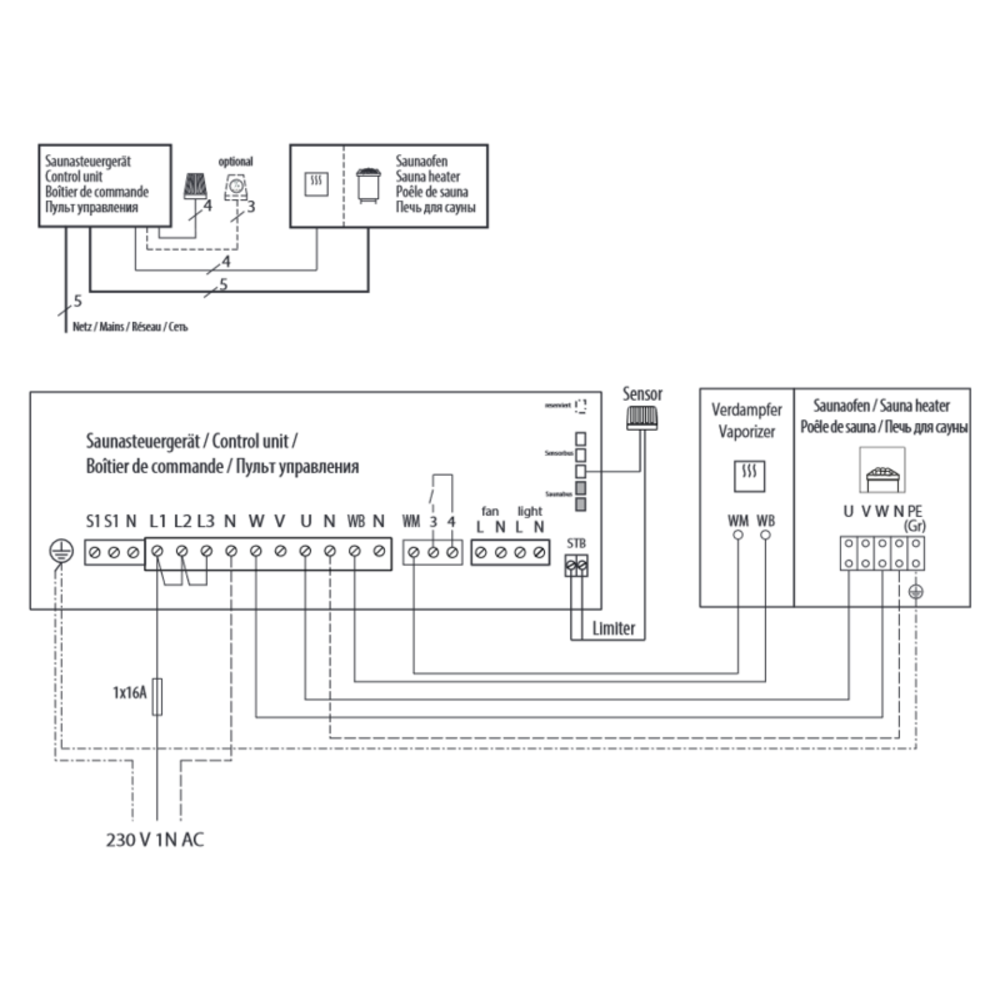

Electrical connection | 230 V 1N ~ 50 Hz |
Power Vaporizer | 750 W 2 l |
Fuse protection (control unit) | 1 x 16 A |
Dimensions H/W/D, in cm |
|
For sauna cabin size (3,0 / 3,5 kW) | ~ 3 - 4 m³ / ~ 3 - 4,5 m³ |
Min. size air inlet and outlet | 20 x 4 cm |
Stone filling | approx. 10 kg |
Power extension required | no |
