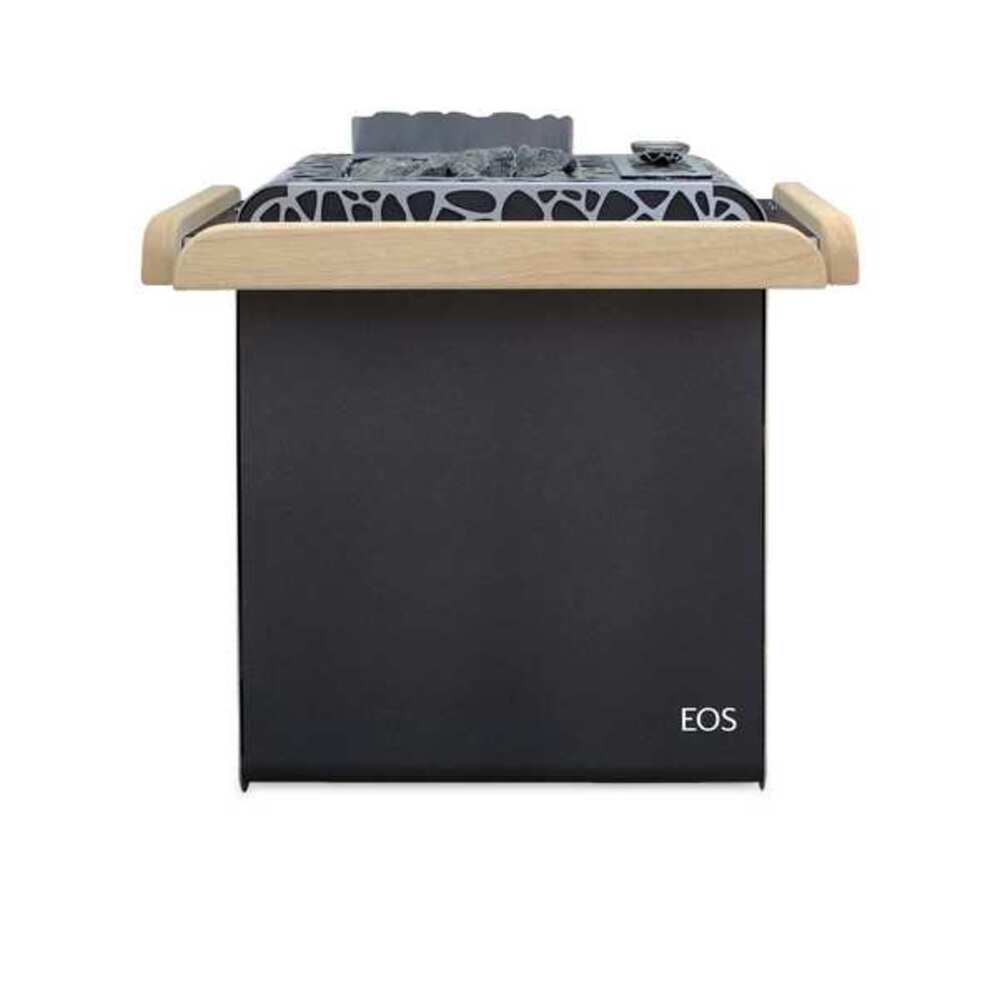

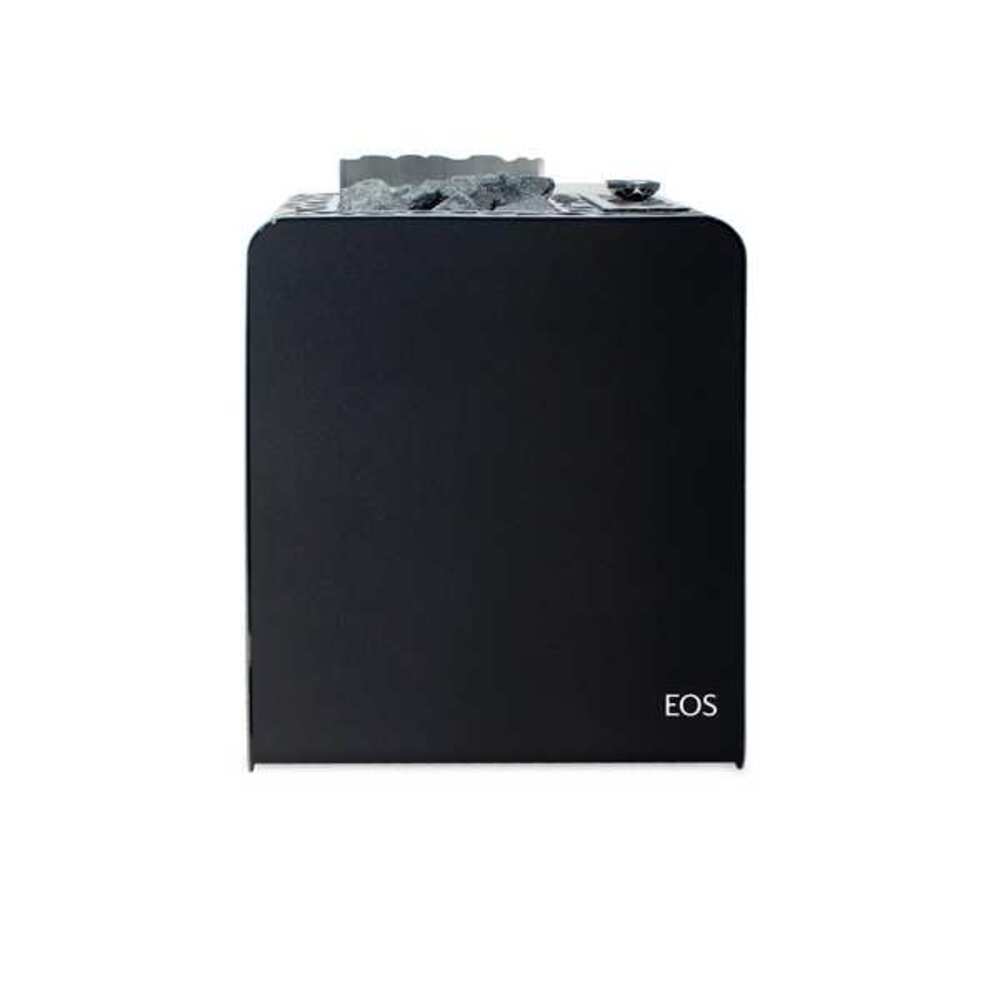

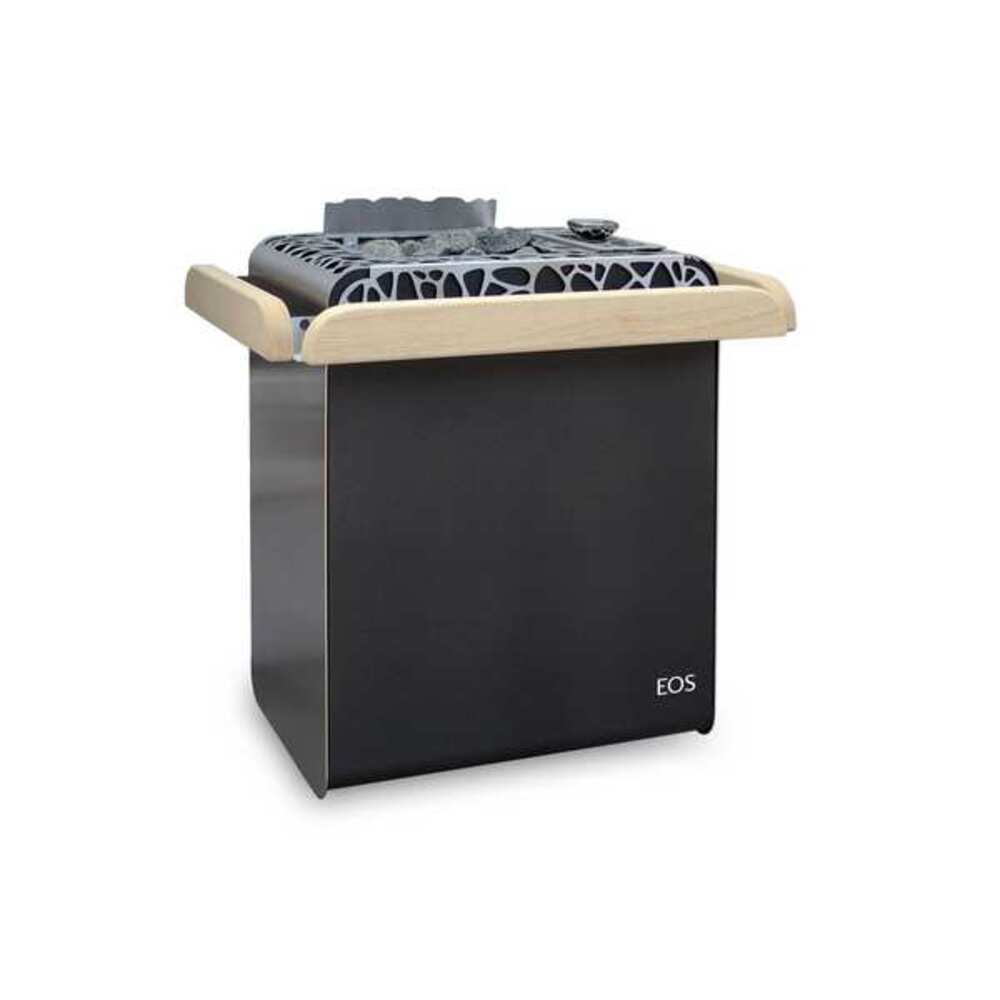

EOS Bi-O Organic W

Description

The new wall-mounting heater series with innovative design.

High-quality sauna heater with integrated vaporizer for flexible climates. EOS Bi-O Organic W impresses with its unique futuristic design. With the asymmetrical cut-outs in the top cover for air circulation and the curved edges, it is an absolute highlight in every sauna cabin.

The combination of brushed stainless steel and anthracite pearl effect finish on the outer shell underlines the modern character.

Vaporizer, 2,0 kW with approx. 5 l water tank - manual filling. Dry-run protection with acoustic alarm.

Rock store fits approx. 20 kg stones.

Your Advantages

  • Wall-mounting heater with innovative design for flexible climate settings such as dry Finnish sauna, mild steam sauna.
  • Optimal relation between stone volume and air convection system for fast heat-up times and powerful water infusions.
  • The asymmetrical cut-outs in the top cover not only ensure optimal air convection, but also give the sauna heater its unique design.
  • The combination of brushed stainless steel and anthracite pearl effect finish on the outer shell underlines the modern character.

Model Overview

Power

Item no.

6,0 kW

947672

7,5 kW

947673

9,0 kW

947674

10,0 kW

947891

10,5 kW

947675

Technical Specifications

Electrical connection

400 V 3N ~ 50/60 Hz

Power vaporizer

2,0 kW

Fuse protection (control unit)

3 x 16 A

Dimensions H/W/D, in cm

650 / 500 / 385

For sauna cabin size (6,0 / 7,5 / 9,0 / 10,5 kW)

6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³

Min. size of air intake and outlet (6,0 / 7,5 / 9,0 / 10,5 kW)

35 x 4 cm / 35 x 5 cm / 35 x 6 cm / 35 x 6 cm

Weight without stones and packaging (6,0 / 7,5 / 9,0 / 10,5 kW)

27 kg / 27,5 kg / 28,0 kg / 28,5 kg

Stone filling

20 kg

Power extension needed

no / PEB 10 (only 10,5 kW)
