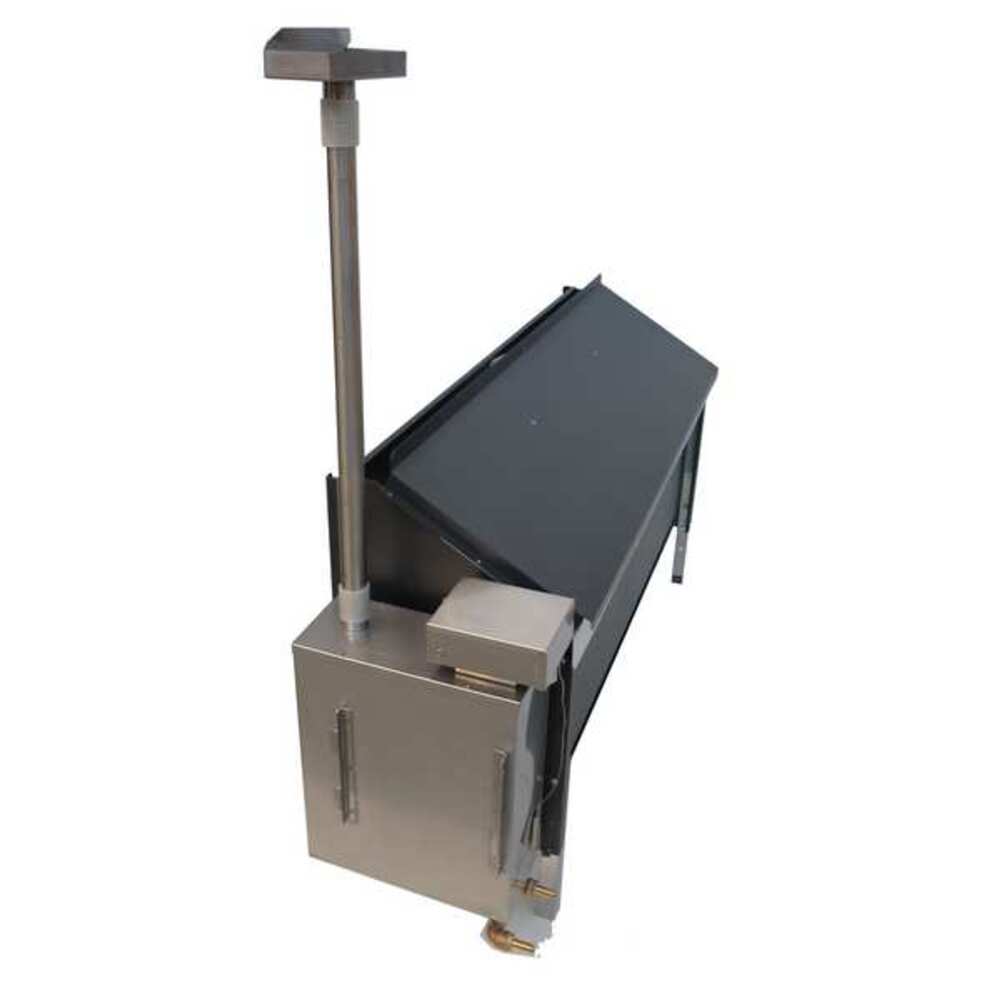

EOS Bi-O Invisio

Optional additional vaporizer for the underbench sauna heater series EOS Invisio.

The external vaporizer turns every EOS Invisio sauna heater into a “Bi-O” version for a flexible sauna climate from hot and dry to mild and humid. Suitable for private and commercial operation. The vaporizer can be mounted on the left and on the right-hand side, and is available with 2,0 kW and 3,0 kW power.

The sauna heater is not included!

The water tank is made of high-grade stainless steel and fits approx. 10 l water. Includes stainless steel pipe with steam outlet at the top to provide the steam exit along the top edge of the screen wall. With dry-run and overheating protection with acoustic alarm.

For automatic water filling, an optionally available FWA01 Compact top-up device is required! Thanks to the twin nipple, it is possible to connect the FWA01 top-up device and the drain valve at the same time.

Suitable models:

• EOS Invisio Mini
• EOS Invisio Midi
• EOS Invisio XL

• External vaporizer for all EOS Invisio range sauna heaters.

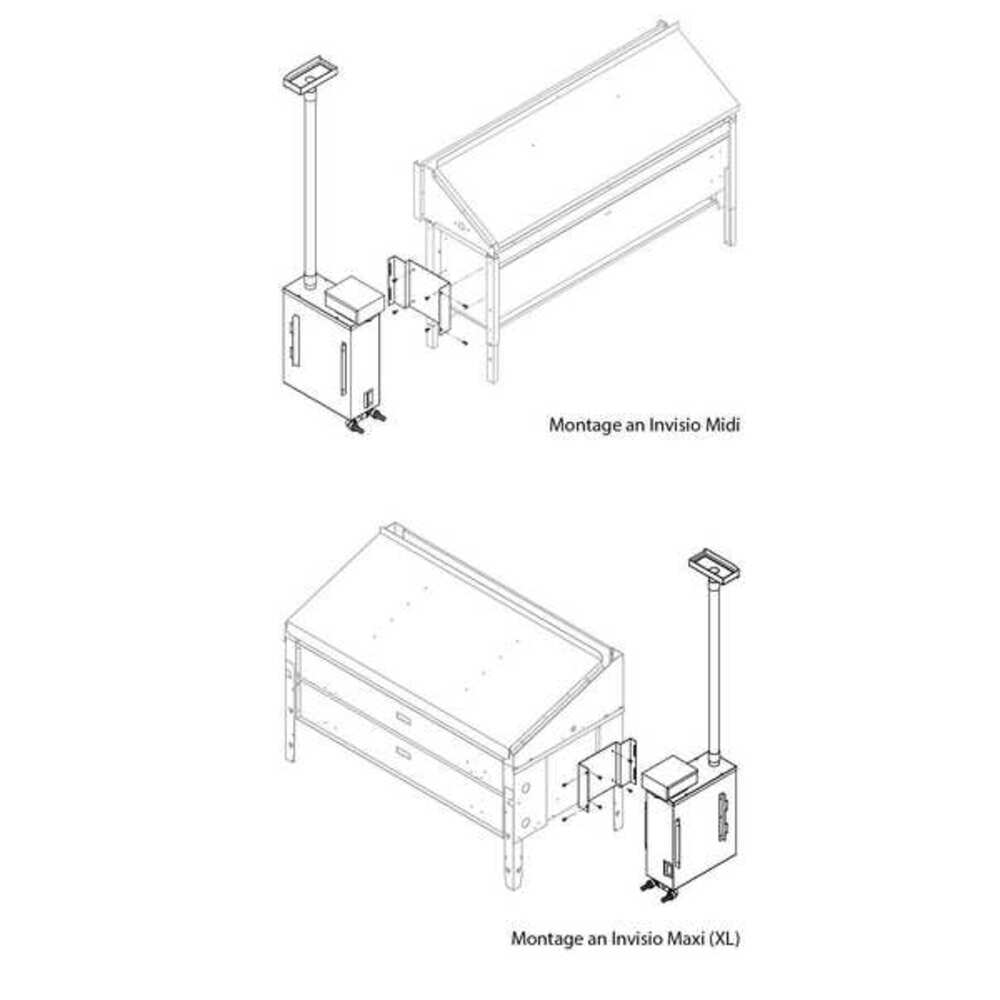

• Can be mounted on the left / right side. Can also be retrofitted at a later time.
• Available with 2,0 kW and 3,0 kW power output.
• Includes stainless steel steam output pipe with herbs and essence holder - steam injection at the top edge of the partition wall for optimal and quick distribution.
• The steam exit tray can be mounted at various heights.
• Manual water filling. Automatic water filling possible with the optional FWA01 top-up device.
• Dry run protection. Made of stainless steel.
• Double drain nozzle facilitates simultaneous connection of the top-up device and water drain tap.
