EOS Bi-O Cubo
Description
Description
Discontinued model
Successor model available in a new design:
EOS Bi-O Cubo 2
Your Advantages
- Flexible sauna climate settings.

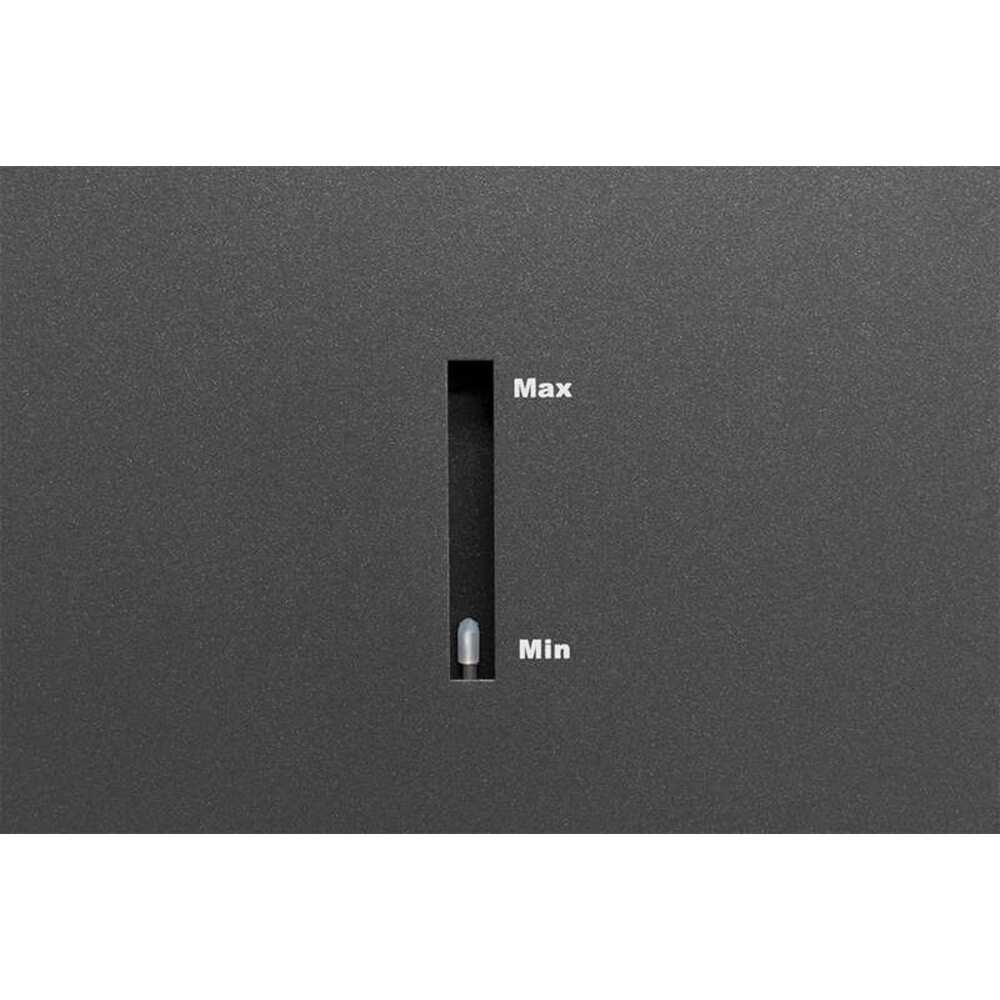

- 2 kW vaporizer with 9 l stainless steel water tank.
- Innovative construction - vaporizer placed under the heater, which ensures a very space-saving size - 40 x 39,5 cm.
- Extra-large essence holder mounted by the rock store.
- Recessed terminal box - ideal for installations in front of glass panels.
- Modern design floor-standing combi-heater for private and commercial sauna cabins.
- Contemporary straight-lined design with brushed stainless steel top and outer shell in anthracite pearl effect finish.
- Service-friendly construction: rock store above the heating elements for improved air convection, longer lifetime of heating elements - replacement of elements without unloading the rocks.
- Rock store fits approx. 25 kg stones.
Model Overview
Power | Item no. |
7,5 kW | 945922 |
9,0 kW | 945923 |
10,0 kW | 947883 |
10,5 kW | 945924 |
12,0 kW | 945925 |

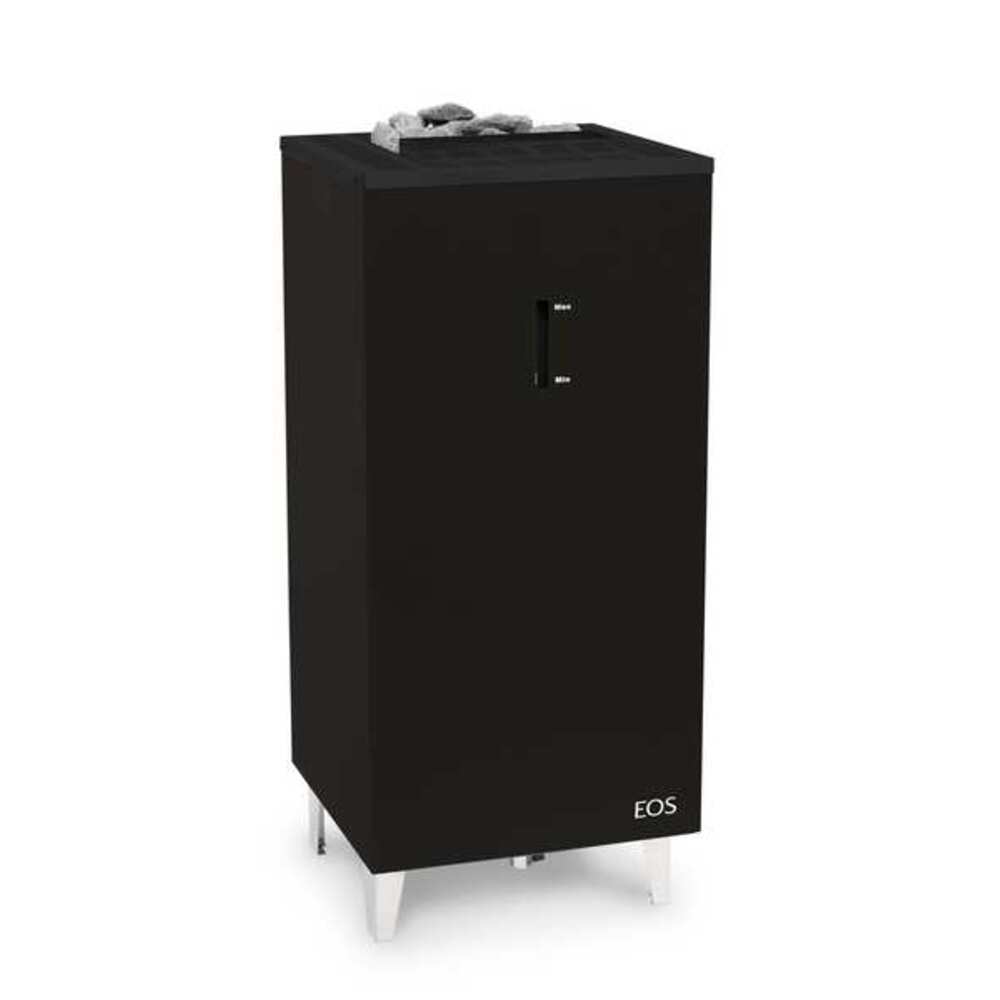

7,5 kW - black* | 947471 |
9,0 kW - black* | 947276 |
10,0 kW - black* | 947884 |
10,5 kW - black* | 947472 |
12,0 kW - black* | 947277 |
Technical Specifications

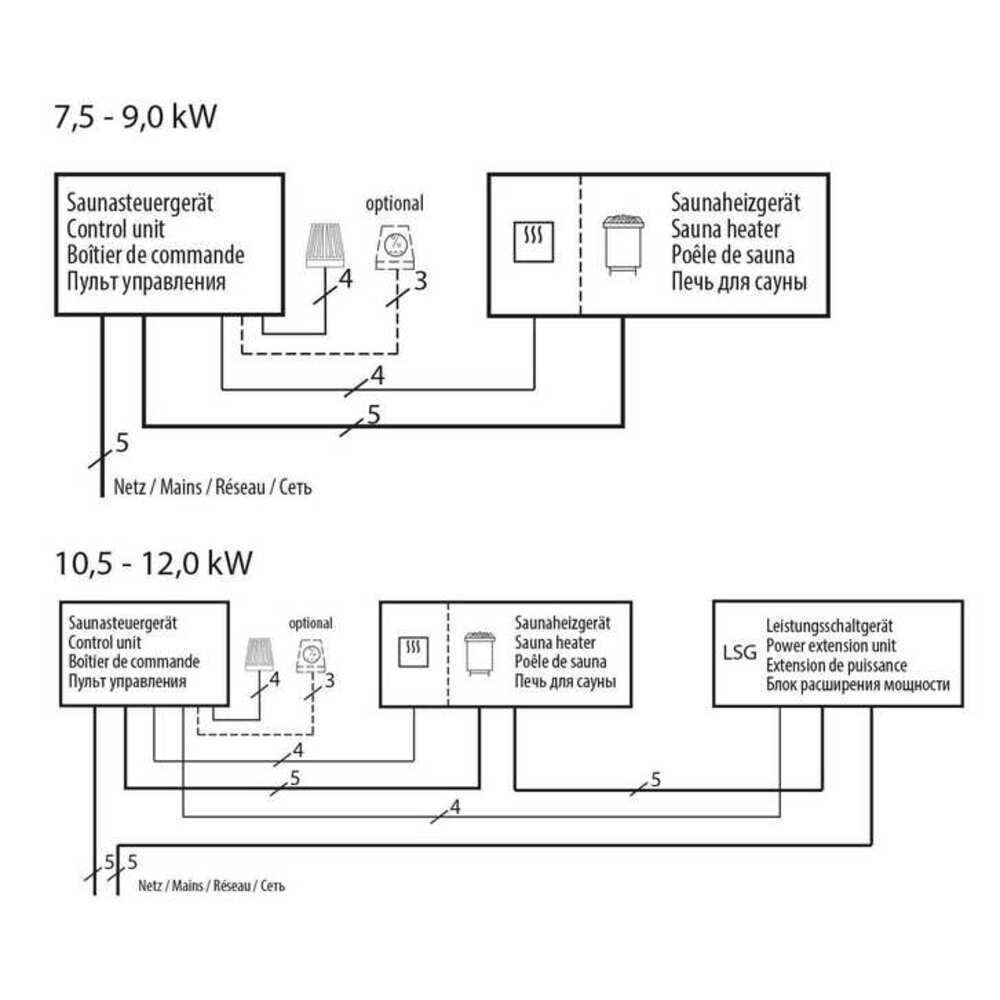

Electrical connection | 400 V 3N ~ 50/60 Hz |
Power Vaporizer (7,5 / 9,0 / 10,5 / 12,0 kW) | 2,0 kW / 2,0 kW / 3,0 kW / 3,0 kW |
Fuse protection (control unit) | 3 x 16 A |
Fuse protection (PEB) | no / 3 x 16 A (only 10,5 and 12,0 kW) |
Dimensions H/W/D, in cm | 95 / 40 / 39,5 |
For sauna cabin size (7,5 / 9,0 / 10,5 / 12,0 kW) | 7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³ / 14 - 18 m³ |
Min. size air inlet and outlet (7,5 / 9,0 / 10,5 / 12,0 kW) | 35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 7 cm |
Weight withouth rocks | 33 kg |
Stone filling | 25 kg |
Power extension required | no / PEB 10 (only 10,5 and 12,0 kW) |
